Techne Analogue Dri-Block Heaters (DB-2A, DB-3 & DB-3A)


Techne® Dri-Block® heaters have been providing a safe, dry, constant temperature source in the laboratory for 50 years, offering market-leading choice, flexibility and specification.

Dri-Block® heaters are a source of precision temperature control for general, routing applications and sensitive analytical procedures particularly suited to microbiology and clinical laboratories.

They are designed for precise heating of test-tubes, microcentrifuge tubes, cuvettes and microtitre plates. Techne® Dri-Block® heaters cover the temperature range from ambient +5°C to 100°C or 200°C (depending on model) using machined aluminium alloy Dri-Block® inserts as the heat transfer medium.

Independent indicator lights indicate mains power, heater action and over-temperature cut-out. An On/Off switch is mounted on the rear panel, together with the mains connector and a fuse holder.

Key Features

  Small, light, compact footprint - flat top surface allows units to be stacked in storage.
  Can hold any combination of aluminium insert blocks, depending on the model chosen.
  High quality, precision-engineered aluminium blocks provide excellent thermal contact.
  Versatile range of interchangeable heating blocks to fit all popular sample tubes and plates.

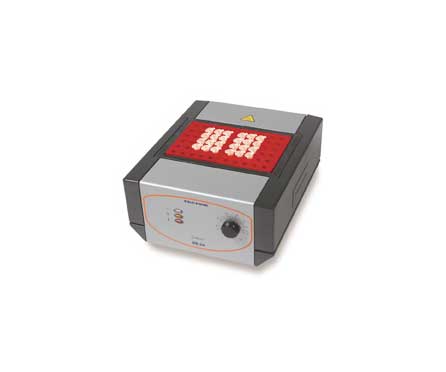

DB-2A

  Small, light and stackable with a compact footprint.
  Can hold up to 2 aluminium insert blocks or one 96-well plate block.
  Temperature setting is by a calibrated dial.
  Temperature range from ambient to 100°C.
  Fast heat-up rate: 30°C to 100°C in just 12 minutes.
  Temperature stability at 40°C: ± 0.05°C.


Data Sheet



DB-3

  The DB-3 is designed to hold up to 3 aluminium insert blocks or one 96-well plate block.
  Temperature setting is by a calibrated dial.
  Temperature range from ambient to 100°C.
  Fast heat-up rate: 30°C to 100°C in just 18 minutes.
  Temperature stability at 40°C: ± 0.05°C.

DB-3A

  Temperature range from ambient to 200°C for higher temperature applications.
  Can hold up to 3 aluminium insert blocks or one 96-well plate block.
  Temperature setting is by a calibrated dial.
  Powerful heater for fast heat-up rate: 30°C to 200°C in just 30 minutes.
  Temperature stability at 40°C: ±0.1°C.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
