This product is now obsolete. To see the current Techne range, please click here.

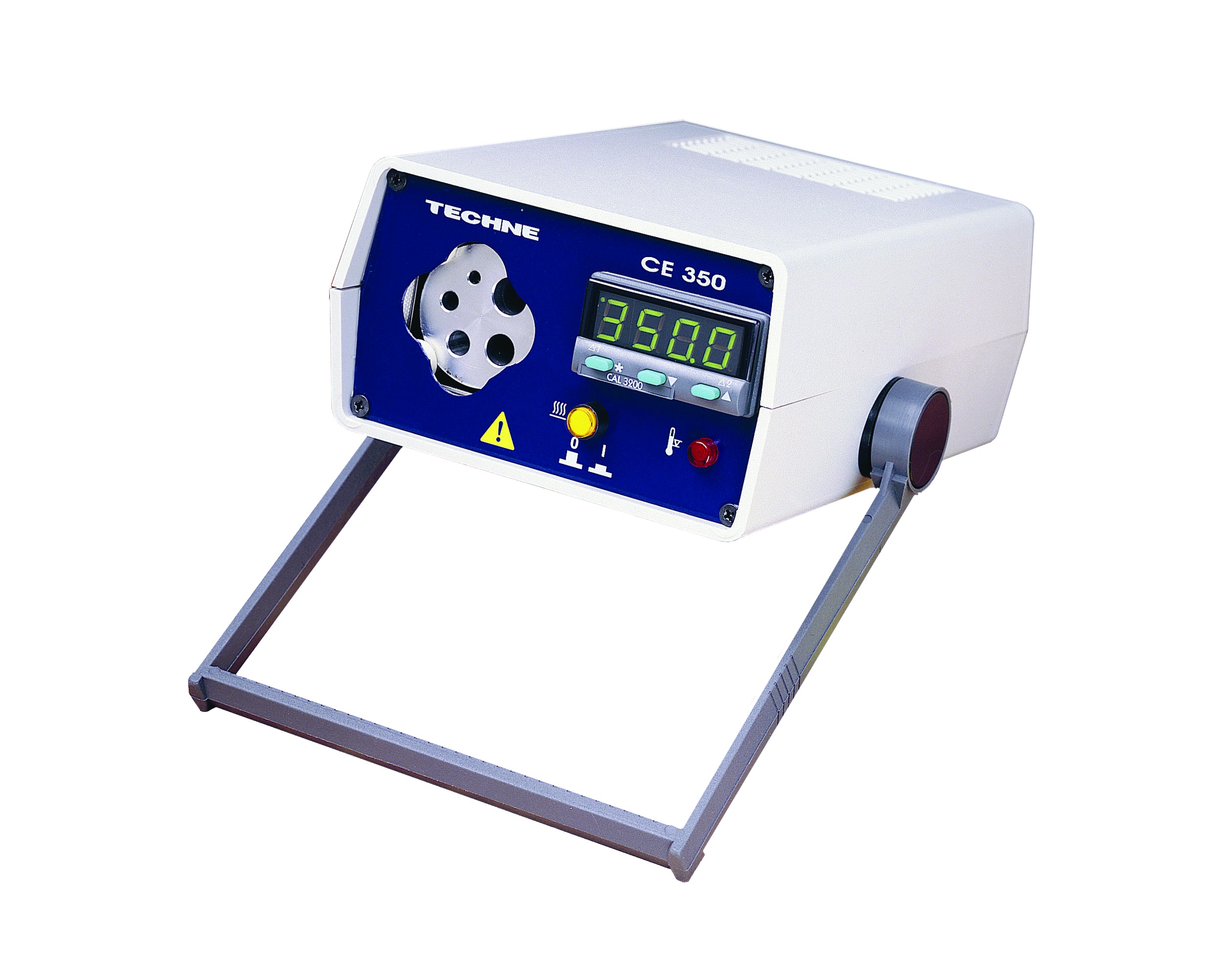

The CE-350 is a low-cost alternative to the Tecal 425 models where routine checking of RTD and
thermocouples is required.
For some applications, it is important that the unit is very portable (the CE-350 weighs only
1.5kg) and can calibrate the sensors as quickly as possible (can heat and cool over the temperature
range in a matter of minutes).
Typical applications where the CE-350 can be used are in checking fire alarm detectors, industrial
ovens, dryers, etc.
Large block in 12 formats with custom options also available
Maximum temperature 350?degC
An independent over temperature cut-out
Temperature sensor burnout protection
Separate heater on/off switch for fast cool down without changing
Indicators for over temperature cut-out and heater power
IS0 9001 and CE marked
Three year warranty
Calibration depth 101 mm
For a larger view, please click on the photo above.
FCE350AD - 4 x 6mm A 230V
FCE350AP - 4 x 6mm A 120V
FCE350BD - 1 x 10mm, 8mm, 6mm, 4.5mm 3mm B 230V
FCE350BP - 1 x 10mm, 8mm, 6mm, 4.5mm 3mm B 120V
FCE350CD - 2 x 6mm, 2 x 10mm C 230V
FCE350CP - 2 x 6mm, 2 x 10mm C 120V
FCE350DD - 4 x 1/4” D 230V
FCE350DP - 4 x 1/4” D 120V
FCE350ED - 1 x 3/8”, 5/16”, 1/4”, 3/16”, 1/8” E 230V
FCE350EP - 1 x 3/8”, 5/16”, 1/4”, 3/16”, 1/8” E 120V
FCE350FD - 2 x 1/4” 2 x 3/8” F 230V
FCE350FP - 2 x 1/4” 2 x 3/8” F 120V
6103526 - Soft carry case
