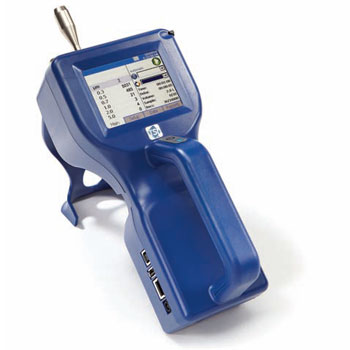

TSI AEROTRAK Handheld Particle Counter

Model 9306


The TSI AEROTRAK 9306 Handheld Particle Counter offers the most features and flexibility for customers interested in versatile handheld particle contamination monitoring. The Model 9306 features an ergonomic handle with thumb controls, for easy one-hand operation.

The 8.9-cm color touch screen interface makes it easy to configure and operate. The Model 9306 can generate Pass/Fail reports for ISO 14644-1, EU GMP Annex 1, and FS209E. The internal memory can store up to 10,000 sample records of particle count data which can be conveniently viewed on screen, downloaded using TrakPro Lite Software, or printed directly to an optional external printer.

The Model 9306 complies with all the stringent requirements set forth in ISO 21501-4. These particle counters are calibrated with NIST traceable PSL spheres using TSIís worldclass Classifier and Condensation Particle Counters, the recognized standard for particle measurements. Backed with a standard two-year warranty and TSIís long-standing reputation for high quality, there are no other handheld particle counters like it on the market today.


Data Sheet



Features and Benefits

  Complies with all requirements of ISO 21501-4
  0.3 to 25 μm size range
  2.83 L/min (0.1 CFM) flow rate
  Measures up to six channels of simultaneous data
  Model 9306-V2 provides unique variable binning option
  Integrated handle for one hand operation
  Removable, rechargeable Li-ion battery
  Long life laser diode
  USB and Ethernet output
  10,000 sample record storage, 250 locations
  Local or remote configuration via web browser
  Provides Pass/Fail reporting on ISO 14644-1, EU GMP, and FS209E
  Compatible with TRAKPRO Lite and FMS 5 software packages
  Optional Temperature/RH sensor available

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
