HomeEnvironmentalAir Particles and Velocity Instruments › TSI Models 9310 & 9510 AEROTRAK Portable Particle Counter

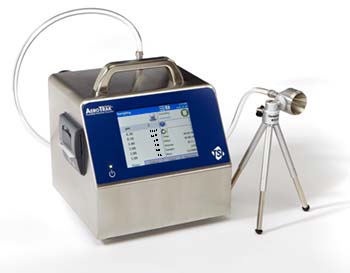

TSI AEROTRAK Portable Particle Counter

Models 9310 & 9510


The TSI AEROTRAK 9310 and 9510 Portable Particle Counters offer best-in-class features and versatility. They provide a 28.3 L/min (1.0 CFM) flow with 0.3 or 0.5 μm sensitivity.

Compatible with TSIís accurate ventilation probes that measure air velocity/temperature/RH, these products provide you with a complete solution for your certification needs.

These particle counters can generate pass/fail reports for ISO 14644-1, EU GMP Annex 1, and FS209E. These products can be used as a stand-alone particle counter or integrated into a facility monitoring system like TSIís FMS 5.

Both Models 9310 and 9510 comply with all the stringent requirements set forth in ISO 21501-4. These particle counters are calibrated with NIST traceable PSL spheres using TSIís world-class Classifier and Condensation Particle Counters, the recognized standard for particle measurements. Backed with a standard two-year warranty and TSIís long-standing reputation for high quality, there are no other particle counters like it on the market today.


Data Sheet



Features and Benefits

  AeroTrak 9310 particle counter: 0.3 to 25 um
  AEROTRAK 9510 particle counter: 0.5 to 25 um
  Up to six channels of simultaneous data
  28.3 L/min (1.0 CFM) flow rate
  Complies with all requirements of ISO 21501-4
  10,000 sample record storage, 999 locations
  Ethernet and USB outputs
  Industryís loudest audible alarm
  Easy icon-driven touch screen operation
  Reports for ISO-14644-1, EU GMP Annex 1, and FS209E
  Allows storage and recall of specific tests/recipes
  Displays up to three environmental parameters
  Stainless steel enclosure
  Lightweight
  Stand-alone or integrate into a facility monitoring system
  Clean room classification down to ISO Class 2

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
