R27 - Remote Manual and Auto/Manual Loading Stations


Features

 Reliable, durable
 Visual display of set pressure
 Precise regulation
 Excellent setting sensitivity General Description

Remote manual and auto/manual loading stations are designed for the remote control of pneumatic systems using a manostat regulator and different combinations of air switching valve and pressure gauge.

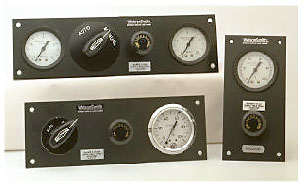

Manostat Remote Manual and Auto/Manual Loading Stations

Functional Symbol

Technical Data
Pneumatic
*Output Signal See ordering information. Minimum outlet pressure 0.1-0.14bar (1.5-2psig)
*Air Supply Oil free, dry air or other dry gases, filtered to better than 25 microns; at least 0.2bar (3psig) above output pressure to a maximum of 10bar (150psig, 1000kPa)
*Flow Capacity Up to 300nl/min (10scfm). High relief version available for applications requiring a rapid exhaust
*Air Consumption 0.2 l/min (0.006scfm) at 1bar (15psig);
0.3 l/min (0.01scfm) at 1.7bar (25psig);
0.6 l/min (0.02scfm) at 4bar (60psig);
1.2 l/min (0.04scfm) at 8bar (120psig);
(typical values at maximum supply pressure)
*Response Time less than 0.2 seconds for 50% load change
*Regulation Accuracy % output change for 1bar/15psi supply pressure change at mid-range output; 0.1% (0.14bar/2-25psi), 0.05% (0.14-4bar/2-60psi), 0.02% (0.14-8bar/2-120psi)
*Sensitivity Better than 0.3mbar (0.005psi)
*Hysteresis and Repeatability Typically less than 0.05% setting at mid-range
*Temperature Effect Typically better than +/-1% change of full span between -20°C and +70°C
*Connections 1/4" NPT female standard (plus two integral 1/4" NPT gauge ports); others on request
Model Types
(With panel mounting plate, 3mm thick, black painted finish with corner fixing straps)
*SP Manostat regulator plus 63mm diameter pressure gauge (phospher bronze Bourdon tube to BS1780); horizontal/vertical mounting
*SP2 As SP model but with a rotary 2 position, 3-way auto/manual valve; horizonta/vertical mounting; pressure gauge indicates manual set pressure only
*SP2G2 As SP2 model but with a second pressure gauge to measure auto signal pressure before switching; horizontal/vertical mounting
*SP2G2W Weatherproof SP2G2; surface/post mounting (yoke supplied suitable for a 50mm/2" diameter post)
Physical
*Operating Temperature -20°C to +70°C
*IP Rating IP65
*Vibration The unit is unaffected by moderate vibration
*Material of Construction Zinc diecasting passivated and epoxy painted. Berylium copper capsule; Nitrile diaphragms
note: a small pressure (< 2psig, 0.14bar) will show at the lower end of dial manostats gauge scale (due to regulator servo operation)

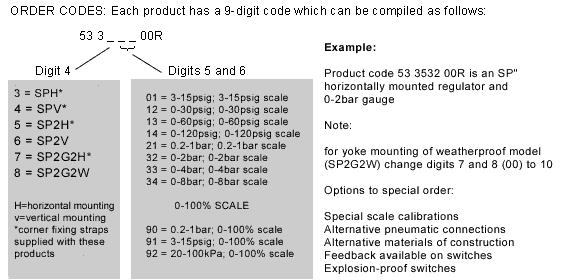

Ordering Information


333200R SPH/0-2BAR HORIZONTAL
339100R SPH/3-15PSI/0-100% HORIZONTAL
349100R SPV/3-15PSI VERTICAL
359000R SP2H/0.2-1BAR/0-100% HORIZONTAL
360100R SP2V/3-15PSI VERTICAL
369100R SP2V/3-15PSI/0-100%/VERTICAL VERTICAL
371201R SP2G2H/0-30PSI HORIZONTAL/CAPTURED BLEED
372100R SP2G2H/0.2-1BAR HORIZONTAL
379000R SP2G2H/0.2-1BAR/0-100% HORIZONTAL/DUALSCALE
379100R SP2G2H/3-15PSI/0-100% HORIZONTAL/DUALSCALE
379101R SP2G2H/3-15PSI/0-100% HORIZONTAL/CAPTURED BLEED
382100R SP2G2V/0.2-1BAR VERTICAL
390100R SP2G2W/3-15PSI WEATHERPROOF BOX
390110R SP2G2W/3-15PSI WEATHERPROOF BOX/YOKE MOUNTING
391200R SP2G2W/0-30PSI WEATHERPROOF BOX
391300R SP2G2W/0-60PSI WEATHERPROOF BOX
391400R SP2G2W/0-120PSI WEATHERPROOF BOX
392100R SP2G2W/0.2-1BAR WEATHERPROOF BOX
393200R SP2G2W/0-2BAR WEATHERPROOF BOX
399000R SP2G2W/0.2-1BAR/0-100% WEATHERPROOF BOX
399010R SP2G2W/0.2-1BAR/0-100% WEATHERPROOF BOX/YOKE MTG/DUALSCALE
399100R SP2G2W/3-15PSI/0-100% WEATHERPROOF BOX/DUALSCALE
399110R SP2G2W/3-15PSI/0-100% WEATHERPROOF BOX/YOKE MTG/DUALSCALE
