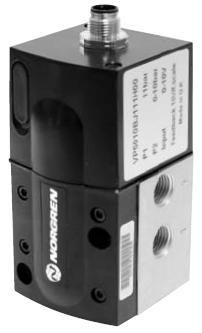

Watson Smith VP50 3-Way Proportional Pressure Control Valve

  Closed-loop air piloted proportional pressure control valve
  High flow
  Excellent performance characteristics
  Fast response time
  Adjustable gain
  Adjustable pressure range
  Low power consumption
  Feedback signal
  Manifold mountable

Technical Specifications

  Medium: Compressed air filtered to 5 μm, dry and non-lubricated
  Operation: Air piloted spool valve with integrated electronic pressure control
  Output (nominal) pressure: 0 to 2 bar, 0 to 6 bar, 0 to 10 bar (or PSI equivalent)
  Supply pressure: Minimum 2 bar above maximum output required, 14 bar max.
  Supply sensitivity: Better than 0,75% span output change per bar supply pressure change
  Flow: Up to 1400 N l/min (see characteristic curves)
  Air consumption: < 5 N l/min
  Ambient temperature: 0C to +50C. Contact our technical service for use below +2C
  Temperature effect: Typically better than 0,03% of span/C for span and zero over operating range
  Response time: < 80 ms (from 10 to 90% of output pressure into a 0,1 litre load)
  Degree of protection: IP65 in normal operation
  Linearity: < 1%
  Hysteresis: < 1%
  Vibration immunity: < 3% output shift for 3 g 10-150 Hz
  Weight: 0,63 kg
  Materials: Body: aluminium, lid and end cover: zinc diecast, nylon



Find out more by reading our data sheet below:


Data Sheet
Manual

Please note, this product is not yet RoHS compliant.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
