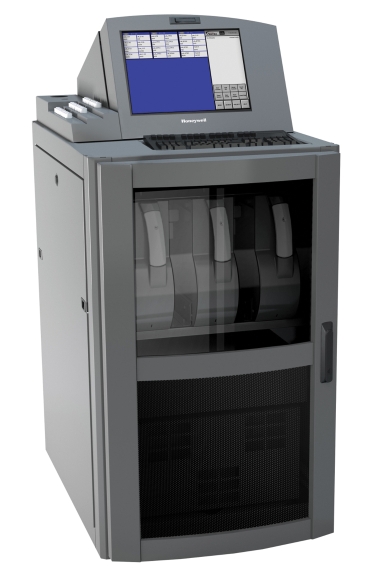

Zareba Vertex M Hazardous Gas Monitor


Vertex M by Zareba is a continuous hazardous gas monitoring unit capable of monitoring up to 24 points using 3 analysers in a small yet unique footprint.

The Vertex M in an inexpensive and economically cost effective monitoring unit with sampling points that can be taken up to 400 feet (121m) from the monitor and routed to more than one analyser.

The rack comes completely installed ready for easy in-field expansion up to 24 points. Integrated into it is also a back-up of the pump and power supplies. The data acquisition center is complete with two hot swappable 60 gigabyte hard drives. Built in read/write CD with an extremely high speed modem, touch keypad for easy access and furthermore an LCD Touch monitor. Using surface wave technology the Vertex M has 1024 x 768 resolution with an added advantage of an antiglare surface.

The 8-point Chemcassette analysers are universal easy to configure and can be done so on site. Each 8-point Pyrolyzer analyser for NF3 takes the space of two universal analysers. Maximum number of Pyrolyzers in one rack is one (1).

Optional communication capabilities include LonWorks, DeviceNet, Profibus, ControlNet, Modbus Plus, DF1 interface which is configurable for RS 485, RS 422 or RS 232, and isolated 4-20mA.

Features & Benefits

  Longer monitoring life with extended tapes (90 days)
  Touch screen for easy data access
  No dynamic calibration required

Quick Specs

  Power requirements: 110 or 230 VAC
  Operating temperature: 59° to 95°F (15° to 35°C)
  Operating humidity: 20-65% RH


Brochure
Specifications

Ordering Information


Vertex M Configurations

1290-0074 Vertex M with one (1) Universal Chemcassette analyser: This configuration contains a Vertex M Base Rack (220 VAC) with one (1) universal Chemcassette® analyser, the data acquisition center, redundant pumps and power supplies, touch screen keyboard, all cable management and ancillary support necessary to install up to two (2) additional analysers, and an accessory kit. Accessory Kit includes backup CDs of all appropriate software, electronic manual, installation drawings, auxiliary analyser key and 50 feet (15m) of exhaust tubing
1290-0075 Vertex M with one (1) Pyrolyser analyser: This configuration contains a Vertex M Base Rack (220 VAC) with one (1) pyrolyzer analyser, the data acquisition center, redundant pumps and power supplies, touch screen keyboard, all cable management and ancillary support necessary to install up to one (1) additional analysers, and an accessory kit. Accessory Kit includes backup CDs of all appropriate software, electronic manual, installation drawings, auxiliary analyser key and 50 feet (15m) of exhaust tubing
1290-0072 Vertex M with one (1) Universal Chemcassette analyser: This configuration contains a Vertex M Base Rack (110 VAC) with one (1) universal Chemcassette® analyser, the data acquisition center, redundant pumps and power supplies, touch screen keyboard, all cable management and ancillary support necessary to install up to two (2) additional analysers, and an accessory kit. Accessory Kit includes backup CDs of all appropriate software, electronic manual, installation drawings, auxiliary analyser key and 50 feet (15m) of exhaust tubing
1290-0073 Vertex M with one (1) Pyrolyzer analyser: This configuration contains a Vertex M Base Rack (110 VAC) with one (1) pyrolyzer analyser, the data acquisition center, redundant pumps and power supplies, touch screen keyboard, all cable management and ancillary support necessary to install up to one (1) additional analysers, and an accessory kit. Accessory Kit includes backup CDs of all appropriate software, electronic manual, installation drawings, auxiliary analyser key and 50 feet (15m) of exhaust tubing

Vertex M Low Level HF Activation

1295-0541 Low Level Hydrogen Fluoride (HF) Licensed Activation, per rack (for countries requiring a license)
1290-0084 Low Level Hydrogen Fluoride (HF) Licensed Activation, per rack (for countries not requiring license)

Vertex M Base Rack

1290-0071 220 VAC Vertex M Base Rack
1290-0066 110 VAC Vertex M Base Rack

Vertex M Analysers

1291-1001 Universal Chemcassette® analyser: Each analyser can monitor up to eight (8) sample points
1291-2001 Pyrolyzer analyser: This Analyser is specially designed to monitor Nitrogen Trifluoride (NF3) via conversion to Hydrogen Fluoride (HF) by an integral pyrolyzer. Each analyser can monitor up to eight (8) sample points. The Pyrolyzer analyser takes the place of two (2) adjoining Universal Chemcassette® analysers

Serial Communication Interfaces

1295-0329 DeviceNet Interface
1295-0328 LonWorks Interface
1295-0343 DF1 Interface
1295-0275 Profibus Adapter
1295-0330 Modbus Plus Interface (Note: Not compatible with Modbus/RTU)
1295-0394 ControlNet Interface
1295-0519 Ethernet/CIP Interface
1295-0520 Modbus/TCP Interface
1290-0078 4-20 mA Interface

Relay Options

1290-0076 16 Channel Non-Isolated Relay Option Total of sixty-four (64) factory installed and field programmable Form A relays. Within each group of eight relays one side connected to a common terminal
1290-0077 8 Channel Isolated Relay Option Total of thirty-two (32) factory installed and field programmable Form A relays. Each contact totally isolated

Remote Software Options

1295-0344 Active Display Server: Server software (installs on Vertex M): Connect one or more remote PCs to a Vertex M for remote viewing and control. Required to enable Active Display Floating Client Full Control. One per Vertex M rack required for remote operation
1295-0233 Active Display Floating Client Full Control License: Client software (installs on PC): View and control the Vertex M interface from a single remote location at a time. One per remote viewing session is required. (Must order with 1295-0344)

Chemcam

1295-0230 Chemcam (one per analyser). Must be factory installed.

Sample Line Integrity

1295-0510 The Sample Line Integrity Kit for the Vertex M enables an automatic scheduled pressure test of each sample line to confirm integrity. Kit includes a software license, 8 check valves, and the associated accessories for a single analyser.

Accessories

1295K0523 Pack (25) stoppers for unused sample ports on top manifold of Vertex M
1290K0064 Floor Mounting Option

Sample Tubing

0235-0157 Tubing, FEP Teflon 0.156" I.D.x 0.250" O.D. - 400 ft roll (121m) Standard tubing for Vertex M sample lines. The FEP Teflon (medium wall) tubing is less prone to kinking when turning a corner. The smaller I.D. means improved transport time over thin wall tubing
102628 Tubing, FEP Teflon 0.190" I.D. x 0.250" O.D - 400 ft roll (121m) Alternate tubing for VertexTM samples lines. Used with Vertex M where longer sample line length for multiple analysers are required. Consult the transport time chart in the VertexTM Technical Handbook for additional information
0235-0109 Tubing, FEP Teflon 0.190" I.D. x 0.250" O.D. - 1000 ft roll (304m) Alternate tubing for VertexTM samples lines. Used with Vertex M where longer sample line length for multiple analysers are required. Consult the transport time chart in the VertexTM Technical Handbook for additional information

Duct Adapters

1283K1090 Duct adapter for 1/4" O.D. tubing for 4-16" round ducts

External Particulate Filters

780248 End of line particulate filter. For use as end of line filter for non-corrosive gases
1991-0147 End of line particulate filter for corrosive gases, disposable. This disposable filter provides protection against particulate build up in the sample line when monitoring for corrosive gases.
1830-0055 End of line particulate filter for corrosive gases, reusable. This reusable filter housing provides protection against particulate build up in the sample line when monitoring for corrosive gases. Replaceable filter element (P/N 0235-1072) purchased separately
0235-0095 Union fitting - use to connect disposable filter to end of line
0235-1072 Replacement "corrosive" filter elements (pk 100). For use in 1830-0055 filter housing

External Interferent Filters

1295K0497 H2S in line scrubber filter (1 per individual inlet line). Up to 3 months use



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
