Zareba Colorimetric Gas Detection Tubes and Pump

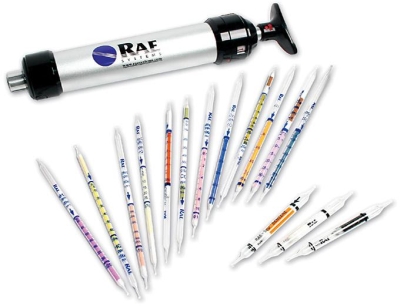

Quick, on-the-spot measurement of a wide range of toxic and combustible gases and vapours has been made possible with the Honeywell colorimetric gas detection tubes.

Easy to read, Honeywell tubes are easy to read, and provide a sharp, clear colour change directly corresponding to the concentration of gas present.

A reliable way to draw samples of an exact volume required for the most accurate measurements is to use the Honeywell piston hand pump which Honeywell tubes are compatible with.

Key Features-Colorimetric Tubes

  Wide assortment of tubes available to detect over 300 gases and vapours
  Easy to use, even in multiple layers of gloves
  Easy-to-read with sharp, clear colour change
  No calibration or other maintenance required

Key Features - Hand Pump (H-LP-1200) (Piston Hand Pump Kit Part Number: H-010-0001-000)

  Ergonomic, durable hand pump
  Solid metal construction with lifetime warranty
  Springless piston design accurately draws
  50 or 100 cc volumes


Typical Applications

  Oil and gas
  Chemicals and petrochemicals
  Agriculture and pest control
  Food and beverage production
  Environmental protection
  Fire service
  HazMat response
  National security
Find out more by reading our data sheet below:


Data Sheet

Ordering Information

Gas Type Standard Range Extended Range Order Number Shelf Life
Acetone (C3H6O) 0.1 - 2% 0.05 - 4% H-10-111-40 24 - 27
Amines 0.5 - 10 ppmv 0.25 - 20 ppmv H-10-132-10 12 - 15
Ammonia (NH3) 1 - 30 ppmv 0.5 - 60 ppmv H-10-100-05 24 - 27
Ammonia (NH3) 5 - 100 ppmv 2.5 - 200 ppmv H-10-100-10 24 - 27
Ammonia (NH3) 10 - 260 ppmv 5 - 520 ppmv H-10-100-12 24 - 27
Ammonia (NH3) 25 - 500 ppmv 12 - 1,000 ppmv H-10-100-15 24 - 27
Ammonia (NH3) 1 - 15% 0.5 - 30% H-10-100-40 24 - 27
Benzene (C6H6)* 0.5 - 10 ppmv selective 0.25 - 30 ppmv H-10-101-01 12 - 15
Benzene (C6H6)* 5.0 - 40 ppmv selective 25 - 200 ppmv H-10-101-10 12 - 15
Benzene (C6H6) 5 - 100 ppmv 2.5 - 200 ppmv H-10-101-20 12 - 15
Butadiene (1,3-Butadiene) 0.5 - 5 ppmv 0.25 - 10 ppmv H-10-135-04 24 - 27
n-Butane (C4H10) 25 - 1,400 ppmv 12.5 - 2,800 ppmv H-10-137-30 24 - 27
Butanone (MEK) 0.02 - 0.6 % 0.01 - 1.8 % H-10-113-20 24 - 27
Carbon dioxide (CO2) 300 - 5,000 ppmv 150 - 10,000 ppmv H-10-104-30 24 - 27
Carbon dioxide (CO2) 0.05 - 1% 0.025 - 2% H-10-104-40 24 - 27
Carbon dioxide (CO2) 0.25 - 3% 0.125 - 6% H-10-104-45 24 - 27
Carbon dioxide (CO2) 1 - 20% 0.25 - 10% H-10-104-50 24 - 27
Carbon dioxide (CO2) 5 - 40% 1.25 - 20% H-10-104-60 24 - 27
Carbon monoxide (CO) 5 - 100 ppmv selective 2.5 - 300 ppmv H-10-102-18 24 - 27
Carbon monoxide (CO) 5 - 100 ppmv 2.5 - 200 ppmv H-10-102-20 24 - 27
Carbon monoxide (CO) 20 - 500 ppmv 10 - 1,000 ppmv H-10-102-30 24 - 27
Carbon monoxide (CO) 0.2 - 4% 0.05 - 4% H-10-102-45 24 - 27
Chlorine (Cl2) 0.5 - 8 ppmv 0.25 - 16 ppmv H-10-106-10 12 - 15
Chlorine (Cl2) 5 - 100 ppmv 2.5 - 200 ppmv H-10-106-20 12 - 15
Chlorine dioxide (ClO2) 0.25 - 15 ppmv 0.05 - 30 ppmv H-10-130-10 12 - 15
Diesel & jet fuel 0.5 - 25 ppmv N/A H-10-143-10 12 - 15
Ethanol (C2H5OH) 100 - 2,000 ppmv 50 - 200 ppmv H-10-141-30 24 - 27
Formaldehyde (HCHO) 0.1 - 5 ppmv 0.8 - 40 ppmv H-10-121-05 24 - 27
Gasoline (CNHM) 30 - 1,000 ppmv 15 - 2,000 ppmv H-10-138-30 24 - 27
Hydrocarbons (HC) 50 - 1,000 ppmv 25 - 2,000 ppmv H-10-110-30 24 - 27
Hydrogen chloride (HCl) 1 - 20 ppmv 0.5 - 40 ppmv H-10-108-09 24 - 27
Hydrogen chloride (HCl)* 1 - 20 ppmv w/ desiccant 0.5 - 40 ppmv H-10-108-10 24 - 27
Hydrogen chloride (HCl) 20 - 500 ppmv 10 - 1,000 ppmv H-10-108-22 24 - 27
Hydrogen cyanide (HCN) 2.5 - 60 ppmv 1.25 - 120 ppmv H-10-126-10 12 - 15
Hydrogen fluoride (HF) 0.5 - 20 ppmv 0.25 - 40 ppmv H-10-105-10 24 - 27
Hydrogen sulfide (H2S) 0.2 - 3 ppmv 0.1 - 6 ppmv H-10-103-04 12 - 15
Hydrogen sulfide (H2S)* 0.2 - 3 ppmv w/ desiccant 0.1 - 6 ppmv H-10-103-05 12 - 15
Hydrogen sulfide (H2S) 1 - 7 ppmv 0.25 - 3.5 ppmv H-10-103-06 12 - 15
Hydrogen sulfide (H2S) 2.5 - 60 ppmv 1.25 - 120 ppmv H-10-103-10 12 - 15
Hydrogen sulfide (H2S) 0 - 150 ppm 0 - 300 ppm H-10-103-12 24 - 27
Hydrogen sulfide (H2S) 10 - 120 ppmv 5 - 240 ppmv H-10-103-15 24 - 27
Hydrogen sulfide (H2S) 25 - 250 ppmv 12.5 - 500 ppmv H-10-103-18 24 - 27
Hydrogen sulfide (H2S) 50 - 800 ppmv 25 - 1,600 ppmv H-10-103-20 24 - 27
Hydrogen sulfide (H2S) 100 - 2,000 ppmv 50 - 4,000 ppmv H-10-103-30 24 - 27
Hydrogen sulfide (H2S) 0.1 - 2% 0.05 - 4% H-10-103-40 24 - 27
Hydrogen sulfide (H2S) 2 - 40% 0.5 - 20% H-10-103-50 24 - 27
Mercaptans 5 - 120 ppmv 2.5 - 240 ppmv H-10-129-20 12 - 15
Methyl bromide (CH3BR)* 1 - 18 ppmv 0.5 - 36 ppmv H-10-131-10 24 - 27
Methyl bromide (CH3BR)* 20 - 300 ppmv 10 - 600 ppmv H-10-131-30 24 - 27
Nitric acid (HNO3) 1 - 20 ppm 0.5 - 40 ppm H-10-146-20 24 - 27
Nitrogen dioxide (NO2) 0.5 - 30 ppmv N/A H-10-117-10 12 - 15
Nitrogen oxides (NO)* 1 - 50 ppmv 0.5 - 100 ppmv H-10-109-20 12 - 15
Ozone (O3) 0.05 - 0.6 ppmv 0.15 - 1.8 ppmv H-10-133-03 12 - 15
Phenol (C6H5OH) 1 - 25 ppmv 0.5 - 180 ppmv H-10-139-05 18 - 21
Phosphine (PH3) 5 - 50 ppmv 2.5 - 100 ppmv H-10-116-10 12 - 15
Phosphine (PH3) 25 - 500 ppmv 12.5 - 1,000 ppmv H-10-116-20 12 - 15
Phosphine (PH3) 50 - 1,000 ppmv 25 - 2,000 ppmv H-10-116-25 12 - 15
Sulfur dioxide (SO2) 2 - 30 ppmv 1 - 60 ppmv H-10-107-15 24 - 27
Sulfur dioxide (SO2) 5 - 100 ppmv 2.5 - 200 ppmv H-10-107-20 24 - 27
Sulfur dioxide (SO2) 100 - 1,800 ppmv 50 - 3,600 ppmv H-10-107-25 24 - 27
Sulfur dioxide (SO2) 200 - 4,000 ppmv 50 - 2,000 ppmv H-10-107-30 24 - 27
Sulfur dioxide (SO2) 0.2 - 5 % 0.1 - 10 % H-10-107-40 24 - 27
Toluene (C7H8) 10 - 300 ppmv 5 - 600 ppmv H-10-114-20 12 - 15
Trichloroethylene (C2HCl3)* 5 - 100 ppmv 2.5 - 230 ppmv H-10-119-20 12 - 15
Vinyl chloride (CH2:CHCL)* 1 - 20 ppmv 0.5 - 40 ppmv H-10-128-10 24 - 27
Water vapor (H2O) 2 - 10 lbs/MMCF (0.03 - 0.16 mg/L) 1 - 20 lbs/MMCF H-10-120-10 24 - 27
Water vapor (H2O) 6 - 40 lbs/MMCF (0.1 - 0.64 mg/L) 3 - 80 lbs/MMCF H-10-120-20 24 - 27
Water vapor (H2O) 0.05 - 1 mg/L 0.025 - 2 mg/L H-10-120-30 24 - 27
Water vapor (H2O) 1 - 18 mg/L 0.5 - 32 mg/L H-10-120-40 12 - 15
Xylene (C8H10) 10 - 200 ppmv 5 - 400 ppmv H-10-112-20 24 - 27


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
