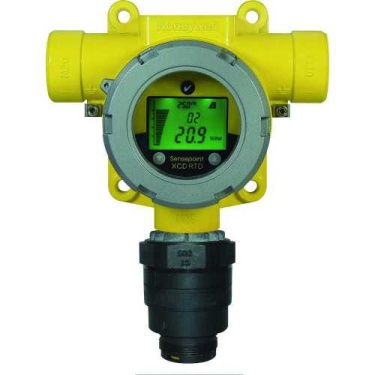

Zareba Sensepoint XCD


The Sensepoint XCD range provides comprehensive monitoring of flammable, toxic and Oxygen gas hazards in potentially explosive atmospheres, both indoors and outdoors. Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit. This enables one-man, non-intrusive operation and reduces routine maintenance time and costs.

A tri-color backlit LCD clearly indicates the unit's status at a glance, even from a distance. A steady green backlight indicates normal operation, flashing yellow indicates fault and flashing red indicates an alarm.

All detectors are supplied pre-configured and include 2 programmable alarm relays, 1 programmable fault relay as well as an industry standard 4-20mA output (sink or source selectable) and Modbus.

The scale, range, relay operation, alarm set point and electronic tag number of the detector can be adjusted using the transmitter's LCD and non-intrusive magnetic switches. Outputs are automatically inhibited during adjustment, thereby reducing the risk of false alarm at the control panel during maintenance.

Sensepoint XCD has an integral mounting plate for surface mounting or can be mounted to a horizontal or vertical pipe using the optional pipe mounting bracket. Electrical installation can be made using either conduit or cable with suitable mechanical protection. Two M20 or ¾"NPT entries are provided (depending on certification). A weatherproof cap is also included for use in the harshest outdoor conditions. Other optional accessories include a sunshade/deluge protection, duct mounting kit and collecting cone.

Sensepoint XCD ensures easy installation and the fastest routine operation by removing the need for hot work permits in hazardous areas. Using easy to replace plug-in sensors, downtime is also reduced and on-going costs are minimized through the use of poison resistant flammable sensors, poison immune infrared Hydrocarbon sensors and patented Surecell™ toxic sensors and Reflex sensor health check.


Data Sheet
Sensepoint XCD Technical Manual
Gas Book Americas
Reflex Technology
SureCell - Next Generation of Sensors
Gas Detection for the Water Treatment Industry
Sensepoint XCD Specifications
Fixed-Point Industrial Fire and Gas Detection Brochure
Fire and Gas Detection for the Petrochemical Industry Brochure
Engineering Specifications
Product Overview Presentation
Training Presentation
Sensepoint XCD RTD Technical Manual

One-Stop Shop

  Flammable (catalytic or infrared), toxic and oxygen versions available
  New and retrofit applications
  Suitable for indoor or outdoor use
  Stainless steel or aluminium explosion-proof housing options
  IP66 as standard

Proven and Reliable Sensor Technology

  Surecell electrochemical sensors
  Reflex sensor health check
  Poison immune infrared sensors
  Poison resistant catalytic bead sensors
  Long life sensors

Global Approvals

  US and Latin America, European, Canadian and Asian
  Compliant with UL, INMETRO, ATEX, IECEx, CSA, KTL, PA, GB and CCCF standards

Easy to Use

  User friendly and intuitive tri-colour backlit display with digits, bar graph and icons
  Fully configurable via magnetic switches
  Selectable sink or source 4-20mA output
  Auto-inhibit during maintenance
  MODBUS communications for remote diagnostics/configuration

Cost Effective

  Common transmitter platform
  Minimal training required
  Reduced spares
  Non-intrusive, one-man operation
  Plug-in sensor replacement
  MODBUS multi drop option offers cabling savings

Simple Installation

  Plug-in display module removes to give access to terminal area
  Integral mounting bracket
  2 x M20 or ¾" NPT cable/conduit entries (certification dependent)
  Removable plug/socket type terminal blocks for ease of wiring
  Sink/source switch to suit preferred wiring topology

Range of Optional Accessories

  Remote sensor gassing kit
  Duct mounting kit
  Calibration gas flow housing
  Collecting cone

Ordering Information


Instrument - ATEX/IECEx/CHINA Approval (316SS)

SPXCDASMFX ATEX/IECEx and AP approved SP XCD Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, M20 Entry
SPXCDASMRX ATEX/IECEx and AP approved SP XCD CH4(Methane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, M20 Entry
SPXCDASMPX ATEX/IECEx and AP approved SP XCD Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, M20 Entry
SPXCDASMO1 ATEX/IECEx and AP approved SP XCD Oxygen 25.0%/Vol with 316SS, M20 Entry
SPXCDASMNX ATEX/IECEx and AP approved SP XCD Nitrogen Dioxide 0-10ppm (10.0 to 50.0ppm, 5ppm) with 316SS, M20 Entry
SPXCDASMHX ATEX/IECEx and AP approved SP XCD Hydrogen Sulfide 0-50ppm (10.0 to 100.0ppm, 1ppm) with 316SS, M20 Entry
SPXCDASMCX ATEX/IECEx and AP approved SP XCD Carbon Monoxide 0-300ppm (100 to 1000ppm, 100ppm) with 316SS, M20 Entry
SPXCDASMG1 ATEX/IECEx and AP approved SP XCD Hydrogen 0-1000ppm with 316SS, M20 Entry
SPXCDASMB1 ATEX/IECEx and AP approved SP XCD Carbon Dioxide IR 0-2.00%VOL with 316SS, M20 Entry

Instrument - ATEX/IECEx/CHINA Approval (LM25)

SPXCDALMFX ATEX/IECEx and AP approved SP XCD Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, M20 Entry
SPXCDALMRX ATEX/IECEx and AP approved SP XCD CH4(Methane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, M20 Entry
SPXCDALMPX ATEX/IECEx and AP approved SP XCD Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, M20 Entry
SPXCDALMO1 ATEX/IECEx and AP approved SP XCD Oxygen 25.0%/Vol with LM25, M20 Entry
SPXCDALMNX ATEX/IECEx and AP approved SP XCD Nitrogen Dioxide 0-10ppm (10.0 to 50.0ppm, 5ppm) with LM25, M20 Entry
SPXCDALMHX ATEX/IECEx and AP approved SP XCD Hydrogen Sulfide 0-50ppm (10.0 to 100.0ppm, 1ppm) with LM25, M20 Entry
SPXCDALMCX ATEX/IECEx and AP approved SP XCD Carbon Monoxide 0-300ppm (100 to 1000ppm, 100ppm) with LM25, M20 Entry
SPXCDALMG1 ATEX/IECEx and AP approved SP XCD Hydrogen 0-1000ppm with LM25, M20 Entry
SPXCDALMB1 ATEX/IECEx and AP approved SP XCD Carbon Dioxide IR 0-2.00%VOL with LM25, M20 Entry

Instrument - UL/CSA Approval (316SS)

SPXCDUSNFX UL/CSA approved SP XCD Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, 3/4"NPT Entry
SPXCDUSNRX UL/CSA approved SP XCD CH4(Methane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, 3/4"NPT Entry
SPXCDUSNPX UL/CSA approved SP XCD Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, 3/4"NPT Entry
SPXCDUSNO1 UL/CSA approved SP XCD Oxygen 25.0%/Vol with 316SS, 3/4"NPT Entry
SPXCDUSNHX UL/CSA approved SP XCD Hydrogen Sulfide 0-50ppm (10.0 to 100.0ppm, 1ppm) with 316SS, 3/4"NPT Entry
SPXCDUSNCX UL/CSA approved SP XCD Carbon Monoxide 0-300ppm (100 to 1000ppm, 100ppm) with 316SS, 3/4"NPT Entry
SPXCDUSNNX UL/CSA approved SP XCD Nitrogen Dioxide 0-10ppm (10.0 to 50.0ppm, 5ppm) with 316SS, 3/4"NPT Entry
SPXCDUSNG1 UL/CSA approved SP XCD Hydrogen 0-1000ppm with 316SS, 3/4"NPT Entry
SPXCDUSNB1 UL/CSA approved SP XCD Carbon Dioxide IR 0-2.00%VOL with 316SS, 3/4"NPT Entry

Instrument - UL/CSA Approval (LM25)

SPXCDULNFX UL/CSA approved SP XCD Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, 3/4"NPT Entry
SPXCDULNRX UL/CSA approved SP XCD CH4(Methane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, 3/4"NPT Entry
SPXCDULNPX UL/CSA approved SP XCD Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, 3/4"NPT Entry
SPXCDULNO1 UL/CSA approved SP XCD Oxygen 25.0%/Vol with LM25, 3/4"NPT Entry
SPXCDULNHX UL/CSA approved SP XCD Hydrogen Sulfide 0-50ppm (10.0 to 100.0ppm, 1ppm) with LM25, 3/4"NPT Entry
SPXCDULNCX UL/CSA approved SP XCD Carbon Monoxide 0-300ppm (100 to 1000ppm, 100ppm) with LM25, 3/4"NPT Entry
SPXCDULNNX UL/CSA approved SP XCD Nitrogen Dioxide 0-10ppm (10.0 to 50.0ppm, 5ppm) with LM25, 3/4"NPT Entry
SPXCDULNG1 UL/CSA approved SP XCD Hydrogen 0-1000ppm with LM25, 3/4"NPT Entry
SPXCDULNB1 UL/CSA approved SP XCD Carbon Dioxide IR 0-2.00%VOL with LM25, 3/4"NPT Entry

Instrument - ATEX/IECEx/CHINA Approval (316SS) with ModBus

SPXCDASMFXM ATEX/IECEx and AP approved SP XCD Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, M20 Entry, with ModBus
SPXCDASMRXM ATEX/IECEx and AP approved SP XCD CH4(Methane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, M20 Entry, with ModBus
SPXCDASMPXM ATEX/IECEx and AP approved SP XCD Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, M20 Entry, with ModBus
SPXCDASMO1M ATEX/IECEx and AP approved SP XCD Oxygen 25.0%/Vol with 316SS, M20 Entry, with ModBus
SPXCDASMNXM ATEX/IECEx and AP approved SP XCD Nitrogen Dioxide 0-10ppm (10.0 to 50.0ppm, 5ppm) with 316SS, M20 Entry, with ModBus
SPXCDASMHXM ATEX/IECEx and AP approved SP XCD Hydrogen Sulfide 0-50ppm (10.0 to 100.0ppm, 1ppm) with 316SS, M20 Entry, with ModBus
SPXCDASMCXM ATEX/IECEx and AP approved SP XCD Carbon Monoxide 0-300ppm (100 to 1000ppm, 100ppm) with 316SS, M20 Entry, with ModBus
SPXCDASMG1M ATEX/IECEx and AP approved SP XCD Hydrogen 0-1000ppm with 316SS, M20 Entry
SPXCDASMB1M ATEX/IECEx and AP approved SP XCD Carbon Dioxide IR 0-2.00%VOL with 316SS, M20 Entry, with ModBus

Instrument - ATEX/IECEx/CHINA Approval (LM25) with ModBus

SPXCDALMFXM ATEX/IECEx and AP approved SP XCD Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, M20 Entry, with ModBus
SPXCDALMRXM ATEX/IECEx and AP approved SP XCD CH4(Methane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, M20 Entry, with ModBus
SPXCDALMPXM ATEX/IECEx and AP approved SP XCD Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, M20 Entry, with ModBus
SPXCDALMO1M ATEX/IECEx and AP approved SP XCD Oxygen 25.0%/Vol with LM25, M20 Entry, with ModBus
SPXCDALMNXM ATEX/IECEx and AP approved SP XCD Nitrogen Dioxide 0-10ppm (10.0 to 50.0ppm, 5ppm) with LM25, M20 Entry, with ModBus
SPXCDALMHXM ATEX/IECEx and AP approved SP XCD Hydrogen Sulfide 0-50ppm (10.0 to 100.0ppm, 1ppm) with LM25, M20 Entry, with ModBus
SPXCDALMCXM ATEX/IECEx and AP approved SP XCD Carbon Monoxide 0-300ppm (100 to 1000ppm, 100ppm) with LM25, M20 Entry, with ModBus
SPXCDALMG1M ATEX/IECEx and AP approved SP XCD Hydrogen 0-1000ppm with LM25, M20 Entry, with ModBus
SPXCDALMB1M ATEX/IECEx and AP approved SP XCD Carbon Dioxide IR 0-2.00%VOL with LM25, M20 Entry, with ModBus

Instrument - UL/CSA Approval (316SS) with ModBus

SPXCDUSNFXM UL/CSA approved SP XCD Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, 3/4"NPT Entry, with ModBus
SPXCDUSNRXM UL/CSA approved SP XCD CH4(Methane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, 3/4"NPT Entry, with ModBus
SPXCDUSNPXM UL/CSA approved SP XCD Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL) with 316SS, 3/4"NPT Entry, with ModBus
SPXCDUSNO1M UL/CSA approved SP XCD Oxygen 25.0%/Vol with 316SS, 3/4"NPT Entry, with ModBus
SPXCDUSNHXM UL/CSA approved SP XCD Hydrogen Sulfide 0-50ppm (10.0 to 100.0ppm, 1ppm) with 316SS, 3/4"NPT Entry, with ModBus
SPXCDUSNCXM UL/CSA approved SP XCD Carbon Monoxide 0-300ppm (100 to 1000ppm, 100ppm) with 316SS, 3/4"NPT Entry, with ModBus
SPXCDUSNNXM UL/CSA approved SP XCD Nitrogen Dioxide 0-10ppm (10.0 to 50.0ppm, 5ppm) with 316SS, 3/4"NPT Entry, with ModBus
SPXCDUSNG1M UL/CSA approved SP XCD Hydrogen 0-1000ppm with 316SS, 3/4"NPT Entry, with ModBus
SPXCDUSNB1M UL/CSA approved SP XCD Carbon Dioxide IR 0-2.00%VOL with 316SS, 3/4"NPT Entry, with ModBus

Instrument - UL/CSA Approval (LM25) with ModBus

SPXCDULNFXM UL/CSA approved SP XCD Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, 3/4"NPT Entry, with ModBus
SPXCDULNRXM UL/CSA approved SP XCD CH4(Methane) IR 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, 3/4"NPT Entry, with ModBus
SPXCDULNPXM UL/CSA approved SP XCD Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL) with LM25, 3/4"NPT Entry, with ModBus
SPXCDULNO1M UL/CSA approved SP XCD Oxygen 25.0%/Vol with LM25, 3/4"NPT Entry, with ModBus
SPXCDULNHXM UL/CSA approved SP XCD Hydrogen Sulfide 0-50ppm (10.0 to 100.0ppm, 1ppm) with LM25, 3/4"NPT Entry, with ModBus
SPXCDULNCXM UL/CSA approved SP XCD Carbon Monoxide 0-300ppm (100 to 1000ppm, 100ppm) with LM25, 3/4"NPT Entry, with ModBus
SPXCDULNNXM UL/CSA approved SP XCD Nitrogen Dioxide 0-10ppm (10.0 to 50.0ppm, 5ppm) with LM25, 3/4"NPT Entry, with ModBus
SPXCDULNG1M UL/CSA approved SP XCD Hydrogen 0-1000ppm with LM25, 3/4"NPT Entry, with ModBus
SPXCDULNB1M UL/CSA approved SP XCD Carbon Dioxide IR 0-2.00%VOL with LM25, 3/4"NPT Entry with ModBus

Accessories

S3KCAL Calibration cup
SPXCDCC Collecting cone for use with lighter than air gases
SPXCDDMK Duct mounting kit
SPXCDMTBR Mounting bracket (inc. bolts, nuts, brackets)
SPXCDSDP Sunshade / Deluge Protection
00780-A-0100 Honeywell Junction Box- Bartec OTB122 With Continuity Plate 1 X 25mm - 3 X 20mm Entries - ATEX Approved

Sensepoint XCD Sensors (316 Stainless Steel)

SPXCDXSFXSS Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL)
SPXCDXSRXSS Methane IR 0-100%LEL (20 to 100%LEL, 10%LEL)
SPXCDXSO1SS Oxygen 25.0%/Vol only
SPXCDXSHXSS Hydrogen Sulfide 0-50ppm (10.0 to 100.0ppm, 1ppm)
SPXCDXSCXSS Carbon Monoxide 0-300ppm (100 to 1000ppm, 100ppm)
SPXCDXSNXSS Nitrogen Dioxide 0-10ppm (10.0 to 50.0ppm, 5ppm)
SPXCDXSG1SS Hydrogen 0-1000ppm only
SPXCDXSPXSS Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL)
SPXCDXSB1SS Carbon Dioxide IR 0-2.00%VOL only

Sensepoint XCD Transmitter (without Sensor)

SPXCDALMTXO ATEX/IECEx/China approved Sensepoint XCD O2 Transmitter, LM25 with M20 Entry
SPXCDALMTXT ATEX/IECEx/China approved Sensepoint XCD Toxic Transmitter, LM25 with M20 Entry
SPXCDALMTXF ATEX/IECEx/China approved Sensepoint XCD IR and FLAM Transmitter, LM25 with M20 Entry
SPXCDASMTXO ATEX/IECEx/China approved Sensepoint XCD O2 Transmitter, 316SS with M20 Entry
SPXCDASMTXT ATEX/IECEx/China approved Sensepoint XCD Toxic Transmitter, 316SS with M20 Entry
SPXCDASMTXF ATEX/IECEx/China approved Sensepoint XCD IR and FLAM Transmitter, 316SS with M20 Entry
SPXCDALMTXOM ATEX/IECEx/China approved Sensepoint XCD O2 Transmitter, LM25 with M20 Entry and ModBus
SPXCDALMTXTM ATEX/IECEx/China approved Sensepoint XCD Toxic Transmitter with LM25, M20 Entry, with ModBus
SPXCDALMTXFM ATEX/IECEx/China approved Sensepoint XCD IR and FLAM Transmitter, LM25 with M20 Entry and ModBus
SPXCDASMTXOM ATEX/IECEx/China approved Sensepoint XCD O2 Transmitter, 316SS with M20 Entry and ModBus
SPXCDASMTXTM ATEX/IECEx/China approved Sensepoint XCD Toxic Transmitter, 316SS with M20 Entry and ModBus
SPXCDASMTXFM ATEX/IECEx/China approved Sensepoint XCD IR and FLAM Transmitter, 316SS with M20 Entry and ModBus
SPXCDULNTXO UL approved Sensepoint XCD O2 Transmitter, LM25 with 3/4"NPT Entry
SPXCDULNTXT UL approved Sensepoint XCD Toxic Transmitter, LM25 with 3/4"NPT Entry
SPXCDULNTXF UL approved Sensepoint XCD IR and FLAM Transmitter, LM25 with 3/4"NPT Entry
SPXCDUSNTXO UL approved Sensepoint XCD O2 Transmitter, 316SS with 3/4"NPT Entry
SPXCDUSNTXT UL approved Sensepoint XCD Toxic Transmitter with 316SS, 3/4"NPT Entry
SPXCDUSNTXF UL approved Sensepoint XCD IR and FLAM Transmitter, 316SS with 3/4"NPT Entry
SPXCDULNTXOM UL approved Sensepoint XCD O2 Transmitter, LM25 with 3/4"NPT Entry and ModBus
SPXCDULNTXTM UL approved Sensepoint XCD Toxic Transmitter, LM25 with 3/4"NPT Entry and ModBus
SPXCDULNTXFM UL approved Sensepoint XCD IR and FLAM Transmitter, LM25 with 3/4"NPT Entry and ModBus
SPXCDUSNTXOM UL approved Sensepoint XCD O2 Transmitter, 316SS with 3/4"NPT Entry and ModBus
SPXCDUSNTXTM UL approved Sensepoint XCD Toxic Transmitter, 316SS with 3/4"NPT Entry and ModBus
SPXCDUSNTXFM UL approved Sensepoint XCD IR and FLAM Transmitter, 316SS with 3/4"NPT Entry and ModBus

Miscellaneous Spares

SPXCDDMF Replacement display module for Cat and IR
SPXCDDMT Replacement display module for O2 and Toxic
SPXCDDMFM Replacement display module (Cat and IR) with ModBus
SPXCDDMTM Replacement display module O2 and Toxic with ModBus
SPXCDTMF Replacement terminal module for Cat and IR
SPXCDTMO Replacement terminal module for O2
SPXCDTMT Replacement terminal module for Toxic
SPXCDMAG Magnet
SPXCDWP XCD Weather proof cap
SPXCDSRLS Sensor Retainer with locking screw
SPXCDAKS Allen key for stopper
SPXCDHWES Hex wrench for earth screw
SPXCDEBS Earth Bracket and screws

Instrument - Sensepoint XCD RFD Transmitter

SPXCDASMRFD ATEX/IECEx and AP approved SP XCD RFD Transmitter with 316SS
SPXCDALMRFD ATEX/IECEx and AP approved SP XCD RFD Transmitter with LM25
SPXCDUSNRFD cCSAus approved SP XCD RFD Transmitter with 316SS, 3/4"NPT Entries
SPXCDULNRFD cCSAus approved SP XCD RFD Transmitter with LM25, 3/4" NPT Entries

Instrument - Sensepoint XCD RFD Remote Plug-in Sensor and Socket

SPXCDXSRFXSS Sensepoint XCD RFD remote plug-in sensor and socket, flammable CAT 0-100%LEL (20,0 to 100.0%LEL)
SPXCDXSRRXSS Sensepoint XCD RFD remote plug-in sensor and socket, Methane IR 0-100%LEL (20,0 to 100.0%LEL)
SPXCDXSRPXSS Sensepoint XCD RFD remote plug-in sensor and socket, Propane IR 0-100%LEL (20,0 to 100.0%LEL)
SPXCDXSRB1SS Sensepoint XCD RFD remote plug-in sensor and socket, Carbon Dioxide IR 0-2.00%VOL only

Instrument - Sensepoint XCD RFD Transmitter with ModBus

SPXCDASMRFDM ATEX/IECEx and AP approved SP XCD RFD Transmitter, 316SS, 2x M20 and 1x M25 entries, with ModBus
SPXCDALMRFDM ATEX/IECEx and AP approved SP XCD RFD Transmitter, LM25, 2x M20 and 1x M25 entries, with ModBus
SPXCDUSNRFDM cCSAus approved SP XCD RFD Transmitter with 316SS, 3/4"NPT Entries, with ModBus
SPXCDULNRFDM cCSAus approved SP XCD RFD Transmitter with LM25, 3/4" NPT Entries, with ModBus

Accessories

SPXCDWP XCD Weather proof cap
S3KCAL Calibration cup (flow adapter) for Series 3000 and XNX EC toxic sensors
SPXCDCC Collecting cone for use with lighter than air gases
SPXCDDMK Duct mounting kit
SPXCDMTBR Mounting bracket (inc. bolts, nuts, brackets)
SPXCDSDP Sunshade / Deluge Protection
00780-A-0100 Honeywell Junction Box- Bartec OTB122 With Continuity Plate 1 X 25mm - 3 X 20mm Entries - ATEX Approved

Spares

SPXCDXSFXSS Flammable CAT 0-100%LEL (20 to 100%LEL, 10%LEL)
SPXCDXSRXSS Methane IR 0-100%LEL (20 to 100%LEL, 10%LEL)
SPXCDXSPXSS Propane IR 0-100%LEL (20 to 100%LEL, 10%LEL)
SPXCDXSB1SS Carbon Dioxide IR 0-2.00%VOL only
SPXCDDMR XCD RFD Flam and IR Display Module
SPXCDDMRM XCD RFD Flam and IR Display Module, ModBus
SPXCDTMR XCD RFD Replacement Terminal Module
SPXCDMAG Magnet
SPXCDSRLS Sensor Retainer with locking screw
SPXCDAKS Allen key for stopper
SPXCDHWES Hex wrench for earth screw
SPXCDEBS Earth Bracket and Screws

Instrument - Sensepoint XCD RTD 4-20mA Input Transmitter (Transmitter Only)

SPXCDASMTX4 ATEX/IECEx and AP approved SP XCD 4~20mA Input Transmitter with 316SS, M20 Entry
SPXCDALMTX4 ATEX/IECEx and AP approved SP XCD 4~20mA Input Transmitter with LM25, M20 Entry
SPXCDUSNTX4 cCSAus approved SP XCD RTD Transmitter with 316SS
SPXCDULNTX4 cCSAus approved SP XCD RTD Transmitter with LM25

Instrument - Sensepoint XCD RTD 4-20mA Input Transmitter with ModBus (Transmitter Only)

SPXCDASMTX4M ATEX/IECEx and AP approved SP XCD 4~20mA Input Transmitter with 316SS, with ModBus
SPXCDALMTX4M ATEX/IECEx and AP approved SP XCD 4~20mA Input Transmitter with LM25, with ModBus
SPXCDUSNTX4M cCSAus approved SP XCD RTD Transmitter with 316SS, with ModBus
SPXCDULNTX4M cCSAus approved SP XCD RTD Transmitter with LM25, with ModBus

Accessories and Spares

SPXCDMTBR Mounting bracket (inc. bolts, nuts, brackets)
SPXCDSDP Sunshade / Deluge Protection
SPXCDDM4 Sensepoint XCD RTD Toxic and O2 Display Module
SPXCDDM4M Sensepoint XCD RTD Toxic and O2 ModBus Display Module
SPXCDTM4 Sensepoint XCD RTD Replacement terminal module
SPXCDAKS Allen key for stopper
SPXCDHWES Hex wrench for earth screw
SPXCDEBS Earth Bracket and Screws
SPXCDMAG Magnet



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Back To Last Page

Zareba

Fixed Gas Detectors

705 HT Sensor
FS20X Fire and Flame Detector
FS24X Flame Detector
FSL100 Series Flame Detectors
MeshGuard
OELD (Optima Excel Local Display)
ProRAE Guardian
RAEGuard 2 PID Fixed Detector
Searchline Excel Cross-Duct
Searchline Excel Infrared Open Path
Searchline Excel Kits with XNX Transmitters
Searchpoint Optima Plus
Sensepoint
Sensepoint with Junction Box
Sensepoint XCD
Sensepoint XCL
Sensepoint XRL
Series 3000 MkII and MkIII
SS4 UV and UV/IR Flame Detectors
System 57
Touchpoint Plus 19" Rack
Touchpoint Plus Controller
Touchpoint Pro
Unipoint Controller
XNX Universal Transmitter

Semi High Tech

ACM 150 FT-IR Centralised Gas Monitoring System
Chemcassette Toxic Gas Detection
ChemKey TLD Toxic Gas Detector
CM4 Continuous Multipoint Monitor
Fire Sentry FS7 Flame Detector
LeakFilm Liquid Leak Detector
Midas Gas Detector
Satellite XT
SPM Flex Chemcassette
SPM Single Point Monitor
Vertex M Hazardous Gas Monitor
Vertex Multi-Point Toxic Gas Monitoring System

Tubes & Pumps

Colorimetric Gas Detection Tubes and Pump

Want A Quotation?

Please fill out the following fields and we will e-mail you a quotation shortly.
