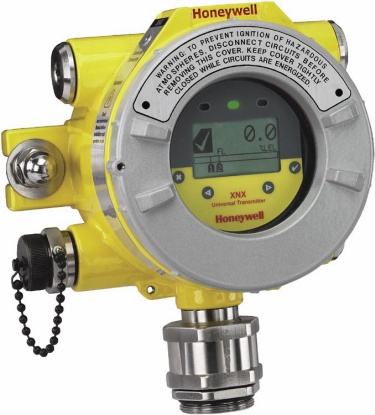

Zellweger XNX Universal Transmitter


XNX is an extremely flexible transmitter that can be configured to accept an input from any of the Zellweger range of gas sensor technologies. It can also be configured to provide a wide variety of industry standard output signals. This enables users to have a single type of interface to all their gas detection needs, even when different types of detectors are employed, to most effectively address the different gas detection applications on site.

Find out more on our sister site Cadmus Products.

The most effective gas detection systems often employ a variety of detection technologies including point flammable detectors (both catalytic and infrared type), toxic and Oxygen electrochemical cell type detectors and open path infrared detectors. XNX provides a common transmitter interface to all of these and can be configured to provide industry standard signal outputs to match the individual requirement of each application or the preferred site standard. If site output standards change, XNX can be reconfigured to provide the new required output. XNX has also been futureproofed by having the ability to have other output modules fitted as new output standards are developed and adopted by industry.

Having a common transmitter platform for all your gas detectors brings further benefits. Common tools and installation methods simplifies and reduces cost of installation. The common user interface makes operation faster to learn and easier to navigate, thus reducing time needed for training as well as reducing the chance of incorrectly interpreting messages or incorrectly changing settings. Common spare parts also mean reduced maintenance spares stock levels and cost for all detectors.

XNX allows you to apply the most appropriate gas detection technologies for each application, standardise the interface to those detectors and has the flexibility to provide the required signal outputs. With XNX the answer is always yes.

Flexible

  Compatible with all Zellweger gas sensors
  Allows selection of best sensor technology for each application
  Choice of all industry standard output signals
  Ability to adapt configuration as site needs change
  Future-proofed for any new output standards


Data Sheet
XNX Spec Sheet
Functional Safety
Reflex Technology
Fire and Gas Detection for the Petrochemical Industry Brochure
Fixed-Point Industrial Fire and Gas Detection Brochure
Engineering Specifications
XNX Product Overview
XNX Training Presentation
XNX Foundation Fieldbus Manual
XNX Safety Manual
XNX Technical Manual
XNX Quick Start Guide

Common Transmitter Platform

  Simplified and reduced cost of installation
  Reduced training time and cost
  Less chance of misinterpreting messages
  Less chance of incorrectly changing settings
  Reduced maintenance, spares, stock and cost

Global Approvals

  European, US and Canadian
  Compliant with ATEX, UL and CSA standards
  ATEX, UL and CSA performance approval
  IEC61508 SIL 2

Easy to Use

  Easy read multilingual backlit LCD with text, bar graph, digits and icons
  Local or remote sensor mounting options
  Selectable sink, source or isolated 4-20mA output to suit preferred wiring topology
  HART communications as standard for remote diagnostics/configuration

Reduced Operational Costs

  Fully configurable via non-intrusive magnetic switches
  No hot work permit needed
  Hot swap toxic and Oxygen sensor cartridges
  Serviceable catalytic and IR sensors
  Auto-inhibit during maintenance

Friendly Installation

  Integral surface mounting lugs or optional pipe or ceiling mounting brackets
  5 x M25 or ¾" NPT cable/conduit/sensor entries
  Plug-in 'POD' module removes to give access to terminal area
  Removable plug/socket type terminal blocks for ease of wiring

Typical Applications

  Offshore oil and production platforms
  Oil and gas exploration and drilling
  Refineries
  Chemical and petrochemical plants
  Onshore oil and gas terminals
  Gas transmission
  Power stations

Ordering Information


XNX Stainless Steel Transmitter ATEX/IEC with MPD Catalytic Sensor 0-100%LEL

XNX-AMSV-NNCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, including MPD catalytic sensor 0-100%LEL
XNX-AMSV-NHCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional local HART interface port, including MPD catalytic sensor 0-100%LEL
XNX-AMSV-RNCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs, including MPD catalytic sensor 0-100%LEL
XNX-AMSV-RHCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, including MPD catalytic sensor 0-100%LEL
XNX-AMSV-MNCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output, including MPD catalytic sensor 0-100%LEL
XNX-AMSV-MHCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, including MPD catalytic sensor 0-100%LEL
XNX-AMSV-FNCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, including MPD catalytic sensor 0-100%LEL.
XNX-AMSV-FHCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, including MPD catalytic sensor 0-100%LEL

XNX Aluminum Transmitter ATEX/IEC with MPD Catalytic Sensor 0-100%LEL

XNX-AMAV-NNCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, including MPD catalytic sensor 0-100%LEL
XNX-AMAV-NHCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional local HART interface port, including MPD catalytic sensor 0-100%LEL
XNX-AMAV-RNCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs, including MPD catalytic sensor 0-100%LEL
XNX-AMAV-RHCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, including MPD catalytic sensor 0-100%LEL XNX-AMAV-MNCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output, including MPD catalytic sensor 0-100%LEL
XNX-AMAV-MHCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, including MPD catalytic sensor 0-100%LEL.
XNX-AMAV-FNCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, including MPD catalytic sensor 0-100%LEL
XNX-AMAV-FHCB1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, including MPD catalytic sensor 0-100%LEL

XNX Stainless Steel Transmitter ATEX/IEC with MPD Infrared Hydrocarbon (Propane) Sensor 0-100%LEL

XNX-AMSV-NNIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL.
XNX-AMSV-NHIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional local HART interface port, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMSV-RNIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMSV-RHIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMSV-MNIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMSV-MHIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMSV-FNIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, including MPD IR flammable sensor 0-100%LEL
XNX-AMSV-FHIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR flammable sensor 0-100%LEL.

XNX Aluminium Transmitter ATEX/IEC with MPD Infrared Hydrocarbon (Propane) Sensor 0-100%LEL

XNX-AMAV-NNIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMAV-NHIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional local HART interface port, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMAV-RNIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMAV-RHIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMAV-MNIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMAV-MHIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, including MPD IR Hydrocarbon (Propane) sensor 0-100%LEL
XNX-AMAV-FNIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, including MPD IR flammable sensor 0-100%LEL.
XNX-AMAV-FHIF1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR flammable sensor 0-100%LEL.

XNX Stainless Steel Transmitter ATEX/IEC with MPD Infrared Methane Sensor 0-100%LEL (0-5%V/V)

XNX-AMSV-NNIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMSV-NHIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional local HART interface port, including MPD IR methane sensor 0-100%LEL (0-5%V/V).
XNX-AMSV-RNIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMSV-RHIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMSV-MNIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMSV-MHIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMSV-FNIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, including MPD IR methane sensor 0-5%V/V
XNX-AMSV-FHIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR methane sensor 0-5%V/V.

XNX Aluminium Transmitter ATEX/IEC with MPD Infrared Methane Sensor 0-100%LEL (0-5%V/V)

XNX-AMAV-NNIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMAV-NHIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional local HART interface port, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMAV-RNIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMAV-RHIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMAV-MNIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMAV-MHIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-AMAV-FNIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, including MPD IR methane sensor 0-5%V/V
XNX-AMAV-FHIV1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR methane sensor 0-5%V/V

XNX Stainless Steel Transmitter ATEX/IEC with MPD Infrared CO2 Sensor 0-5%V/V

XNX-AMSV-NNIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, including MPD IR CO2 sensor 0-5%V/V
XNX-AMSV-NHIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional local HART interface port, including MPD IR CO2 sensor 0-5%V/V
XNX-AMSV-RNIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs, including MPD IR CO2 sensor 0-5%V/V
XNX-AMSV-RHIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, including MPD IR CO2 sensor 0-5%V/V

XNX Stainless Steel Transmitter ATEX/IEC with MPD Infrared CO2 Sensor 0-5%V/V

XNX-AMSV-MNIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output, including MPD IR CO2 sensor 0-5%V/V
XNX-AMSV-MHIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, including MPD IR CO2 sensor 0-5%V/V
XNX-AMSV-FNIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, including MPD IR CO2 sensor 0-5%V/V
XNX-AMSV-FHIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR CO2 sensor 0-5%V/V

XNX Aluminium Transmitter ATEX/IEC with MPD Infrared CO2 Sensor 0-5%V/V

XNX-AMAV-NNIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, including MPD IR CO2 sensor 0-5%V/V
XNX-AMAV-NHIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25
XNX-AMAV-RNIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs, including MPD IR CO2 sensor 0-5%V/V
XNX-AMAV-RHIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, including MPD IR CO2 sensor 0-5%V/V
XNX-AMAV-MNIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output, including MPD IR CO2 sensor 0-5%V/V
XNX-AMAV-MHIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, including MPD IR CO2 sensor 0-5%V/V
XNX-AMAV-FNIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, including MPD IR CO2 0-5%V/V
XNX-AMAV-FHIC1 XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR CO2 sensor 0-5%V/V

XNX Stainless Steel Transmitter UL/CSA with MPD Catalytic Sensor 0-100%LEL

XNX-UTSV-NNCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, including MPD catalytic sensor 0-100%LEL
XNX-UTSV-NHCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional local HART interface port, including MPD catalytic sensor 0-100%LEL
XNX-UTSV-RNCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs, including MPD catalytic sensor 0-100%LEL
XNX-UTSV-RHCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, including MPD catalytic sensor 0-100%LEL
XNX-UTSV-MNCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output, including MPD catalytic sensor 0-100%LEL
XNX-UTSV-MHCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, including MPD catalytic sensor 0-100%LEL
XNX-UTSV-FNCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, including MPD catalytic sensor 0-100%LEL
XNX-UTSV-FHCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, including MPD catalytic sensor 0-100%LEL

XNX Aluminum Transmitter UL/CSA with MPD Catalytic Sensor 0-100%LEL

XNX-UTAV-NNCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, including MPD catalytic sensor 0-100%LEL
XNX-UTAV-NHCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional local HART interface port, including MPD catalytic sensor 0-100%LEL
XNX-UTAV-RNCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs, including MPD catalytic sensor 0-100%LEL
XNX-UTAV-RHCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, including MPD catalytic sensor 0-100%LEL
XNX-UTAV-MNCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output, including MPD catalytic sensor 0-100%LEL
XNX-UTAV-MHCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, including MPD catalytic sensor 0-100%LEL
XNX-UTAV-FNCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, including MPD catalytic sensor 0-100%LEL
XNX-UTAV-FHCB1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, including MPD catalytic sensor 0-100%LEL

XNX Stainless Steel Transmitter UL/CSA with MPD Infrared Hydrocarbon (Propane) Sensor 0-100%LEL

XNX-UTSV-NNIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTSV-NHIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional local HART interface port, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTSV-RNIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL

XNX Stainless Steel Transmitter UL/CSA with MPD Infrared Hydrocarbon (Propane) Sensor 0-100%LEL

XNX-UTSV-RHIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTSV-MNIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTSV-MHIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTSV-FNIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, including MPD IR flammable sensor 0-100%LEL
XNX -UTSV-FHIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR flammable sensor 0-100%LEL

XNX Aluminium Transmitter UL/CSA with MPD Infrared Hydrocarbon (Propane) Sensor 0-100%LEL

XNX-UTAV-NNIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTAV-NHIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional local HART interface port, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTAV-RNIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTAV-RHIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTAV-MNIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTAV-MHIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, including MPD IR Hydrocarbon (Propane) Sensor 0-100%LEL
XNX-UTAV-FNIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, including MPD IR flammable sensor 0-100%LEL
XNX-UTAV-FHIF1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR flammable sensor 0-100%LEL

XNX Stainless Steel Transmitter UL/CSA with MPD Infrared Methane Sensor 0-100%LEL (0-5%V/V)

XNX-UTSV-NNIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-UTSV-NHIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional local HART interface port, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-UTSV-RNIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-UTSV-RHIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-UTSV-MNIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-UTSV-MHIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-UTSV-FNIV1 XNX transmitter, HART over 4-20mA output,UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, including MPD IR methane sensor 0-5%V/V
XNX-UTSV-FHIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR methane sensor 0-5%V/V

XNX Aluminium Transmitter UL/CSA with MPD Infrared Methane Sensor 0-100%LEL (0-5%V/V)

XNX-UTAV-NNIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, including MPD IR Methane sensor 0-100%LEL (0-5%V/V)
XNX-UTAV-NHIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional local HART interface port, including MPD IR Methane sensor 0-100%LEL (0-5%V/V)
XNX-UTAV-RNIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-UTAV-RHIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, including MPD IR Methane sensor 0-100%LEL (0-5%V/V)
XNX-UTAV-MNIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-UTAV-MHIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, including MPD IR methane sensor 0-100%LEL (0-5%V/V)
XNX-UTAV-FNIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, including MPD IR methane sensor 0-5%V/V
XNX-UTAV-FHIV1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR methane sensor 0-5%V/V

XNX Stainless Steel Transmitter UL/CSA with MPD Infrared CO2 Sensor 0-5%V/V

XNX-UTSV-NNIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, including MPD IR CO2 sensor 0-5%V/V
XNX-UTSV-NHIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional local HART interface port, including MPD IR CO2 sensor 0-5%V/V
XNX-UTSV-RNIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs, including MPD IR CO2 sensor 0-5%V/V
XNX-UTSV-RHIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, including MPD IR CO2 sensor 0-5%V/V
XNX-UTSV-MNIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output, including MPD IR CO2 sensor 0-5%V/V
XNX-UTSV-MHIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, including MPD IR CO2 sensor 0-5%V/V
XNX-UTSV-FNIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, including MPD IR CO2 sensor 0-5%V/V
XNX-UTSV-FHIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR CO2 sensor 0-5%V/V

XNX Aluminium Transmitter UL/CSA with MPD Infrared CO2 Sensor 0-5%V/V

XNX-UTAV-NNIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, including MPD IR CO2 sensor 0-5%V/V
XNX-UTAV-NHIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional local HART interface port, including MPD IR CO2 sensor 0-5%V/V
XNX-UTAV-RNIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs, including MPD IR CO2 sensor 0-5%V/V
XNX-UTAV-RHIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, including MPD IR CO2 sensor 0-5%V/V
XNX-UTAV-MNIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output, including MPD IR CO2 sensor 0-5%V/V
XNX-UTAV-MHIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, including MPD IR CO2 sensor 0-5%V/V
XNX-UTAV-FNIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, including MPD IR CO2 0-5%V/V
XNX-UTAV-FHIC1 XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, including MPD IR CO2 sensor 0-5%V/V

Spare MPD Sensors

MPD-AMCB1 XNX MPD Sensor, M25, ATEX/IEC approved, Catalytic Bead, Flammables (Methane Cal) 0-100%LEL
MPD-AMIF1 XNX MPD Sensor, M25, ATEX/IEC approved, IR Hydrocarbons (Propane Cal) 0-100%LEL
MPD-AMIV1 XNX MPD Sensor, M25, ATEX/IEC approved, IR Methane 0-100%LEL or 0-5.00% Vol.
MPD-AMIC1 XNX MPD Sensor, M25, ATEX/IEC approved, IR Carbon Dioxide 0-5.00%Vol.
MPD-UTCB1 XNX MPD Sensor, 3/4"NPT, UL/CSA approved, Catalytic Bead, Flammables (Methane Cal) 0-100%LEL
MPD-UTIF1 XNX MPD Sensor, 3/4"NPT, UL/CSA approved, IR Hydrocarbons (Propane Cal) 0-100%LEL
MPD-UTIV1 XNX MPD Sensor, 3/4"NPT, UL/CSA approved, IR Methane 0-100%LEL or 0-5.00% Vol.
MPD-UTIC1 XNX MPD Sensor, 3/4"NPT, UL/CSA approved, IR Carbon Dioxide 0-5.00%Vol.

Spare MPD Replaceable Cartridges

1226A0359 XNX MPD Cartridge, Catalytic Bead, Flammables (Methane Cal) 0-100%LEL
1226-0300 XNX MPD Cartridge, IR Hydrocarbons (Propane Cal) 0-100%LEL
1226-0299 XNX MPD Cartridge, IR Methane 0-100%LEL or 0-5.00% Vol.
1226-0301 XNX MPD Cartridge, IR Carbon Dioxide 0-5.00%Vol.

XNX Stainless Steel Transmitter ATEX/IEC for use with Sensepoint High Temperature Sensor

XNX-AMSV-NNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, configured for mV sensors
XNX-AMSV-NHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional local HART interface port, configured for mV sensors
XNX-AMSV-RNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs, configured for mV sensors
XNX-AMSV-RHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, configured for mV sensors
XNX-AMSV-MNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output, configured for mV sensors
XNX-AMSV-MHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, configured for mV sensors
XNX-AMSV-FNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, configured for mV sensors
XNX-AMSV-FHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, configured for mV sensors

XNX Aluminum Transmitter ATEX/IEC for use with Sensepoint High Temperature Sensor

XNX-AMAV-NNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, configured for mV sensors
XNX-AMAV-NHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional local HART interface port, configured for mV sensors
XNX-AMAV-RNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs, configured for mV sensors
XNX-AMAV-RHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, configured for mV sensors
XNX-AMAV-MNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output, configured for mV sensors
XNX-AMAV-MHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, configured for mV sensors
XNX-AMAV-FNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, configured for mV sensors
XNX-AMAV-FHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, configured for mV sensors

XNX Stainless Steel Transmitter UL/CSA for use with model 705 High Temperature Sensor

XNX-UTSV-NNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, configured for mV sensors
XNX-UTSV-NHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional local HART interface port, configured for mV sensors
XNX-UTSV-RNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs, configured for mV sensors
XNX-UTSV-RHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, configured for mV sensors
XNX-UTSV-MNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output, configured for mV sensors
XNX-UTSV-MHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, configured for mV sensors.
XNX-UTSV-FNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, configured for mV sensors.
XNX-UTSV-FHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, configured for mV sensors

XNX Aluminum Transmitter UL/CSA for use with 705 High Temperature Sensor

XNX-UTAV-NNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, configured for mV sensors
XNX-UTAV-NHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional local HART interface port, configured for mV sensors
XNX-UTAV-RNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs, configured for mV sensors
XNX-UTAV-RHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, configured for mV sensors
XNX-UTAV-MNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output, configured for mV sensors
XNX-UTAV-MHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, configured for mV sensors
XNX-UTAV-FNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, configured for mV sensors
XNX-UTAV-FHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, configured for mV sensors

XNX Stainless Steel Transmitter ATEX/IEC for use with XNX Toxic and Oxygen Sensors

XNX-AMSE-NNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, configured for XNX toxic and Oxygen sensors
XNX-AMSE-NHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional local HART interface port, configured for XNX toxic and Oxygen sensors
XNX-AMSE-RNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs, configured for XNX toxic and Oxygen sensors
XNX-AMSE-RHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, configured for XNX toxic and Oxygen sensors
XNX-AMSE-MNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output, configured for XNX toxic and Oxygen sensors
XNX-AMSE-MHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, configured for XNX toxic and Oxygen sensors.
XNX-AMSE-FNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, configured for XNX toxic and Oxygen sensors.
XNX-AMSE-FHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, configured for XNX toxic and Oxygen sensors

XNX Aluminium Transmitter ATEX/IEC for use with XNX Toxic and Oxygen Sensors

XNX-AMAE-NNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, configured for XNX toxic and Oxygen sensors
XNX-AMAE-NHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional local HART interface port, configured for XNX toxic and Oxygen sensors.
XNX-AMAE-RNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs, configured for XNX toxic and Oxygen sensors
XNX-AMAE-RHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, configured for XNX toxic and Oxygen sensors
XNX-AMAE-MNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output, configured for XNX toxic and Oxygen sensors
XNX-AMAE-MHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, configured for XNX toxic and Oxygen sensors
XNX-AMAE-FNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, configured for XNX toxic and Oxygen sensors
XNX-AMAE-FHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, configured for XNX toxic and Oxygen sensors.

XNX Stainless Steel Transmitter UL/CSA for use with XNX Toxic and Oxygen Sensors

XNX-UTSE-NNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, configured for XNX toxic and Oxygen sensors
XNX-UTSE-NHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional local HART interface port, configured for XNX toxic and Oxygen sensors.
XNX-UTSE-RNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs, configured for XNX toxic and Oxygen sensors
XNX-UTSE-RHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, configured for XNX toxic and Oxygen sensors
XNX-UTSE-MNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output, configured for XNX toxic and Oxygen sensors
XNX-UTSE-MHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, configured for XNX toxic and Oxygen sensors.
XNX-UTSE-FNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, configured for XNX toxic and Oxygen sensors.
XNX-UTSE-FHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, configured for XNX toxic and Oxygen sensors.

XNX Aluminium Transmitter UL/CSA for use with XNX Toxic and Oxygen Sensors

XNX-UTAE-NNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, configured for XNX toxic and Oxygen sensors
XNX-UTAE-NHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional local HART interface port, configured for XNX toxic and Oxygen sensors.
XNX-UTAE-RNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs, configured for XNX toxic and Oxygen sensors
XNX-UTAE-RHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, configured for XNX toxic and Oxygen sensors
XNX-UTAE-MNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output, configured for XNX toxic and Oxygen sensors
XNX-UTAE-MHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, configured for XNX toxic and Oxygen sensors
XNX-UTAE-FNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, configured for XNX toxic and Oxygen sensors
XNX-UTAE-FHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, configured for XNX toxic and Oxygen sensors.

XNX Toxic and Oxygen Sensors

XNXXSO1SS XNX sensor Oxygen 0-25%VOL
XNXXSC1SS XNX sensor Carbon Monoxide 0-300ppm (100 to 500ppm, 100ppm)
XNXXSH3SS XNX sensor Hydrogen Sulfide 0-5ppm (1.5 to 5ppm, 0.1ppm)
XNXXSH1SS XNX sensor Hydrogen Sulfide 0-15ppm (10 to 50ppm, 1ppm)
XNXXSH2SS XNX sensor Hydrogen Sulfide 0-100ppm (50 to 500ppm, 10ppm)
XNXXSL1SS XNX sensor Chlorine 0-5.0ppm (5.0 to 20.0ppm, 5.0ppm)
XNXXSL2SS XNX sensor Chlorine 0-5.0ppm
XNXXSS1SS XNX sensor Sulfur Dioxide 0-15.0ppm (5.0 to 20.0ppm, 5.0ppm)
XNXXSX1SS XNX sensor Chlorine Dioxide 0-1.00ppm
XNXXSM1SS XNX sensor Nitrogen Monoxide 0-100ppm
XNXXSN1SS XNX sensor Nitrogen Dioxide 0-10.0ppm (5.0 to 50.0ppm, 5.0ppm)
XNXXSG1SS XNX sensor Hydrogen 0-1000ppm
XNXXSG2SS XNX sensor Hydrogen 0-10,000ppm
XNXXSR1SS XNX sensor Hydrogen Chloride 0-10ppm (10.0 to 20.0ppm, 1.0ppm)
XNXXSA1SS XNX sensor Ammonia 0-200ppm (50 to 200ppm, 50ppm)
XNXXSA2SS XNX sensor Ammonia 0-1000ppm (200 to 1000ppm, 50ppm)

XNX Toxic and Oxygen Cartridges

XNXO1SS XNX Cartridge Oxygen 0-25%VOL
XNXC1SS XNX Cartridge Carbon Monoxide 0-300ppm (100 to 500ppm, 100ppm)
XNXH3SS XNX Cartridge Hydrogen Sulfide 0-5ppm (1.5 to 5ppm, 0.1ppm)
XNXH1SS XNX Cartridge Hydrogen Sulfide 0-15ppm (10 to 50ppm, 1ppm)
XNXH2SS XNX Cartridge Hydrogen Sulfide 0-100ppm (50 to 500ppm, 10ppm)
XNXL1SS XNX Cartridge Chlorine 0-5.0ppm
XNXS1SS XNX Cartridge Sulfur Dioxide 0-15.0ppm (5.0 to 20.0ppm, 5.0ppm)
XNXX1SS XNX Cartridge Chlorine Dioxide 0-1.00ppm
XNXM1SS XNX Cartridge Nitrogen Monoxide 0-100ppm
XNXN1SS XNX Cartridge Nitrogen Dioxide 0-10.0ppm (5.0 to 50.0ppm, 5.0ppm)
XNXG1SS XNX Cartridge Hydrogen 0-1000ppm
XNXG2SS XNX Cartridge Hydrogen 0-10,000ppm
XNXR1SS XNX Cartridge Hydrogen Chloride 0-10ppm (10.0 to 20.0ppm, 1.0ppm)
XNXA1SS XNX Cartridge Ammonia 0-200ppm (50 to 200ppm, 50ppm)
XNXA2SS XNX Cartridge Ammonia 0-1000ppm (200 to 1000ppm, 50ppm)

XNX Stainless Steel Transmitter ATEX/IEC for use with Optima Plus and Searchline Excel Detectors

XNX-AMSI-NNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMSI-NHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMSI-RNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMSI-RHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMSI-MNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMSI-MHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMSI-FNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMSI-FHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel

XNX Aluminuim Transmitter ATEX/IEC for use with Optima Plus and Searchline Excel Detectors

XNX-AMAI-NNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMAI-NHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMAI-RNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMAI-RHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMAI-MNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMAI-MHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMAI-FNNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, configured for Searchpoint Optima Plus and Searchline Excel
XNX-AMAI-FHNNN XNX transmitter, HART over 4-20mA output, ATEX/IEC approved, 5 x M25 entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel

XNX Stainless Steel Transmitter UL/CSA for use with Searchpoint Optima Plus and Searchline Excel Detectors

XNX-UTSI-NNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTSI-NHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTSI-RNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTSI-RHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional alarm and fault relay outputs and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTSI-MNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTSI-MHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional ModBus output and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTSI-FNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output, configured for Searchpoint Optima Plus and Searchline Excel.
XNX-UTSI-FHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted 316 stainless steel, with optional Foundation Fieldbus™ output and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel.

XNX Aluminuim Transmitter UL/CSA for use with Optima Plus and Searchline Excel Detectors

XNX-UTAI-NNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTAI-NHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTAI-RNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs, configured for Searchpoint Optima Plus and Searchline Excel.
XNX-UTAI-RHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional alarm and fault relay outputs and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTAI-MNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTAI-MHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional ModBus output and local HART interface port, configured for Optima Plus and Searchline Excel
XNX-UTAI-FNNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output, configured for Searchpoint Optima Plus and Searchline Excel
XNX-UTAI-FHNNN XNX transmitter, HART over 4-20mA output, UL/CSA approved, 5 x 3/4"NPT entries, painted LM25 aluminium, with optional Foundation Fieldbus™ output and local HART interface port, configured for Searchpoint Optima Plus and Searchline Excel

Searchline Excel Short Range 5m - 40m (15ft - 130ft)

02104-N-XSAA Short range system 5m to 40m ATEX complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates and brackets, Aluminium XNX and junction box
02104-N-XSSA Short range system 5m to 40m ATEX complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates and brackets, Stainless Steel XNX and junction box
02104-N-XSAU Short range system 5m to 40m UL complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Aluminium XNX and junction box
02104-N-XSSU Short range system 5m to 40m UL complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Stainless Steel XNX and junction box
02104-N-XSAC Short range system 5m to 40m CSA complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Aluminium XNX and junction box
02104-N-XSSC Short range system 5m to 40m CSA complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Stainless Steel XNX and junction box
02104-N-NSNA Short range system 5m to 40m ATEX complete TXR and RXR system, SS316 mounting plates and fitting for XNX. Add XNX and Junction box as required

Searchline Excel Medium Range 40m - 120m (130ft - 390ft)

02104-N-XMAA Medium range system 40m to 120m ATEX complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates and brackets, Aluminium XNX and junction box.
02104-N-XMSA Medium range system 40m to 120m ATEX complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates and brackets, Stainless Steel XNX and junction box.
02104-N-XMAU Medium range system 40m to 120m UL complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Aluminium XNX and junction box.
02104-N-XMSU Medium range system 40m to 120m UL complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Stainless Steel XNX and junction box
02104-N-XMAC Medium range system 40m to 120m CSA complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Aluminium XNX and junction box
02104-N-XMSC Medium range system 40m to 120m CSA complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Stainless Steel XNX and junction box

Searchline Excel Long Range 120m - 200m (390ft - 650ft)

02104-N-XLAA Long range system 120m to 200m ATEX complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates and brackets, Aluminium XNX and junction box.
02104-N-XLSA Long range system 120m to 200m ATEX complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates and brackets, Stainless Steel XNX and junction box.
02104-N-XLAU Long range system 120m to 200m UL complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Aluminium XNX and junction box.
02104-N-XLSU Long range system 120m to 200m UL complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Stainless Steel XNX and junction box.
02104-N-XLAC Long range system 120m to 200m CSA complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Aluminium XNX and junction box.
02104-N-XLSC Long range system 120m to 200m CSA complete TXR and RXR system, fully wired with flexible conduit, SS316 mounting plates, brackets, Stainless Steel XNX and junction box.

XNX and Searchline Excel Alignment Kits

02104-N-4006X Short Range Searchline Excel and XNX alignment and conformity kit including telescope, carry case and test filters (no SHC1)
02104-N-4007X Long/Medium Range Searchline Excel and XNX alignment and conformity kit including telescope, carry case and test filters (no SHC1)

XNX Spares and Accessories

1226-9001 XNX Transmitter Spare Pod, Infrared Personality, No Options
1226-9002 XNX Transmitter Spare Pod, Infrared Personality, Relay Option
1226-9003 XNX Transmitter Spare Pod, Infrared Personality, ModBus Options
1226-9004 XNX Transmitter Spare Pod, Infrared Personality, Foundation Fieldbus Options
1226-9009 XNX Transmitter Spare Pod, Millivolt Personality, No Options
1226-9010 XNX Transmitter Spare Pod, Millivolt Personality, Relay Option
1226-9011 XNX Transmitter Spare Pod, Millivolt Personality, ModBus Option
1226-9012 XNX Transmitter Spare Pod, Millivolt Personality, Foundation Fieldbus Options
1226-9005 XNX Transmitter Spare Pod, Electrochemical Personality, No Options
1226-9006 XNX Transmitter Spare Pod, Electrochemical Personality, Relay Option
1226-9007 XNX Transmitter Spare Pod, Electrochemical Personality, ModBus Option
1226-9008 XNX Transmitter Spare Pod, Electrochemical Personality, Foundation Fieldbus Options
XNX-RLY Relay Option
XNX-MB ModBus Option
XNX-FB Foundation Fieldbus Option
1226A0358 Pipe Mount Kit
S3KRMK Remote mounting kit for Series 3000 and XNX EC toxic sensors
1226A0355 Ceiling Mount Bracket Kit
S3KDMK Duct mounting kit for Series 3000 and XNX EC toxic sensors
1226A0382 MPD Interface Adaptor (for use with S3KDMK Duct Mount Kit)
S3KCAL Calibration cup (flow adapter) for Series 3000 and XNX EC toxic sensors
1226A0411 Calibration Gas Flow Adaptor (for use with MPD)
02000-A-1645 Flow Housing Assembly (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)
00780-A-0035 Flow Housing
S3KWP Weatherproof housing with bump test port for use with Series 3000 and XNX EC toxic sensors
02000-A-1640 Weatherproof cap for use with combustible detector including remote gassing nozzle (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)
02000-A-1635 Weatherproof cap for use with toxic detector including remote gassing nozzle (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)
SPXCDCC Collecting cone for use with lighter than air gases
02000-A-1642 Collecting cone for use with flammable detector (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)
2441-0022 UL/CSA Aluminium Junction Box Assembly (for remote mount of MPD sensors)
00780-A-0100 Honeywell Junction Box- Bartec OTB122 With Continuity Plate 1 X 25mm - 3 X 20mm Entries - ATEX Approved
1226A0354 Remote Gassing Kit
1226-0257 M25 Stopping Plug w/ protective cap and O-ring
1226-0258 3/4" NPT Stopping Plug w/ protective cap and O-ring
0235-0238 Replacement O-ring for XNX front cover
1226A0302 Terminal Block Assembly 6-Pin for XNX EC
1226A0304 Terminal Block Assembly 9-Pin for XNX mV
1226A0305 IR Terminal Block Assembly Kit includes: 9-Pin and 2 Pin blocks
1226A0306 Relay Terminal Block Assembly Kit includes: 9-Pin and 2-Pin blocks
1226A0307 Terminal Block Assembly 10-Pin for XNX ModBus
1226-0254 Magnetic Wand/Screwdriver
1226-0408 Small Screwdriver (for use with Relay board and IR personality board)



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Back To Last Page


Zellweger

Fixed Gas Detectors

705 HT Sensor
FS20X Fire and Flame Detector
FS24X Flame Detector
FSL100 Series Flame Detectors
MeshGuard
OELD (Optima Excel Local Display)
ProRAE Guardian
RAEGuard 2 PID Fixed Detector
Searchline Excel Cross-Duct
Searchline Excel Infrared Open Path
Searchline Excel Kits with XNX Transmitters
Searchpoint Optima Plus
Sensepoint
Sensepoint with Junction Box
Sensepoint XCD
Sensepoint XCL
Sensepoint XRL
Series 3000 MkII and MkIII
SS4 UV and UV/IR Flame Detectors
System 57
Touchpoint Plus 19" Rack
Touchpoint Plus Controller
Touchpoint Pro
Unipoint Controller
XNX Universal Transmitter

Semi High Tech

ACM 150 FT-IR Centralised Gas Monitoring System
Chemcassette Toxic Gas Detection
ChemKey TLD Toxic Gas Detector
CM4 Continuous Multipoint Monitor
Fire Sentry FS7 Flame Detector
LeakFilm Liquid Leak Detector
Midas Gas Detector
Satellite XT
SPM Flex Chemcassette
SPM Single Point Monitor
Vertex M Hazardous Gas Monitor
Vertex Multi-Point Toxic Gas Monitoring System

Tubes & Pumps

Colorimetric Gas Detection Tubes and Pump

Want A Quotation?

Please fill out the following fields and we will e-mail you a quotation shortly.
