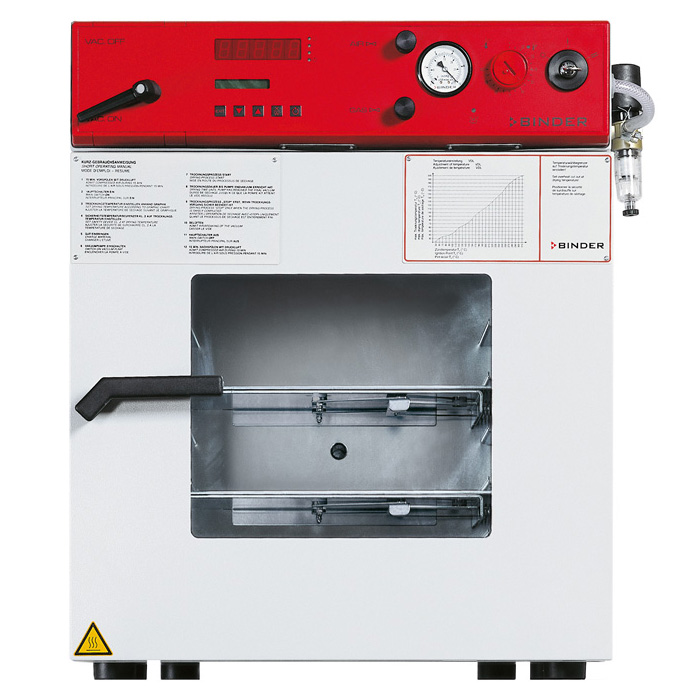

Binder VDL EX Vacuum Drying Ovens

Safety vacuum drying oven for flammable solvents

Same quality as the VDL series, but with some added safety features:

The VDL EX series is designed for operation in explosion hazard areas EX-Zone 2, in full compliance with ATEX requirements.

Our special safety package eliminates any risk.


  Electronically controlled APT.line™ preheating chamber technology with 2 patented expansion racks assures temperature accuracy and reproducible results
  Temperature range 15 °C (27 °F) above ambient temperature up to 200 °C (392 °F)
  Designed for operation in explosion hazard areas Zone 2
  MP controller with 2 programs with 10 sections each, or alternatively 1 program with 20 sections. Integrated week program timer with real time function. Digital temperature setting with an accuracy of one degree. Elapsed time indicator.
  Spring mounted safety glass panel with shatter protection
  2 patented, flexible aluminum expansion racks
  Safety features: pressure control device for heating activated < 125mbar (94 torr), over pressure capsuled instrument panel with compressed air connection and maintenance unit and flame protection gasket.
  Precision-adjustable ventilation valve
  Precision-adjustable inert gas valve with Cross-Flow-Technology
  Analog pressure gauge (display pressure difference between the inner chamber and the ambient pressure)
  Electro polished inner chamber, suction and ventilation tubes, pressure container, expansion racks and ball valve are made of stainless steel
  Door gasket made of tempered silicone
  Independent adjustable temperature safety device class 2 (DIN 12880), with visual temperature alarm
  Measuring port DN 16
  Printer- and communication interface RS 422 interface for use with optional GMP/GLP and FDA guideline 21 CFR Part 11 compliant APT-COM™ DataControlSystem software
  Available as complete system, with module and vacuum pump.
  Features reduced sound level, pactical working height and well balanced system.
  BINDER test certificate



VDL EX 115

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
