Day Impex DILVAC Dewar Flasks
Three distinctive ranges of Dilvac Dewar flasks in container all utilising the proven borosilicate glass inner vessels. Offered in plastic; stove-enamalled steel and hygienic satin finish stainless steel.
Capacities of 200cc-10 litres. Designed for safe use of liquid gases, all Dilvac Dewar flasks are manufactured to exacting standards and represent the highest quality units available today for laboratory use.
The Dewars are designed with practicality and safety in mind. Many of the range of 22 models have features such as vented, clamped lids, carrying handles and rubber-cushioned bases.

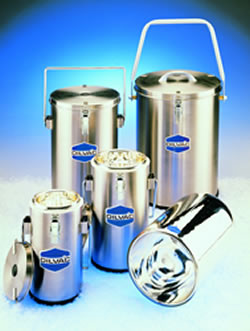

Universal Style: With Handle and Lid
Fitted in highest-quality Stainless Steel containers, therefore rust-free, anti-corrosive, all hygienic and strong. These Dewars have an all Stainless Steel lid with self-contained insulation.
Toggle-clamps secure the lid to the body for safe and water-tight transportation.
| Container + Refill |
Refill |
|
| Part No |
Dia (mm) |
Height (mm) |
Part No |
Internal Dia (mm) |
Internal Depth (mm) |
Capacity (l) |
| SS111 |
116 |
228 |
470/111 |
85 |
185 |
1 |
| SS222 |
142 |
268 |
470/222 |
106 |
205 |
2 |
| SS333 |
182 |
350 |
470/333 |
150 |
280 |
4.5 |
| SS700 |
245 |
335 |
470/700 |
200 |
285 |
7 |
Shallow Form with Wide Mouth
Wide-mouthedshallow glass Dewars, dish-shaped, fitted in stainless steel protective containers.
Can be used with magnetic stirrer, designed to accept standard boiling flask up to 2 litres in capacity, for rapid freezing tempering of stirring rods, pestles, etc.
The shallow form configuration allows for minimum amount of coolant to be used.
| Container + Refill |
Refill |
|
| Part No |
Dia (mm) |
Height (mm) |
Part No |
Internal Dia (mm) |
Internal Depth (mm) |
Capacity (l) |
| SS77
Sh |
105 |
75 |
470/77
Sh |
77 |
50 |
0.17 |
| SS100
Sh |
130 |
90 |
470/100
Sh |
100 |
65 |
0.38 |
| SS115
Sh |
150 |
95 |
470/115
Sh |
115 |
70 |
0.57 |
| SS138
Sh |
175 |
105 |
470/138
Sh |
138 |
80 |
1 |
| SS150
Sh |
186 |
138 |
470/150
Sh |
155 |
120 |
1.9 |
DILVAC Glass Dewars and Specials
Skilfully made in borosilicate glass, DILVAC Dewars are ultra-low evacuated to allow the safe and efficient handling of all liquified gases, freezing-mixtures and specimens.
A wide of sizes and capacities can be supplied either fully silvered, silvered with viewing-strips, or unsilvered. Tailed, spherical or any special shape of Dewar Flask can be manufactured by our craftsmen in our well-equipped factory.
|
|
Blue enamalled Steel: Wide and Narrow Mouth
A range of low-cost utility Dewar flasks specially designed for laboratory, hospital and industrial use.
Safe for use with all liquid gases and ideal for cold traps. High-quality borosilicate glass inner flasks, ultra-low evacuated in attractive blue stove-enamalled tough steel outer container.
There are 12 sizes in this Multi-Purpose, rust-and corrosion-resistant range, including models with an insulated lid, fold-down carrying handle and cushioned base to prevent benchtop damage.
Container +
Refill |
Refill |
|
| Part No |
Dia (mm) |
Height (mm) |
Part No |
Internal Dia (mm) |
Internal Depth (mm) |
Capacity (l) |
| MS111 |
116 |
228 |
470/
111 |
85 |
185 |
1 |
| MS222 |
142 |
268 |
470/
222 |
106 |
205 |
2 |
| MS333 |
182 |
350 |
470/
333 |
150 |
280 |
4.5 |
| MS200 |
245 |
445 |
470/
200 |
200 |
375 |
10 |
| MS40 |
68 |
215 |
470/
40R |
40 |
170 |
0.2 |
| MS57 |
81 |
350 |
470/
57R |
54 |
315 |
0.7 |
| MS67 |
94 |
285 |
470/
67R |
65 |
240 |
0.75 |
| MS77 |
106 |
275 |
470/
77R |
75 |
235 |
1.1 |
| MS90 |
126 |
290 |
470/
90R |
90 |
240 |
1.5 |
| MS100
A |
137 |
280 |
470/
100AR |
100 |
240 |
1.5 |
| MS100
B |
137 |
330 |
470/
100BR |
100 |
290 |
2 |
| MS135 |
175 |
290 |
470/
135R |
135 |
230 |
3 |
Blue Polypropylene: Wide Mouth
The Dilvac '990' Series represents the complete answer in low-cost, high efficiency Dewar Flasks.
Utilising the proven borosilicate glass inner vessels, the '990' Series features a tough, blue plastic, shock-absorbing container with many safety features.
The unit is easily dismantled to facilitate refill changes and all models include a coated handle and a 'push-fit' insulated lid, vented for safe handling of all liquid gases.
Container +
Refill |
Refill |
|
| Part No |
Dia (mm) |
Height (mm) |
Part No |
Internal Dia (mm) |
Internal Depth (mm) |
Capacity (l) |
| 990111 |
145 |
220 |
470/
111 |
85 |
185 |
1 |
|
Please
note - Product designs and specifications are subject to change without
notice. The user is responsible for determining the suitability of this
product.
