Lightning Protection Conductors

furse

Bare aluminium tape

Conductor size (XxY)

Weight per metre

Standard coil size
Part no
12.5 x 1.5mm
0.05kg
50m
TA005
20 x 3mm
0.17kg
50m
TA020
25 x 3mm
0.21kg
50m
TA030
30 x 3mm
0.25kg
50m
TA042
25 x 6mm
0.42kg
50m
TA040
40 x 6mm
0.67kg
50m
TA068
50 x 6mm
0.85kg
50m
TA080

Aluminium tape to BS 2898-1350.

Bare aluminium tape

PVC covered aluminium tape

Conductor size (XxY)

Weight per metre

Standar coil size

Colour range
Black
18B29
Green
*
Grey
00A07
Stone
08B23
White
10B15
Brown
06C39
12.5 x 1.5mm
0.09kg
50m
TA100
-
-
-
-
-
20 x 3mm
0.25kg
50m
TA104
-
-
-
-
-
25 x 3mm
0.30kg
50m
TA105
TA110
TA115
TA120
TA125
TA130

Aluminium tape to BS 2898-1350.
PVC colours to BS 5252. * Green to BS 6746C. Other colours are available to order. Contact
Furse for details. Furse takes every precaution to ensure the UV stability of its PVC coverings, but as with all plastics, colour variation will occur over time.

PVC covered aluminium tape

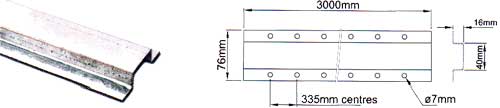

Anti-vandal down conductor guard

Length

Weight each

Part no
3000mm
2.90kg
AV005

Recommended fixing - round head woodscrew 1 1/2" x no.10 and wall plug.
Suitable for use with 25 x 3mm tape.

Anti-vandal down conductor guard
