How to apply earthing equipment

Earth Plates and earth rod seals

furse


Earth plate - solid copper

Size

Total surface area

Weight each

Part no
600 x 600 x 1.5mm
0.72mē
5.00kg
PE005
900 x 900 x 1.5
1.63mē
11.21kg
PE015
600 x 600 x 3m
0.73mē
9.74kg
PE010
900 x 900 x 3mm
1.63mē
21.74kg
PE020

BS 2874 - C101/C103

Earth plate - solid copper

Earth plate - lattice copper

Size

Total surface area

Weight each

Part no
600 x 600 x 3mm
0.31mē
3.98kg
PE110
900 x 900 x 3mm
0.65mē
7.20kg
PE120

BS EN 13601 (formerly BS 1432)

Earth plate - lattice copper

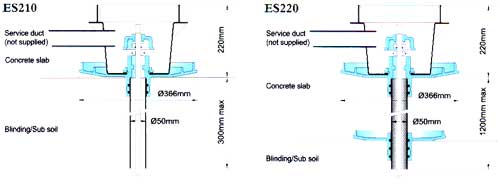

Earth rod seals

A waterproof earth electrode seal for use in constructions where internal earths are specified.

The unique design allows the seal to be effective across a broad range of rod diameters from a nominal 1/2" to 3/4 " rod, by the use of various compression rings and seals. For use with PT205 - lightweight inspection pit.

Description

Weight each

Part no

Single-flange earth rod seal (for most applications)
2.00kg
ES210
Double-flange earth rod seal (for deep concrete sub-layers
3.20kg
ES220

BS EN 13601 (formerly BS 1432)

Earth rod seals

A separate datasheet is available should you require further information

pdf
