Structural lightning protection design considerations

Air terminals and fixings
furse

Rod Brackets

Rod Diameter
Rod Material
Weight Each
Part No
15mm
Copper
0.90kg
BR105
15mm
Aluminium
0.28kg
BR005

Recommended fixing - round head woodscrew 1 5/8 " x no.16 and wall plug.

rod brackets

Rod to tape coupling

Rod Diameter
Thread Diameter
Rod Material
Weight Each
Part No
15mm
16mm
Copper
0.23kg
CG600
15mm
16mm
Aluminium
0.08kg
CG500

Used in conjunction with rod brackets above.

Rod to tape coupling

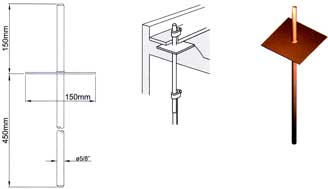

Puddle flange

Material
Weight Each
Part No
Copper
1.54kg
PF105
Aluminium
0.50kg
PF005

For taking lightning conductors through roofs etc.

Puddle flange
