Furse - combined mounting and earthing kits

Home › Lightning & Surges Protection › Electronic Systems Protection

Enables groups of protectors to be simultaneously mounted and earthed via their earth stud.
Suitable for installing protectors with one or two earth studs on their top face.
Available with 4, 8, 16 and 32 mounting holes (Note, protectors with two earth studs will occupy two mounting holes).

Application

Use CME kits to simultaneously mount and earth groups of single and double earth stud protectors. Each single earth stud protector requires one CME mounting position and each double earth stud protector requires two CME mounting positions.

Single earth stud protectors are:

   ESP 06D            ESP 06E
   ESP 15D            ESP 15E
   ESP 30D            ESP 30E
   ESP 50D            ESP 50E
   ESP TN
   ESP CCTV/B      ESP CCTV/T

Double earth stud protectors are:

   ESP 120-5A       ESP 120-16A
   ESP 250-5A       ESP 240-16A
   ESP ThinNet     ESP ThickNet

Once you know how many CME mounting positions you require choose a CME kit to suit:

CME 4 has 4 mounting positions
CME 8 has 8 mounting positions
CME 16 has 16 mounting positions
CME 32 has 32 mounting positions

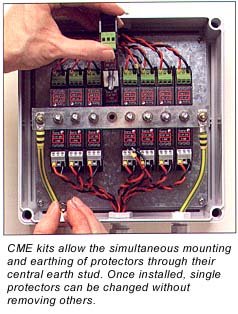

CME kit allows the simultaneous mounting and earthing of protectors

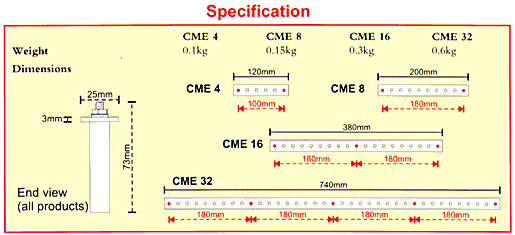

CME 4

Features and benefits

Enables quick and easy installation of protectors for added convenience.

Speedy installation of groups of protectors saves you time and money.

Individual protectors can be changed (without needing to remove others).

Sturdy construction.
Supplied with a choice of flat and round ended fixing screws to suit your application.

Easy to follow installation instructions.

5 year warranty.

Installation

The earth bar is supported by a series of mounting pillars (which are fixed to the cubicle or box base). Protectors are attached to the CME's earth bar via their earth stud(s) and earthed with shared connections to earth (we suggest one earth connection per mounting pillar).

Suitable accessories

Enclosures suitable for a CME 4 and its associated protectors (WBX 4/GS), CME 8 and protectors (WBX 8/GS) or one or two CME 16 and protectors (WBX 16/2/G) can be found here.
