Structural lightning protection design considerations

Conductor fixings
furse

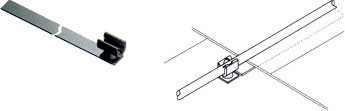

Non metallic slate holdfast

Conductor diameter

Colour
Weight each
Part no
8mm
Brown
0.03kg
HF176
8mm
Grey
0.03kg
HF191

Non metallic slate holdfast

Variations of tail length, clip size and clip colour can be made to order as special
items. Standard tail length 500mm.

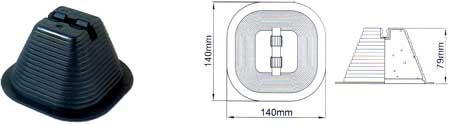

Pyramid holdfast
Type
Weight each

Part no

Filled
0.97kg
HF975

Supplied filled with concrete, they can be used to hold conductors on flat surfaces. The lip around the base allows them to be built into bitumen type roofs, etc. Suitable for 8mm diameter bare conductor.


|
