Radiodetection Pearpoint GatorCam4 System
GatorCam4™ pushrod inspection systems
redefine convenience and control in
pipeline inspection.

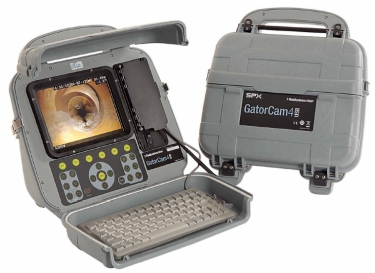

At the heart of the GatorCam4 system is the weatherproof GatorCam4USB controller,
which displays color footage in digital quality on an ultra-bright 8" TFT screen. USB flash
drive and Compact Flash storage options along with PC connectivity provide flexible
data storage and comprehensive reporting capabilities.
GatorCam4 systems have been designed to deliver controllable and high quality video
inspection for any situation, from residential work and commercial use through to
specialist plant and municipal applications.
Fully sealed 1" (25mm) and 2" (50mm) cameras can be mounted on a range of rods:
from the ultra-flexible 100' (30m) Plumbers reel, designed for accessing tight corners,
to the 500' (150m) Specialist reel designed to push for long distances. A range of
compatible sondes, skids, brushes and accessories completes the package.
Digital recordings
The fully digital controller system architecture provides precise control over inspections
and recordings. Digital rotate, pan and zoom functions let you focus in on problem areas
during live or recorded inspections.
Video and still images are recorded directly onto USB memory sticks or Compact Flash
cards for easy management and transfer.
Tough and convenient high speed USB flash drives or Compact Flash cards are widely
available in variety of memory sizes, so you can choose the type and size of storage
device that meets your needs. With no moving parts your valuable data is protected
against shocks and impacts.
One-touch recording and still picture capture
A single key press on the ruggedized keypad records high quality, full digital video, which
is automatically time and date stamped and logged against the job that you are working
on. Similarly, still pictures can be captured, inspected and filed at any point during your
inspection with a single key press.
An 8Gb storage device is capable of storing up to 7 hours of high quality video.
To enhance the inspection, audio can be added to recordings via the optional
microphone headset, and text commentary incorporated using the splashproof keyboard.
To add flexibility, up to 20 pages of text can be stored into the controller module.
Ruggedized construction
Despite weighing only 12lb (5.5kg), the GatorCam4USB controller is designed to
operate reliably in harsh weather conditions. The tough polypropylene casing is designed
to resist scuffs and impacts, while the comprehensive sealing gives an IP53 rating when
operating - and IP55 with the covers closed, minimizing the risk of damage from debris
or water ingress. The cameras are designed to operate at up to 11 bar of pressure, the
equivalent of a depth of 330' (100m) of water.
Outstanding picture quality
The GatorCam4 system offers two cameras, a 1" (25mm) and a 2" (50mm), equipped
with high resolution sensors and the latest generation ultra-bright white LEDs, which
combine to deliver a crisp, clear picture in most pipe conditions.
The GatorCam4 self leveling 2" camera features a sapphire window to protect its lens
and a sensor which boasts over 39% higher horizontal resolution than its predecessor
(460 vs 330 usable horizontal TVL).
The GatorCam4 1" camera features a tough polycarbonate cover to protect the LEDs all
in a small, compact package, specifically designed to help navigating through bends.
Both cameras come with a manual focus tool which allows you to adjust the focus of
your camera to the correct pipe size ensuring you do not miss the smallest defect.
Packaged in tough 303 stainless steel cases, they can withstand 11 bar of pressure.
|

USB flash drives
The GatorCam4USB command module supports the popular USB flash drive: simply
plug your own or your customer's high speed memory stick into the USB slot and start
recording and storing inspection videos, photos and observations directly into it.
USB memory sticks can be connected to any PC for direct access to your digital data
without the need of an external card reader or the GatorCam4USB controller.
Plumbers reel
Where extra flexibility is needed, the Plumbers
reel coupled with the compact 1" camera offers
outstanding performance around tight bends and
traps, negotiating most traps (from 2"/50mm) and
bends (from 1¼" / 32mm). The Plumbers system is
the ideal tool for your small pipe plumbing needs.
The flexible rod termination has a built-in transmitter
sonde (512Hz/640Hz) which allows you to pinpoint
its location and depth without compromising
maneuverability around tight corners.
Easy to use software interface
The GatorCam4USB software has been specifically developed to make the GatorCam4
system easy and intuitive to use. Setting up and customizing your controller is very
simple thanks to the color based list menus, which clearly define all the options available.
Adding text to your survey is never more than one keyboard click away. Browse or edit
up to 20 pages of text or automatically use them as titles at the beginning of your video
recordings.
Organize work effectively
The GatorCam4USB controller quickly organizes your work in "Job" folders which are
linked to the inspection you are carrying out, making the review and storage of videos,
photos and observations straightforward.
Jobs can be created very quickly at the start of your first recording by entering a
minimum set of information or by accessing the "Job Browser" menu and entering
detailed information about your client, site and survey.
Jobs can be expanded by adding multiple surveys to the site you are inspecting or by
adding different sites to the client you are working for.
Be more productive on-site
Use the comprehensive, built-in, GatorCam4USB reporting system to quickly fill out
report observations on-site without the need for extra equipment. Report templates are
customizable to meet your own requirements.
Entering detailed observation, including grading and photos, could not be easier, thanks
to the built-in WRC™, PACP or custom made defect code lists.
Produce a SEWER.DAT report file directly from your GatorCam4USB controller.
Manage your data and produce reports
The FlexiSight™ Manager software is the ideal PC companion of the GatorCam4USB
controller. With this Windows XP/Windows Vista/Windows 7 compatible software,
you will be able to import, store and manage all your digital inspection data.
Use the "Job Browser" screen to quickly import and browse all your saved jobs.
Use the "Surveys" screen to review and edit videos, take snapshots, annotate photos and
review, edit or create observations.
Produce comprehensive customizable reports, with your company logo, incorporating
pipe graphics and color coded defect grading (requires Microsoft Word 97 or higher).

Data Sheet
|
Ordering Information
PAL PLUMBERS SYSTEMS
10/GC4-PLUMB-PAL1 flexiprobe P341 with 1"/25mm PAL camera, Plumbers 100'/30m rod & 640Hz flexisonde (systems with "+" include internal battery)
10/GC4-PLUMB-PAL1+ flexiprobe P341 with 1"/25mm PAL camera, Plumbers 100'/30m rod & 640Hz flexisonde (systems with "+" include internal battery)
10/GC4-PLUMB-PAL1-60 flexiprobe P341 with 1"/25mm PAL camera, Plumbers 200'/60m rod & 640Hz flexisonde (systems with "+" include internal battery)
10/GC4-PLUMB-PAL1-60 flexiprobe P341 with 1"/25mm PAL camera, Plumbers 200'/60m rod & 640Hz flexisonde (systems with "+" include internal battery)
Each system consists of:-
GC4 Controller, with USB Interface Cable A to B 3'/1m
GC4 Plumbers Reel- 100'/30m or 200'/60m - 640Hz Sonde
GC4 1"/25mm PAL Camera
GC4 skid set (2" to 6"/50mm to 150mm) and skidball (1.4"/36mm)
MINI PAL SYSTEMS
10/GC4-MINI-PAL1 flexiprobe P341 with 1"/25mm PAL camera, 640Hz flexisonde, brush skids & 115'/35m rod (systems with "+" include internal battery)
10/GC4-MINI-PAL1+ flexiprobe P341 with 1"/25mm PAL camera, 640Hz flexisonde, brush skids & 115'/35m rod (systems with "+" include internal battery)
10/GC4-MINI-PAL2 flexiprobe P341 with 2"/50mm PAL camera, 640Hz flexisonde, brush skids & 115'/35m rod (systems with "+" include internal battery)
10/GC4-MINI-PAL2+ flexiprobe P341 with 2"/50mm PAL camera, 640Hz flexisonde, brush skids & 115'/35m rod (systems with "+" include internal battery)
Each system consists of:-
GC4 Controller, with USB Interface Cable A to B 3'/1m
GC4 115'/35m Reel
GC4 PAL Camera: 1"/25mm (with 1.7"/42mm skidball) or 2"/50mm (with 2.6"/66mm skidball)
GC4 Skid Set (2" to 6"/50mm to 150mm)
640Hz 1"/25mm or 1.4"/35mm flexisonde
MIDI PAL SYSTEMS
10/GC4-MIDI-PAL1-60 flexiprobe P342 with 1"/25mm PAL camera, 640Hz flexisonde, brush skids & 200'/60m rod (systems with "+" include internal battery)
10/GC4-MIDI-PAL1-60+ flexiprobe P342 with 1"/25mm PAL camera, 640Hz flexisonde, brush skids & 200'/60m rod (systems with "+" include internal battery)
10/GC4-MIDI-PAL2-60 flexiprobe P342 with 2"/50mm PAL camera, 640Hz flexisonde, brush skids & 200'/60m rod (systems with "+" include internal battery)
10/GC4-MIDI-PAL2-60+ flexiprobe P342 with 2"/50mm PAL camera, 640Hz flexisonde, brush skids & 200'/60m rod (systems with "+" include internal battery)
10/GC4-MIDI-PAL1-120 flexiprobe P342 with 1"/25mm PAL camera, 640Hz flexisonde, brush skids & 400'/120m rod (systems with "+" include internal battery)
10/GC4-MIDI-PAL1-120+ flexiprobe P342 with 1"/25mm PAL camera, 640Hz flexisonde, brush skids & 400'/120m rod (systems with "+" include internal battery)
10/GC4-MIDI-PAL2-120 flexiprobe P342 with 2"/50mm PAL camera, 640Hz flexisonde, brush skids & 400'/120m rod (systems with "+" include internal battery)
10/GC4-MIDI-PAL2-120+ flexiprobe P342 with 2"/50mm PAL camera, 640Hz flexisonde, brush skids & 400'/120m rod (systems with "+" include internal battery)
Each system consists of:-
GC4 Controller, with Controller mounting plate kit and USB Interface cable A to B, 3'/1m
MIDI 200'/60m or 400'/120m Reel
P340 PAL Camera: 1"/25mm (with 1.7"/42mm skidball) or 2"/50mm (with 2.6"/66mm skidball)
P340 2" to 6"/50mm to 150mm Skid Set
640Hz 1"/25mm or 1.4"/35mm flexisonde
SPECIALIST PAL SYSTEMS
10/GC4-SPECIALIST-PAL1 flexiprobe P343 with 1"/25mm PAL camera, 640Hz flexisonde, brush skids & 500'/150m rod (systems with "+" include internal battery)
10/GC4-SPECIALIST-PAL1+ flexiprobe P343 with 1"/25mm PAL camera, 640Hz flexisonde, brush skids & 500'/150m rod (systems with "+" include internal battery)
10/GC4-SPECIALIST-PAL2 flexiprobe P343 with 2"/50mm PAL camera, 640Hz flexisonde, brush skids & 500'/150m rod (systems with "+" include internal battery)
10/GC4-SPECIALIST-PAL2+ flexiprobe P343 with 2"/50mm PAL camera, 640Hz flexisonde, brush skids & 500'/150m rod (systems with "+" include internal battery)
Each system consists of:-
GC4 Controller, with Controller mounting plate kit and USB Interface cable A to B, 3'/1m
SPECIALIST 500'/150m Reel
GC4 PAL Camera: 2"/50mm (with 2.6"/66mm skidball) or 1"/25mm
GC4 2" to 6"/50mm to 150mm Skid Set
640Hz 1"/25mm or 1.4"/35mm flexisonde
GC4 PAL DUAL REEL SYSTEM
10/GC4PAL-30-60-DUAL flexiprobe P342 200'/60m reel with 2"/50mm PAL camera + 640Hz flexisonde and P341 100'/30m plumbers reel, 640Hz, with 1"/25mm PAL camera (systems with "+" include internal battery)
10/GC4PAL-30-60-DUAL+ flexiprobe P342 200'/60m reel with 2"/50mm PAL camera + 640Hz flexisonde and P341 100'/30m plumbers reel, 640Hz, with 1"/25mm PAL camera (systems with "+" include internal battery)
10/GC4PAL-60-60-DUAL flexiprobe P342 200'/60m reel with 2"/50mm PAL camera + 640Hz flexisonde and P341 200'/60m plumbers reel, 640Hz, with 1"/25mm PAL camera (systems with "+" include internal battery)
10/GC4PAL-60-60-DUAL+ flexiprobe P342 200'/60m reel with 2"/50mm PAL camera + 640Hz flexisonde and P341 200'/60m plumbers reel, 640Hz, with 1"/25mm PAL camera (systems with "+" include internal battery)
Each system consists of:-
GC4 Controller, with Controller mounting plate kit (x2) and USB Interface cable A to B, 3'/1m
MIDI 200'/60m Reel
GC4 Plumbers Reel - 100'/30m or 200'/60m- 640Hz Sonde
GC4 PAL Cameras: 1"/25mm and 2"/50mm, with 1.4"/36mm, 1.7"/42mm and 2.6"/66mm skidballs
GC4 2" to 6"/50mm to 150mm Skid Set (x2)
640Hz 1.4"/35mm flexisonde
NTSC PLUMBERS SYSTEMS
10/GC4-PLUMB-NTSC1 flexiprobe P341 with 1"/25mm NTSC camera, Plumbers 100'/30m rod & 512Hz flexisonde (systems with "+" include internal battery)
10/GC4-PLUMB-NTSC1+ flexiprobe P341 with 1"/25mm NTSC camera, Plumbers 100'/30m rod & 512Hz flexisonde (systems with "+" include internal battery)
10/GC4-PLUMB-NTSC1-60 flexiprobe P341 with 1"/25mm NTSC camera, Plumbers 200'/60m rod & 512Hz flexisonde (systems with "+" include internal battery)
10/GC4-PLUMB-NTSC1-60+ flexiprobe P341 with 1"/25mm NTSC camera, Plumbers 200'/60m rod & 512Hz flexisonde (systems with "+" include internal battery)
Each system consists of:-
GC4 Controller, with USB Interface Cable A to B 3'/1m
GC4 Plumbers Reel- 100'/30m or 200'/60m - 512Hz Sonde
GC4 1"/25mm NTSC Camera
GC4 skid set (2" to 6"/50mm to 150mm) and skidball (1.4"/36mm)
MINI NTSC SYSTEMS
10/GC4-MINI-NTSC1 flexiprobe P341 with 1"/25mm NTSC camera, 512Hz flexisonde, brush skids & 115'/35m rod (systems with "+" include internal battery)
10/GC4-MINI-NTSC1+ flexiprobe P341 with 1"/25mm NTSC camera, 512Hz flexisonde, brush skids & 115'/35m rod (systems with "+" include internal battery)
10/GC4-MINI-NTSC2 flexiprobe P341 with 2"/50mm NTSC camera, 512Hz flexisonde, brush skids & 115'/35m rod (systems with "+" include internal battery)
10/GC4-MINI-NTSC2+ flexiprobe P341 with 2"/50mm NTSC camera, 512Hz flexisonde, brush skids & 115'/35m rod (systems with "+" include internal battery)
Each system consists of:-
GC4 Controller, with USB Interface Cable A to B 3'/1m
GC4 115'/35m Reel
GC4 NTSC Camera: 1"/25mm (with 1.7"/42mm skidball) or 2"/50mm (with 2.6"/66mm skidball)
GC4 Skid Set (2" to 6"/50mm to 150mm)
512Hz 1"/25mm or 1.4"/35mm flexisonde
MIDI NTSC SYSTEMS
10/GC4-MIDI-NTSC1-60 flexiprobe P342 with 1"/25mm NTSC camera, 512Hz flexisonde, brush skids & 200'/60m rod (systems with "+" include internal battery)
10/GC4-MIDI-NTSC1-60+ flexiprobe P342 with 1"/25mm NTSC camera, 512Hz flexisonde, brush skids & 200'/60m rod (systems with "+" include internal battery)
10/GC4-MIDI-NTSC2-60 flexiprobe P342 with 2"/50mm NTSC camera, 512Hz flexisonde, brush skids & 200'/60m rod (systems with "+" include internal battery)
10/GC4-MIDI-NTSC2-60+ flexiprobe P342 with 2"/50mm NTSC camera, 512Hz flexisonde, brush skids & 200'/60m rod (systems with "+" include internal battery)
10/GC4-MIDI-NTSC1-120 flexiprobe P342 with 1"/25mm NTSC camera, 512Hz flexisonde, brush skids & 400'/120m rod (systems with "+" include internal battery)
10/GC4-MIDI-NTSC1-120+ flexiprobe P342 with 1"/25mm NTSC camera, 512Hz flexisonde, brush skids & 400'/120m rod (systems with "+" include internal battery)
10/GC4-MIDI-NTSC2-120 flexiprobe P342 with 2"/50mm NTSC camera, 512Hz flexisonde, brush skids & 400'/120m rod (systems with "+" include internal battery)
10/GC4-MIDI-NTSC2-120+ flexiprobe P342 with 2"/50mm NTSC camera, 512Hz flexisonde, brush skids & 400'/120m rod (systems with "+" include internal battery)
Each system consists of:-
GC4 Controller, with Controller mounting plate kit and USB Interface cable A to B, 3'/1m
MIDI 200'/60m or 400'/120m Reel
P340 NTSC Camera: 1"/25mm (with 1.7"/42mm skidball) or 2"/50mm (with 2.6"/66mm skidball)
P340 2" to 6"/50mm to 150mm Skid Set
512Hz 1"/25mm or 1.4"/35mm flexisonde
SPECIALIST NTSC SYSTEMS
10/GC4-SPECIALIST-NTSC1 flexiprobe P343 with 1"/25mm NTSC camera, 512Hz flexisonde, brush skids & 500'/150m rod (systems with "+" include internal battery)
10/GC4-SPECIALIST-NTSC1+ flexiprobe P343 with 1"/25mm NTSC camera, 512Hz flexisonde, brush skids & 500'/150m rod (systems with "+" include internal battery)
10/GC4-SPECIALIST-NTSC2 flexiprobe P343 with 2"/50mm NTSC camera, 512Hz flexisonde, brush skids & 500'/150m rod (systems with "+" include internal battery)
10/GC4-SPECIALIST-NTSC2+ flexiprobe P343 with 2"/50mm NTSC camera, 512Hz flexisonde, brush skids & 500'/150m rod (systems with "+" include internal battery)
Each system consists of:-
GC4 Controller, with Controller mounting plate kit and USB Interface cable A to B, 3'/1m
SPECIALIST 500'/150m Reel
GC4 NTSC Camera: 2"/50mm (with 2.6"/66mm skidball) or 1"/25mm
GC4 2" to 6"/50mm to 150mm Skid Set
512Hz 1"/25mm or 1.4"/35mm flexisonde
GC4 NTSC DUAL REEL SYSTEM
10/GC4NTSC-30-60-DUAL flexiprobe P342 200'/60m reel with 2"/50mm NTSC camera + 512Hz flexisonde and P341 100'/30m plumbers reel, 512Hz, with 1"/25mm NTSC camera (systems with "+" include internal battery)
10/GC4NTSC-30-60-DUAL+ flexiprobe P342 200'/60m reel with 2"/50mm NTSC camera + 512Hz flexisonde and P341 100'/30m plumbers reel, 512Hz, with 1"/25mm NTSC camera (systems with "+" include internal battery)
10/GC4NTSC-60-60-DUAL flexiprobe P342 200'/60m reel with 2"/50mm NTSC camera + 512Hz flexisonde and P341 200'/60m plumbers reel, 512Hz, with 1"/25mm NTSC camera (systems with "+" include internal battery)
10/GC4NTSC-60-60-DUAL+ flexiprobe P342 200'/60m reel with 2"/50mm NTSC camera + 512Hz flexisonde and P341 200'/60m plumbers reel, 512Hz, with 1"/25mm NTSC camera (systems with "+" include internal battery)
Each system consists of:-
GC4 Controller, with Controller mounting plate kit (x2) and USB Interface cable A to B, 3'/1m
MIDI 200'/60m Reel
GC4 Plumbers Reel - 100'/30m or 200'/60m- 512Hz Sonde
GC4 NTSC Cameras: 1"/25mm and 2"/50mm, with 1.4"/36mm, 1.7"/42mm and 2.6"/66mm skidballs
GC4 2" to 6"/50mm to 150mm Skid Set (x2)
512Hz 1.4"/35mm flexisonde
|
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
Back To Last Page
|
|
