Carbolite TF Tube Furnaces

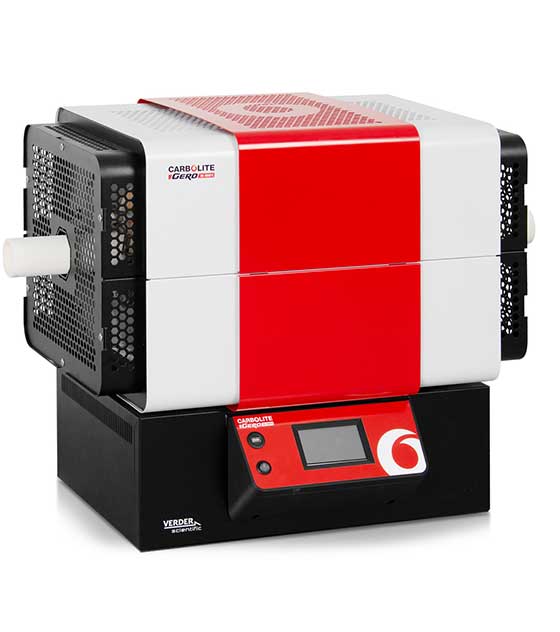

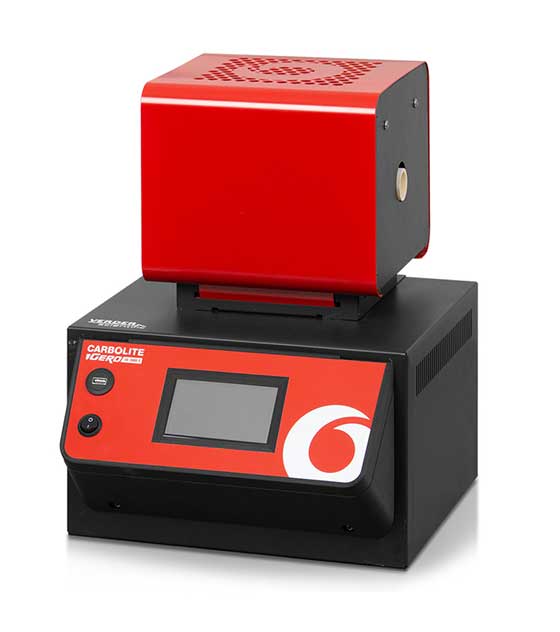

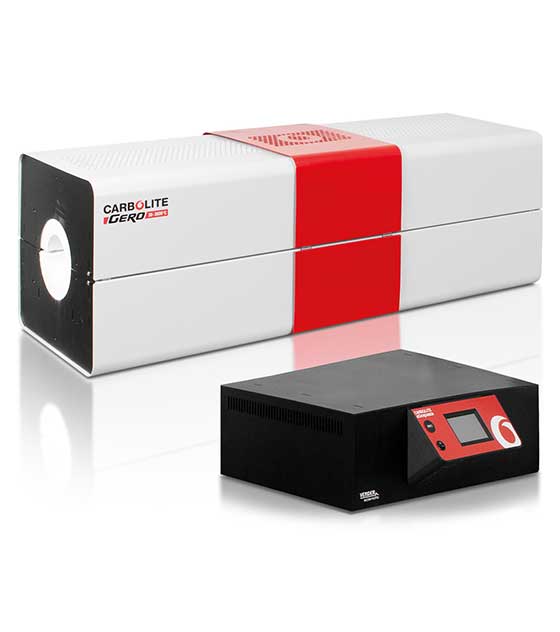

The Carbolite Gero TF tube furnace range incorporates high-quality heating elements and innovative thermal insulation design to achieve first class performance while maintaining both reduced case temperatures and power consumption.

Key Features

  • Max temp: 1100, 1200, 1600°C
  • Furnace Ø: 32, 60, 100, 125 mm
  • Heated lengths: 150, 180, 300, 450, 600, 800, 1000, 1200 mm
  • Number of heated zones: 1 zone or 3 zones

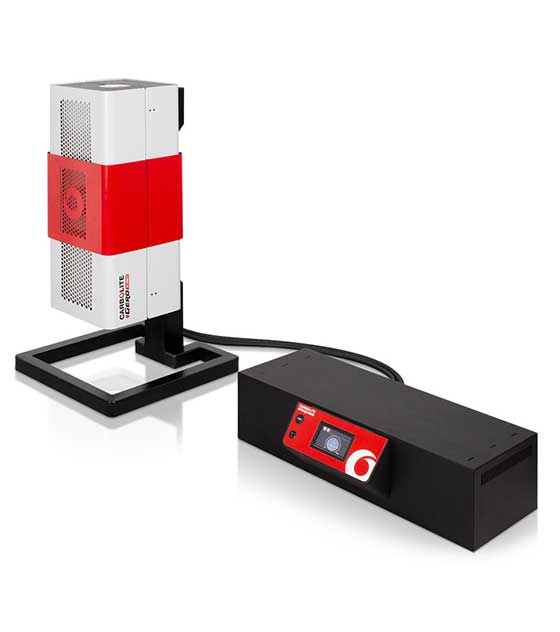

  • Orientation: All models available orientated either horizontally or vertically
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The TF range has been designed with flexibility in mind. Slide-in accessory work tubes and the use of tube adapters allow a single furnace to accommodate a variety of tube diameters, whilst the work tubes themselves can easily be exchanged to meet the different physical or chemical requirements of a process.

Optional work tube packages enable users to equip the TF for operation under vacuum or modified atmosphere.

Carbolite Gero's new tube furnace range is at the pinnacle of furnace design. The culmination of over 80 years of experience in thermal engineering; combining the latest technological developments with solid construction, high-quality components and a sleek, modern aesthetic.

High Quality Heating Elements

Excellent temperature uniformity
Fast heat-up and cool-down rates
Unsurpassed temperature uniformity along the entire heated length

High Quality Thermal Insulation

Low energy consumption
Low external case temperature
Designed for longevity

Single Zone Models

Model Max temp [°C] Heat-up time [mins] Furnace Ø [mm] Heated lengths [mm] Recommended tube length for use in air / modified atmosphere [mm] Dimensions
H x W x D [mm]		 Control Box
H x W x D [mm]		 Uniform length ±5°C [mm] Max power [W] Weight [kg]
TF1 11/32/150 1100 27 32 150 300 / 500 445 x 335 x 470 220 x 335 x 450 58 575 15
TF1 12/60/150 1200 40 60 150 430 / 600 560 x 485 x 480 220 x 485 x 480 93 750 31
TF1 12/60/300 1200 35 60 300 580 / 750 560 x 495 x 480 220 x 485 x 480 177 1500 37
TF1 12/60/450 1200 45 60 450 730 / 900 560 x 645 x 480 220 x 635 x 480 318 2000 49
TF1 12/60/600 1200 45 60 600 880 / 1050 560 x 795 x 480 220 x 785 x 480 474 2500 56
TF1 12/125/400 1200 88 125 400 750 / 1000 645 x 665 x 575 220 x 655 x 480 284 1860 71
TF1 12/125/600 1200 90 125 600 950 / 1200 645 x 865 x 575 220 x 855 x 480 456 2510 89
TF1 12/125/800 1200 85 125 800 1150 / 1400 430 x 1065 x 575 220 x 655 x 480* 635 3160 102
TF1 12/125/1000 1200 80 125 1000 1350 / 1600 430 x 1265 x 575 220 x 655 x 480* 847 3810 120
TF1 12/125/1200 1200 82 125 1200 1550 / 1800 430 x 1465 x 575 220 x 655 x 480* 969 4460 134
TF1 16/60/180 1600 - 60 180 680 / 900 650 x 595 x 585 220 x 470 x 480 100 2500 43
TF1 16/60/300 1600 - 60 300 800 / 1020 650 x 715 x 585 220 x 590 x 480 175 4000 51
TF1 16/100/450 1600 - 100 450 1030 / 1250 775 x 940 x 705 220 x 755 x 605 - 6000 90
TF1 16/100/600 1600 - 100 600 1180 / 1400 775 x 1090 x 705 220 x 905 x 605 425 7000 100

Three Zone Models

Model Max temp
[°C]		 Heat-up time
[mins]
 Furnace Ø
[mm]		 Heated lengths
[mm]		 Recommended tube length for use in air / modified atmosphere
[mm]		 Dimensions
H x W x D [mm]		 Control Box
H x W x D [mm]		 Uniform length ±5°C [mm] Max power
[W]		 Weight
[kg]
TF3 12/60/450 1200 55 60 450 730 / 900 560 x 645 x 480 220 x 635 x 480 340 2000 49
TF3 12/60/600 1200 55 60 600 880 / 1050 560 x 795 x 480 220 x 785 x 480 501 2500 56
TF3 12/125/600 1200 90 125 600 950 / 1200 645 x 865 x 575 220 x 655 x 480* 507 2510 89
TF3 12/125/800 1200 85 125 800 1150 / 1400 430 x 1065 x 575 220 x 655 x 480* 715 3160 102
TF3 12/125/1000 1200 80 125 1000 1350 / 1600 430 x 1265 x 575 220 x 655 x 480* 855 3810 120
TF3 12/125/1200 1200 82 125 1200 1550 / 1800 430 x 1465 x 575 220 x 655 x 480* 1055 4460 134
TF3 16/100/450 1600 - 100 450 1030 / 1250 775 x 940 x 705 220 x 755 x 605 375 6800 90
TF3 16/100/600 1600 - 100 600 1180 / 1400 775 x 1090 x 705 220 x 905 x 605 460 8000 100
