Drager PAS AirPack 2


Designed using leading technology and materials, Dragerís range of heavy duty airline apparatus is ideal for use where an extended duration of breathing air is called for.

Chemical tank cleaning, toxic spillages or certain tasks when working on offshore installations are all made easier and more comfortable when using the PAS AirPack 2.

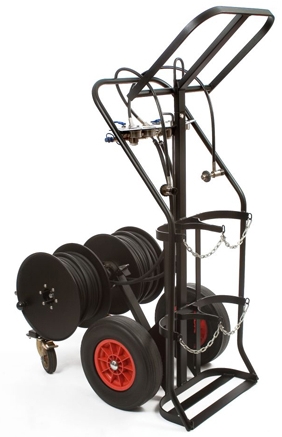

Uninterrupted air supply is provided by the trolley-mounted cylinder(s) to the wearer via a hose reel. As the AirPack can be easily re-located and therefore positioned in a safe zone which is in close proximity to working area, the user need only wear a lightweight harness, such as Dragerís PAS Colt, during operation. This allows the wearer a greater freedom of movement, and less stress and fatigue than they would be subjected to if wearing a conventional self contained breathing apparatus unit.

The PAS AirPack 2 is able to accommodate one or two compressed air cylinders of up to 50 litres in capacity and is constructed from an anti-static powder coated steel material. The unit can be supplied with a fully approved lifting eye, enabling safe transfer when elevated working areas may be unavoidable. The rear wheel of the trolley also incorporates an easy to administer foot brake, which prevents any inadvertent movement of the unit whilst in operation.

It is available with either one or two pressure reducers and two hose reels allowing joint use of the system or for two completely independent systems to run concurrently. A 50 metre length of hose is supplied with AirPack 2 as standard, this can be extended to a length of 100 metres with a range of extension hoses. The trolley hose reel connector is protected with a cover to minimise inadvertent damage being caused.


Datasheet



The hose reel is equipped with a winding handle to allow the hose to be easily re-wound onto the reel after use. Outgoing hose distribution is also controlled with a braking system in order to prevent unnecessary unwinding and potential entanglement.

The PAS AirPack 2 benefits from the world renowned, tried and tested, pneumatics system used on Dragerís successful PSS range of compressed air breathing apparatus. The system incorporates a safety pressure relief valve and the pressure reducer is shrouded in a protective plate for additional safety.

Ordering Information


Trolley, 2 Pneumatics, 2 Hose Reels 3352276

Trolley, 2 Pneumatics, 2 Hose Reels complete with Lifting Eye 3352236

Trolley, 1 Pneumatic, 1 Hose Reel 3352994

Trolley, 1 Pneumatic, 1 Hose Reel complete with Lifting Eye 3352995



Drager

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
