Polytron 3000

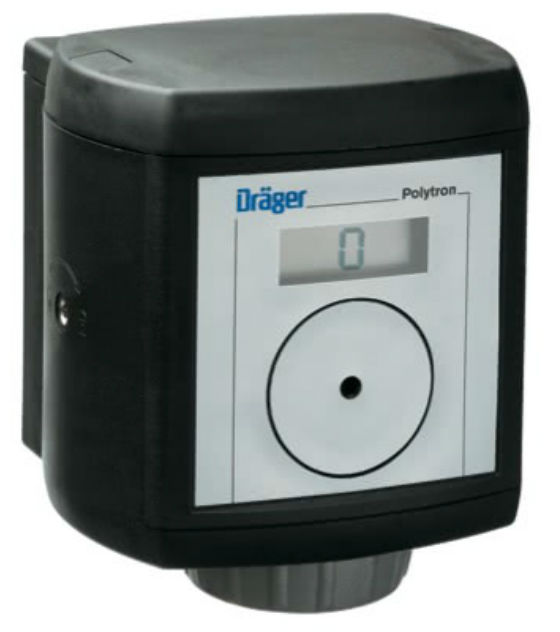

The Drager Polytron 3000 is an intrinsically safe gas detector for the continuous monitoring of toxic gases and oxygen in ambient air. It is the part of a new generation of gas detectors developed on a modular platform. Communication to the central control system is done via a 4 to 20 mA signal.

The Drager Polytron 3000 is available with or without display, in over 60 versions for different gases and set ranges.


Simple, quick installation - The two component concept of a Docking Station and a Dräger Polytron 3000 electronics saves time and money. The Docking Station can be pre-installed - mounting and wiring it into place separately - while protected by a rain and dust cover until commissioning. At commissioning, the Drager Polytron 3000 electronics is fixed by a quicklock mechanism into the Docking Station, the sensor inserted - and the system is ready for operation.

Easy to operate - The Drager Polytron 3000 is easy to handle with simple maintenance procedures. The DragerSensors are equipped with a data memory where the calibration information is stored. This allows the Drager Polytron 3000 to either accept a precalibrated sensor, or the sensor can be calibrated with the transmitter. Digital temperature compensation of the sensor signal is automatically performed.

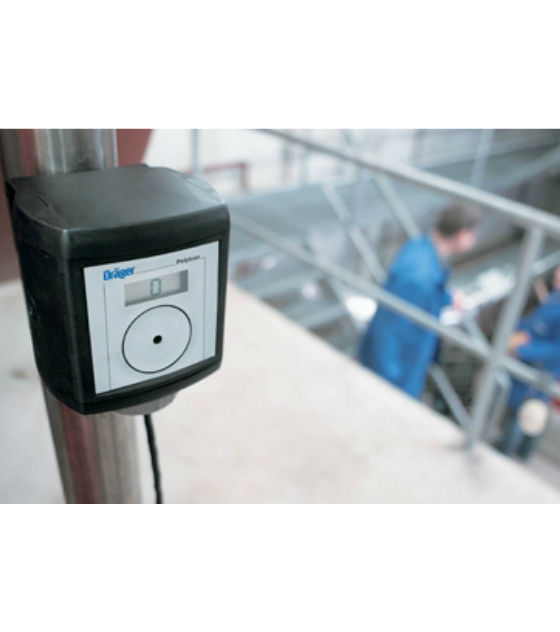

Wide range of application - With unsurpassed RFI resistance and versatile mounting options the Drager Polytron 3000 is suitable for a wide range of applications.



Gas Ranges

Acid Compounds - 0 to 3 / 10 ppm
Ammonia (NH3) - 0 to 100 / 300 / 1000 ppm
Boron Trichloride (BCl3) - 0 to 10 ppm
Carbon Monoxide (CO) - 0 to 100 / 300 / 1000 ppm
Chlorine (Cl2) - 0 to 1 / 10 / 25 ppm
Diborane (B2H6) - 0 to 0.5 ppm
Hydride (PH3) - 0 to 0.3 / 1 / 10 ppm
Hydrogen (H2) - 0 to 1000 / 3000 ppm
Hydrogen Sulfide (H2S) - 0 to 20 / 50 / 100 ppm
Hydrazine (N2H4) - 0 to 1 ppm
Nitrogen Dioxide (NO2) - 0 to 10 ppm
Nitrogen Monoxide (NO) - 0 to 50 ppm
Organic Vapours - 0 to 50 / 100 / 200 ppm
Oxygen (O2) - 0 to 5 / 25 / 100 Vol.%
Ozone (O3) - 0 to 0.5 ppm
Sulfur Dioxide (SO2) - 0 to 10 ppm


Data Sheet

Drager

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
