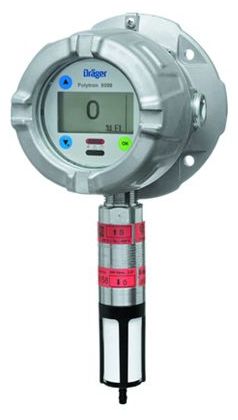

Drager Polytron 8310


Quick, reliable and cost-effective detection of combustible gases and vapours in the ambient air: The Drager Polytron 8310, which contains a durable, poison-resistant IR sensor, can also be integrated into your digital fieldbus system, thus providing additional diagnostic functions.

SIMPLE INSTRUMENT MANAGEMENT THANKS TO DIGITAL COMMUNICATION

With its HART ability, the Drager Polytron 8310 allows remote access using the Drager PolySoft 8000 software for the quick and convenient evaluation of the instrument status. Integration in existing management systems (e.g. PactWare) is also possible using DTM. In addition, fieldbus systems such as Foundation Fieldbus or Profibus are supported by corresponding interfaces.

POISON-RESISTANT AND FAIL-SAFE

The DragerSensor IR offers several benefits: technological advantages such as poison resistance and a fail-safe operation as well as a long service life. Another asset is the significantly reduced maintenance expenditure, as compared to pellistors. The DragerSensor IR offers a high reliability and outstanding performance features, e.g. in terms of response times and long-term stability.

PROVEN – AND STILL GETTING BETTER: DRÄGER MEASUREMENT TECHNOLOGY

Drager has been developing and manufacturing sensors and gas detectors for industrial use for more than 40 years. And with each new instrument generation, we drive our measurement technology a bit further. With the Polytron 8310, you will definitely benefit from this experience and power of innovation. For the more sophisticated DragerSensor IR is also traditionally manufactured by Drager.

OPTIONAL: TWO MOUNTING SETS FOR EASY FLANGE-MOUNTING

The housing has four mounting holes. Two different mounting sets are available for installing the Polytron 8310: a duct-mount and a pipe-mount set. This means that the transmitter can be easily installed anywhere – e.g., on a smooth wall, a pipe or an exhaust duct.



OPTIONAL: THREE RELAYS FOR CONTROLLING EXTERNAL EQUIPMENT

On request, the Drager Polytron 8310 can be equipped with three integrated relays. This enables you to use it as an independent gas detection system with two arbitrarily adjustable concentration alarms and one fault alarm. Audio alarms, signal lights, or similar devices can, thus, be controlled locally – without an additional cable between the transmitter and a central controller. The sensor signal can be evaluated using the 4 to 20 mA signal.

QUICK AND EASY WIRING

The electronics and the bezel form a single unit. Simply pull them out of the housing. Then insert the three-wire cable into the terminals. Finally, plug the terminal block into the PCB.

FURTHER ADVANTAGES:

  Easy and cost-effective: one-man calibration
  Available as flameproof or increased safety version
  Aluminium or 316 L stainless steel housing for the most extreme industrial conditions
  Extremely user-friendly software thanks to a minimum number of menu items
  Backlit display: easy to read, even in the dark and without a flash light
  Traffic light status indicator (green = no danger, yellow = error, flashing red = gas alarm)
  Matrix display allows the flexible setting of measuring ranges and units


Datasheet

Drager

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
