Electrothermal 1101D and 1102D

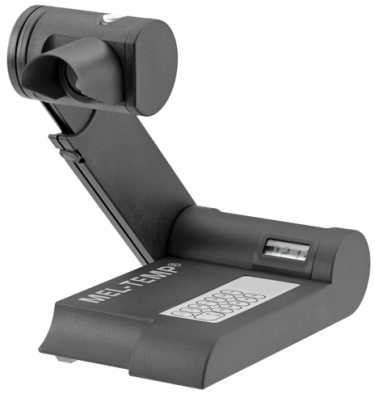

Electrothermal 1101D and 1102D Mel-Temp Digital Melting Point Apparatus

The Electrothermal 1101D Mel-Temp Digital Melting Point Apparatus offers a quick and easy way to measure the melting points of samples at a budget price. It is ideal for multiple users, being ergonomically designed to ensure comfortable viewing for everyone, with a height-adjustable extension arm and a viewing head that may be rotated to suit each user. As a visual aid, the viewing head holds a viewing magnifier that offers 8x magnification.

  • Temperature resolution ±1°C
  • Accommodates 3 Melting point capillaries of up to 2mm outside diameter
  • Tube Guide removal forcleaning and use of cold finger
  • 32-bit Processor
  • 4 x 1 Melt memory capacity
  • 13-key membrane keypad
Get a Quote

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

As a further convenience, the extension arm is completely collapsible and can be neatly folded away into the unit, so that the unit can be stored flat to save space.

Each Digital Mel-Temp comes supplied with a complimentary pack of 50 capillary tubes, its own power supply and power cable.

The 1101D Mel-Temp has power requirements of 115-120V and 50-60Hz. The 1102D Mel-Temp Digital Melting Point Apparatus has exactly the same functionality, but has power requirements of 230-240V; 50-60Hz.



  Membrane keypad with simple menus for intuitive use
  Push button controls are conveniently located to ensure that temperatures can be recorded without looking away from the sample
  Digital microprocessor with ±1°C resolution provides fast warm-up and accurate temperature control
  Samples in 3 capillary tubes may be viewed simultaneously

Safety and Convenience

  3 Audible beeps indicate that the oven temperature is stable and ready for sample
  Adjustable arm with 8x viewing magnifier can be folded away into the unit
  Adjustable object lens for sharp focus
  Rotating viewing head and safety eye piece to protect against glare and hot zone
  Integral light and wide angle 8x magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain
  Units can be calibrated by the user on their site or by manufacturer/service organisation. If calibrated by the user, a calibration kit is required.


1102D - Mel-Temp Fixed Ramp Rate Model 230V, 50/60Hz, 45W
1101D - Mel-Temp Fixed Ramp Rate Model 115V, 50/60Hz, 45W
1102DX6 - Mel-Temp Fixed Ramp Rate Model 230V, 50/60Hz, 45W with EU plug
AZ9001 - Cold Finger
AZ9002 - Dust Cover
AZ9218 - P-nitrotoluene
AZ9118 - Carbazole (245.61deg) 0.5g
AZ9253 - Calibration Key
AT4042 - Capillary Tubes 1.5mm (10x100 pack)
AT4043 - Capillary Tubes 2.0mm (10x100 pack)
PR2000S - Printer (with connecting ribbon cable)
AT4044 - Paper Roll (2) and ribbon for printer
AZ9220 - 1A PSU Mains lead (UK)
AZ9220X1 - 1A PSU Mains Lead (115V - USA)
AZ9220X6 - 1A PSU mains Lead (European)
