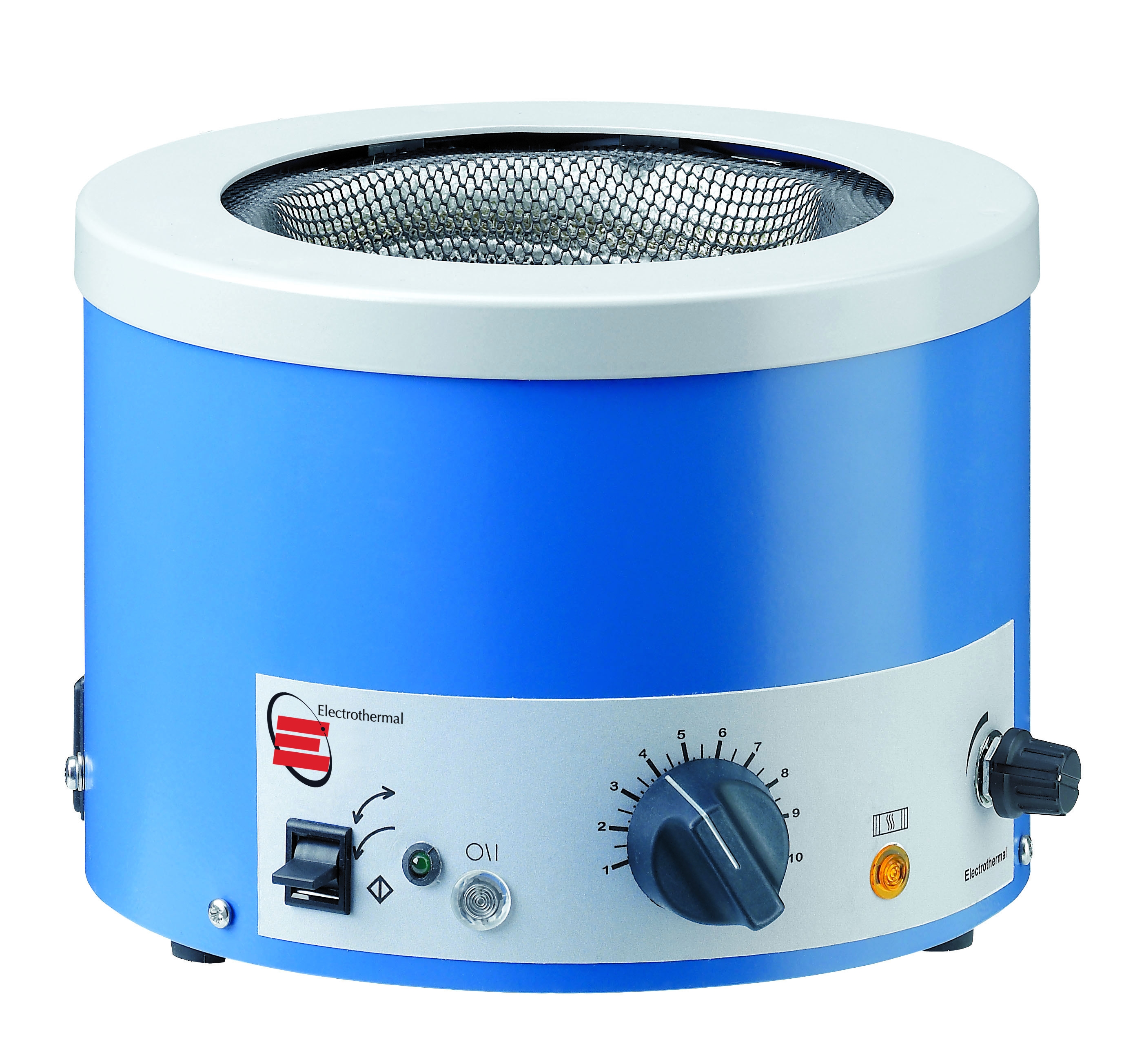

Electrothermal CMUA Stirring Mantles

The Electrothermal CMUA Stirring Mantles are available in sizes 50 to 5000ml.

Electrothermal CMUA Stirring Mantles are designed for stirring and heating of liquid.

Features

  Flexible coiled heating element absorb shock, minimizing the risk of flask breaking
  Heating element is attached to a rigid thermal insulating cartridge to ensure maximum heat transfer and support.
  Heating elements and insulation form an easy –to-replace heating cartridge
  Unique air flow through ventilation slots beneath and around the rim and heating cartridge keeps the exterior “cool-to-the-touch”
  Stainless-steel screen covering the heating element is grounded directly to the cable for added protection
  Mantles are double fused for added safety
  Non-skid feet and support clamps add stability
  Certifications: CE, CSA

High Resolution Photos


Data Sheet

Cat. No. Capacity Electrical Requirements
CMUA0050/CE 50ml (0.01gal) 230v 50/60Hz, 60w
CMUA0050/CEX1 50ml (0.01gal) 115v 50/60Hz, 60w
CMUA0050/CEX6 50ml (0.01gal) 230v 50/60Hz, 60w, EU Plug
CMUA0100/CE 100ml (0.02gal) 230v 50/60Hz, 75w
CMUA0100/CEX1 100ml (0.02gal) 115v 50/60Hz, 75w
CMUA0100/CEX6 100ml (0.02gal) 230v 50/60Hz, 75w, EU Plug
CMUA0250/CE 250ml (0.06gal) 230v 50/60Hz, 200w
CMUA0250/CEX1 250ml (0.06gal) 115v 50/60Hz, 200w
CMUA0250/CEX6 250ml (0.06gal) 230v 50/60Hz, 200w, EU Plug
CMUA0500/CE 500ml (0.13gal) 230v 50/60Hz, 280w
CMUA0500/CEX1 500ml (0.13gal) 115v 50/60Hz, 280w
CMUA0500/CEX6 500ml (0.13gal) 230v 50/60Hz, 280w, EU Plug
CMUA1000/CE 1000ml (0.26gal) 230v 50/60Hz, 380w
CMUA1000/CEX1 1000ml (0.26gal) 115v 50/60Hz, 380w
CMUA1000/CEX6 1000ml (0.26gal) 230v 50/60Hz, 380w, EU Plug
CMJA2000/CE 2000ml (0.53gal) 230v 50/60Hz, 500w
CMUA2000/CEX1 2000ml (0.53gal) 115v 50/60Hz, 500w
CMUA2000/CEX6 2000ml (0.53gal) 230v 50/60Hz, 500w, EU Plug
CMUA3000/CE 3000ml (0.79gal) 230v 50/60Hz, 500w
CMUA3000/CEX1 3000ml (0.79gal) 115v 50/60Hz, 500w
CMUA3000/CEX6 3000ml (0.79gal) 230v 50/60Hz, 500w, EU Plug
CMUA5000/CE 5000ml (1.32gal) 230v 50/60Hz, 800w
CMUA5000/CEX1 5000ml (1.32gal) 115v 50/60Hz, 800w
CMUA5000/CEX6 5000ml (1.32gal) 230v 50/60Hz, 800w, EU Plug

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
