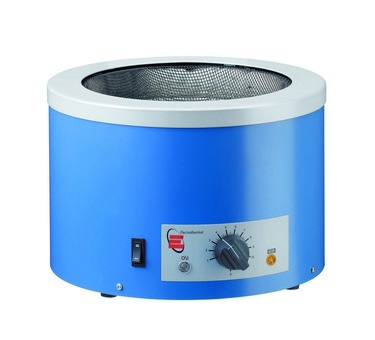

Electrothermal CMU Controlled Mantles

CMU heating mantles are used in wet chemistry to heat liquids in round bottom flasks. The metal case is designed to remain "cool-to-the-touch" when in operation. Electrothermal heating mantles have a grounded stainless steel earth screen covering the element and are double fused for added safety. The CMU heating mantles are CE and CSA approved.

Features

  Temperatures up to 450°C.
  Available in a comprehensive range of capacities from 50 to 5000ml.
  Unique air flow through the unit keeps the exterior "cool-to-the-touch".
  Rugged and easy to clean stove painted aluminium casing.
  Flexible coiled heating elements absorb shock, minimizing the risk of flask breakage.
  Heating element is attached to a rigid thermal insulating cartridge to ensure maximum heat transfer and support.
  Heating elements and insulation form an easy-to-replace heating cartridge
  Stainless steel screen covering the heating element is grounded directly to the cable for added protection.
  Mantles are double fused for added safety.
  Non-skid feet and support clamps add stability.
  Uncontrolled versions are also available (recommended controller, MC5)
  Certifications: CE, CSA

High Resolution Photos


Data Sheet
Manual

Cat. No. Capacity Electrical Requirements
CMU0050/CE 50ml 230v 50/60Hz, 75w
CMU0050/CEX1 50ml 230v 50/60Hz, 75w
CMU0050/CEX6 50ml 230v 50/60Hz, 75w EU Plug
CMU0100/CE 100ml 230v50/60Hz, 100w
CMU0100/CEX1 100ml 115v 50/60Hz, 100w
CMU0100/CEX6 100ml 230v 50/60Hz, 100w EU Plug
CMU0250/CE 250ml 230v 50/60Hz, 200w
CMU0250/CEX1 250ml 115v 50/60Hz, 200w
CMU0250/CEX6 250ml 230v 50/60Hz, 200w, EU Plug
CMU0500/CE 500ml 230v 50/60Hz, 280w
CMU0500/CEX1 500ml 115v 50/60Hz, 280w
CMU0500/CEX6 500ml 230v 50/60Hz, 280w, EU Plug
CMU1000/CE 1000ml 230v 50/60Hz 380w
CMU1000/CEX1 1000ml 115v 50/60Hz, 380w
CMU1000/CEX6 1000ml 230v 50/60Hz, 380w, EU Plug
CMU2000/CE 2000ml 230v 50/60Hz, 500w
CMU2000/CEX1 2000ml 115v 50/60Hz, 500w
CMU2000/CEX6 2000ml 230v 50/60HZ, 500w EU Plug
CMU3000/CE 3000ml 230v 50/60Hz, 500w
CMU3000/CEX1 3000ml 115v 50/60Hz, 500w
CMU3000/CEX6 3000ml 230v 50/60HZ, 500w EU Plug
CMU5000/CE 5000ml 230v 50/60Hz, 800w
CMU5000/CEX1 5000ml 115v 50/60Hz, 800w
CMU5000/CEX6 5000ml 230v 50/60Hz, 800w EU Plug

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
