HomeLaboratoryHeating & Control › Electrothermal CMUV Heating Mantles

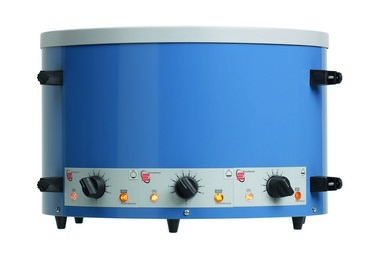

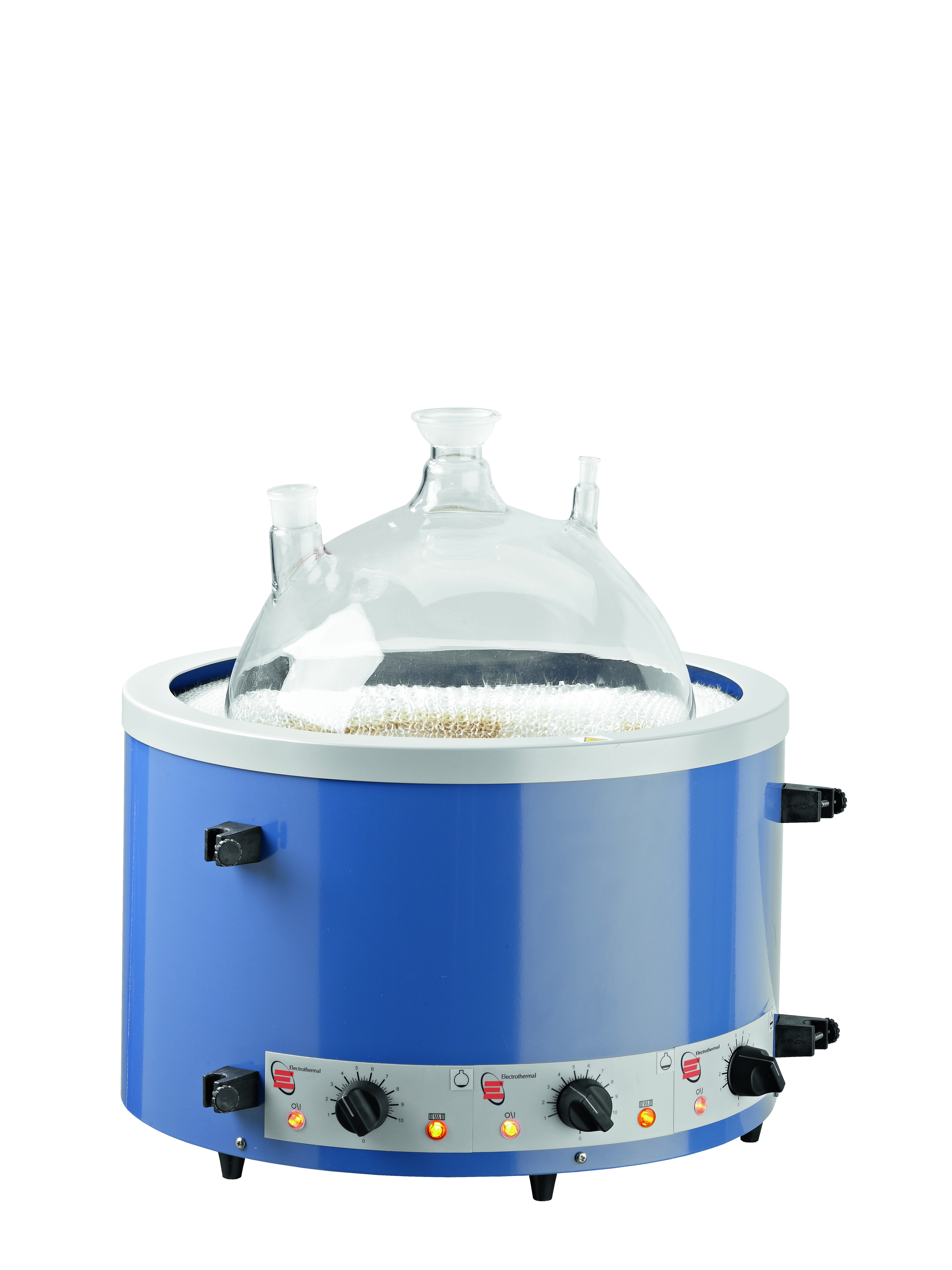

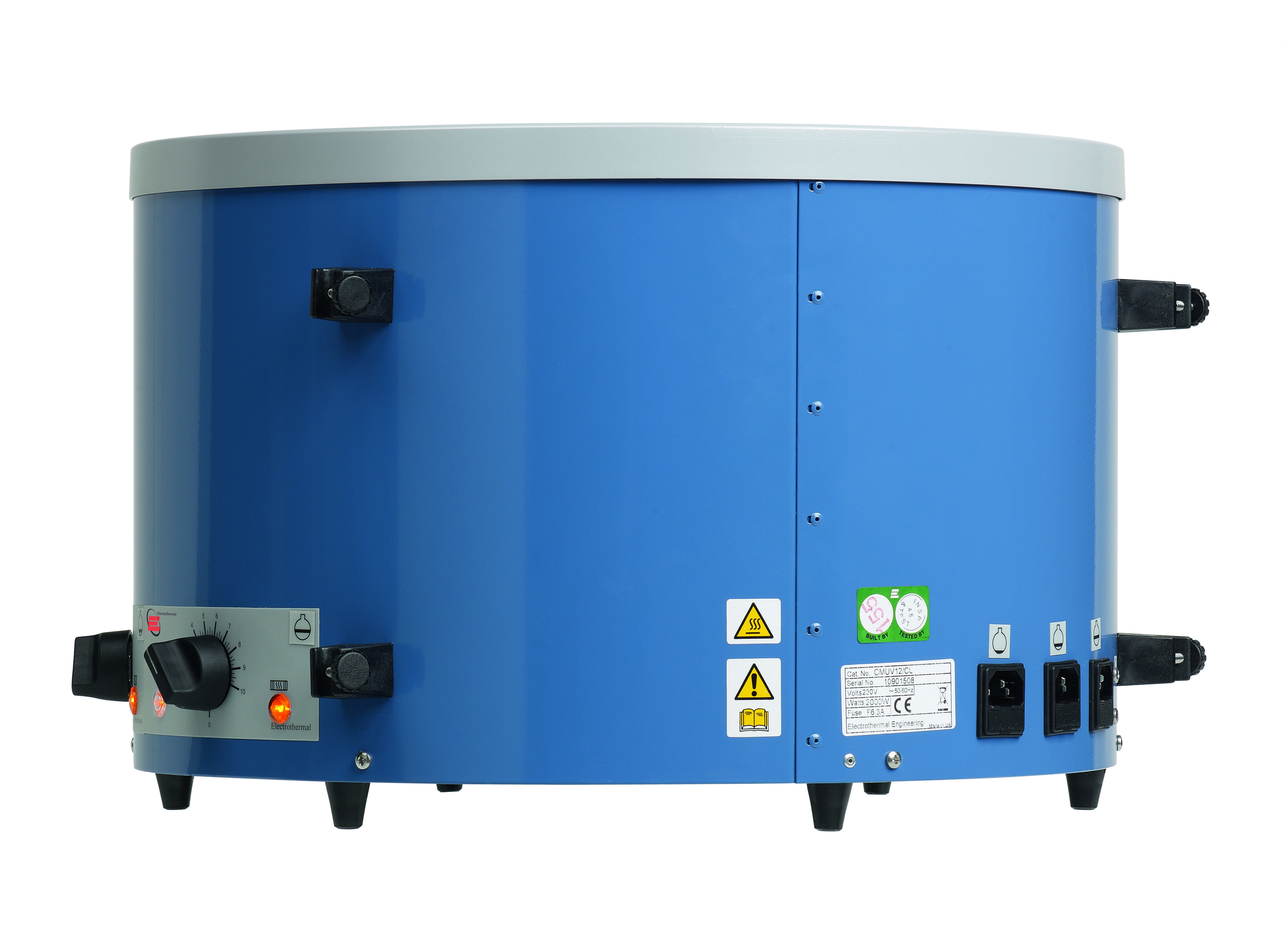

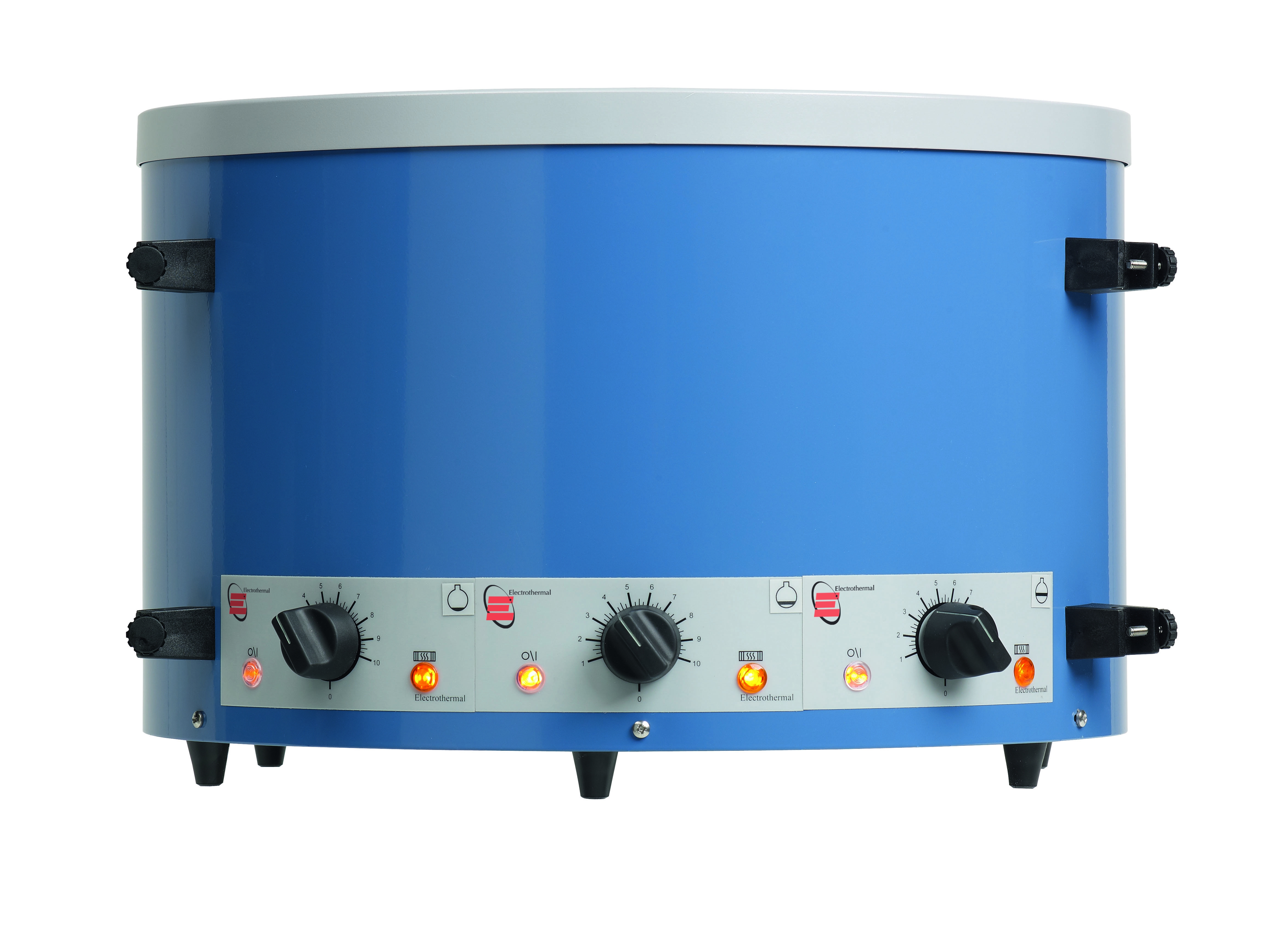

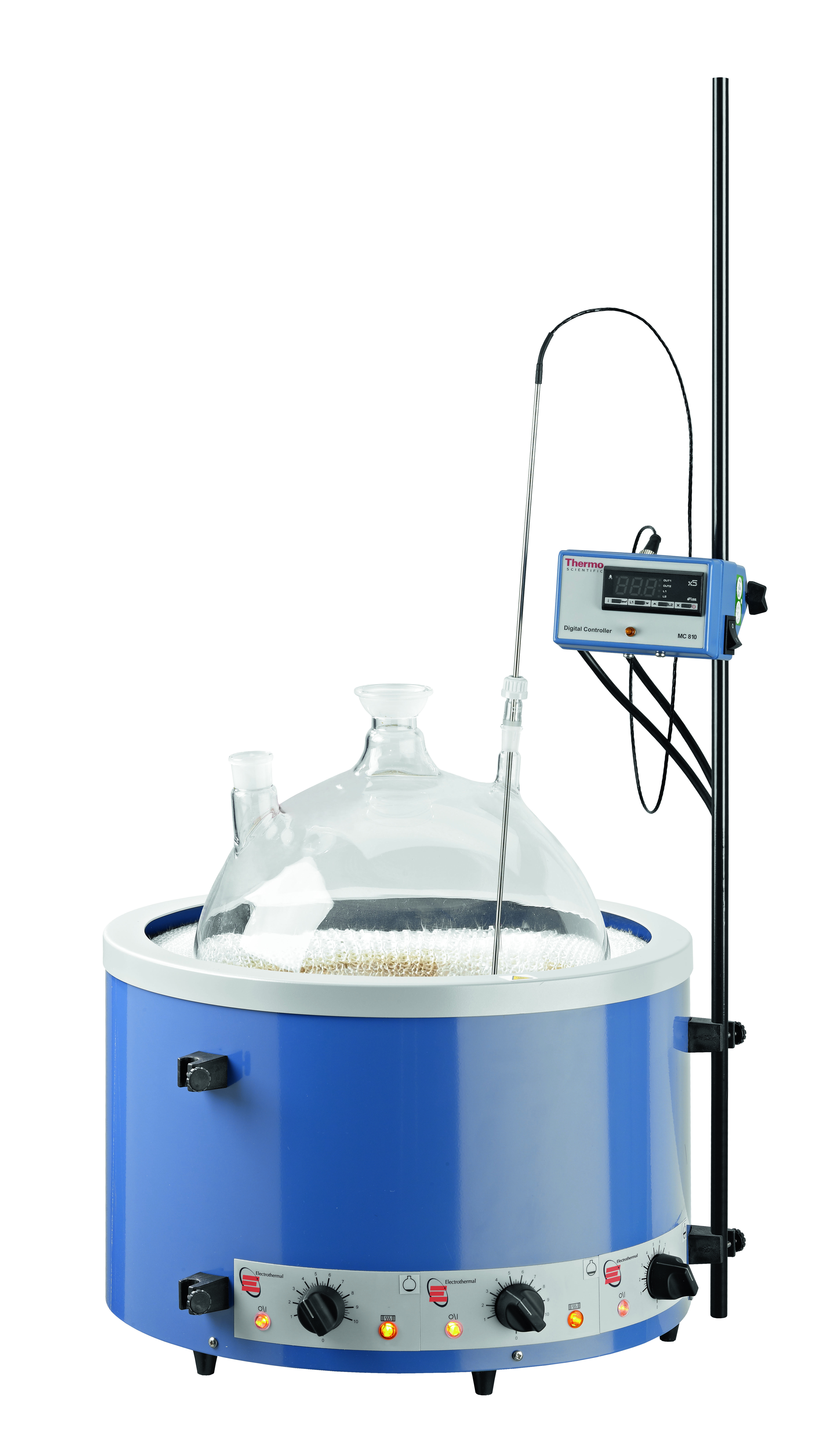

Electrothermal CMUV Heating Mantles

The Electrothermal CMUV Heating Mantles accepts a large range of flask and funnel sizes for added flexibility.

Electrothermal CMUV Heating Mantles are available with and without controls.

Stainless-steel screen on all CMUV models cover the heated element to protect you from shock hazards due to spills or flask breakage.

Includes: Three brackets for 1.3cm (1/2in.) support rods.

Features

  Element Temperature 450 oC (842 oF)
  Patented air flow through ventilation slots in base of the case ensure a low, cool temperature to the touch
  Coiled heating element, suspended within a thermal insulating cartridge, provides maximum heat transfer and support
  Heating element can be turned on or off
  Bottom outlet accommodates 60 degree funnels of various diameters
  Aluminum case stove painted
  Built-in electronic controller models
  Warranty: One year parts and labour
  Certifications: CE, CSA


Data Sheet

High Resolution Photos

Cat. No. Capacity Electrical Requirements With Controller
CMUV10/L 10L(2.6 gal) 230v 50/60Hz, 2000w No
CMUV10/LX1 10L(2.6 gal) 115v 50/60Hz, 2000w No
CMUV10/LX6 10L(2.6 gal) 230v 50/60HZ, 2000w EU Plug No
CMUV10/CL 10L(2.6 gal) 230v 50/60Hz, 2000w Yes
CMUV10/CLX1 10L(2.6 gal) 115v 50/60Hz, 2000w Yes
CMUV10/CLX6 10L(2.6 gal) 230v 50/60HZ, 2000w EU Plug Yes
CMUV12/L 12L (3.1 gal) 230v 50/60Hz, 2000w No
CMUV12/LX1 12L (3.1 gal) 115v 50/60Hz, 2000w No
CMUV12/LX6 12L (3.1 gal) 230v 50/60HZ, 2000w EU Plug No
CMUV12/CL 12L (3.1 gal) 230v 50/60Hz, 2000w Yes
CMUV12/CLX1 12L (3.1 gal) 115v 50/60Hz, 2000w Yes
CMUV12/CLX6 12L (3.1 gal) 230v 50/60HZ, 2000w EU Plug Yes
CMUV22/L 20 to 22L (5.2 to 5.8 gal) 230V 50/60Hz, 3000w No
CMUV22/LX1 20 to 22L (5.2 to 5.8 gal) 115v 50/60Hz, 3000w No
CMUV22/LX6 20 to 22L (5.2 to 5.8 gal) 230v 50/60Hz, 3000w EU Plug No
CMUV22/CL 20 to 22L (5.2 to 5.8 gal) 230V 50/60Hz, 3000w Yes
CMUV/CLX1 20 to 22L (5.2 to 5.8 gal) 115v 50/60Hz, 3000w Yes
CMUV22/CLX6 20 to 22L (5.2 to 5.8 gal) 230v 50/60Hz, 3000w EU Plug Yes


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
