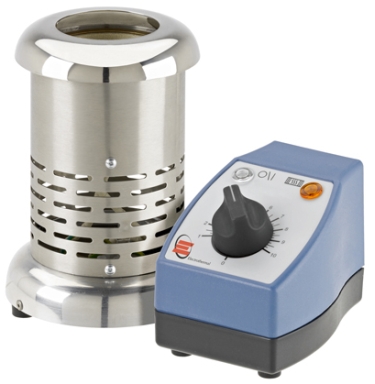

Electrothermal Electric Bunsen

Electrothermalís Electric Bunsen combines the advantages of a regular gas burner with the clean, easy operation of our Electromantles. Radiation from the heater is directed upwards to a focal point. The Electric Bunsen is ideal for heating test tubes, crucibles, small flasks and beakers, regardless of their shape.

Features

  Conical shaped heating element directs radiant heat to the top cavity
  Top cowl deflects heat away from your hand
  Air circulation from the vented housing keeps the base cool enough to hold during operation
  Burner consumes only 400W of power
  Recommended controller is the MC5

Electrothermalís Electric Bunsen, combines the advantages of a regular gas burner with the clean, easy operation of our Electromantles. It is corrosion-resistant and has a cool-to-thetouch base.

Radiation from the heater is directed upwards to a focal point. The Electric Bunsen is ideal for heating test tubes, crucibles, small flasks and beakers, regardless of their shape.

MC5 Electric Bunsen Controller

The MC5 Controller has been designed to provide a comprehensive answer to control the heating of resistive loads such as Electric Bunsens, Electromantles, Heating Tapes and Cords for bench top operation delivering up to a maximum of 800 Watts. A rod support clamp is provided at the rear of the controller to take a standard 12.5mm diameter rod. An accessory extension mains lead is available where remote operation is required e.g. in a fume extraction unit.


Data Sheet

Ordering Information

BA6101 - 230V 50/60Hz, 480W (Without Controller)
BA6101X1 - 115V 50/60Hz, 430W (Without Controller)
BA6101X2 - 100V 50/60Hz, 480W (Without Controller)
BA6101X3 - 90V 50/60Hz, 430W (Without Controller)
BA6101X6 - 230V 50/60Hz, 480W, EU Plug (Without Controller)
BA6101/C - 230V 50/60Hz, 480W (With Controller)
BA6101/CX1 - 115V 50/60Hz, 430W (With Controller)
BA6101/CX6 - 230V 50/60Hz, 480W EU Plug (With Controller)
MC5 - 230V, 50/60Hz, 800W
MC5X1 - 115V, 50/60Hz, 460W
MC5X6 - 230V, 50/60Hz, 800W, EU Plug

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
