Electrothermal EMEA Series Electromantle Extraction Heaters

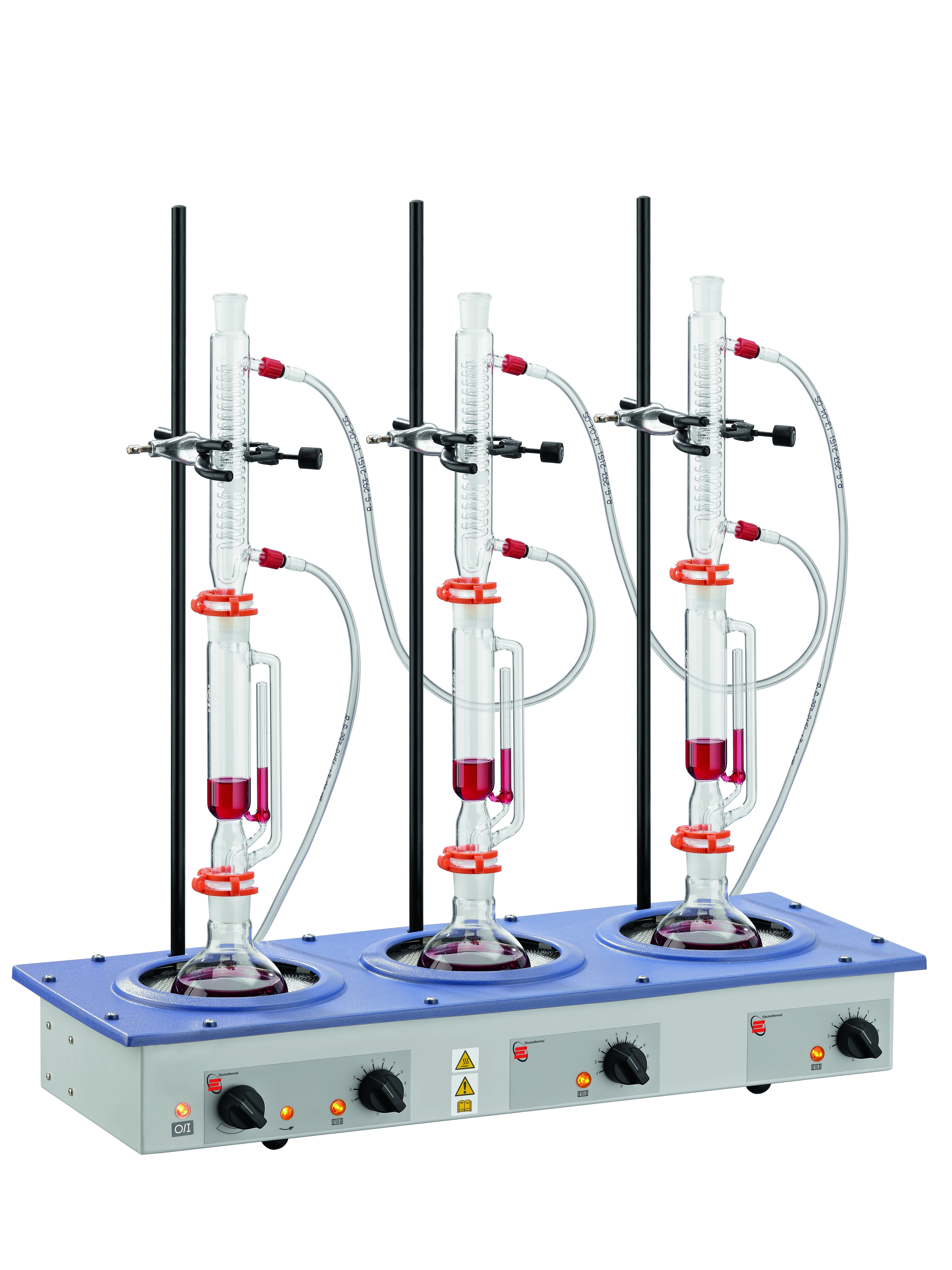

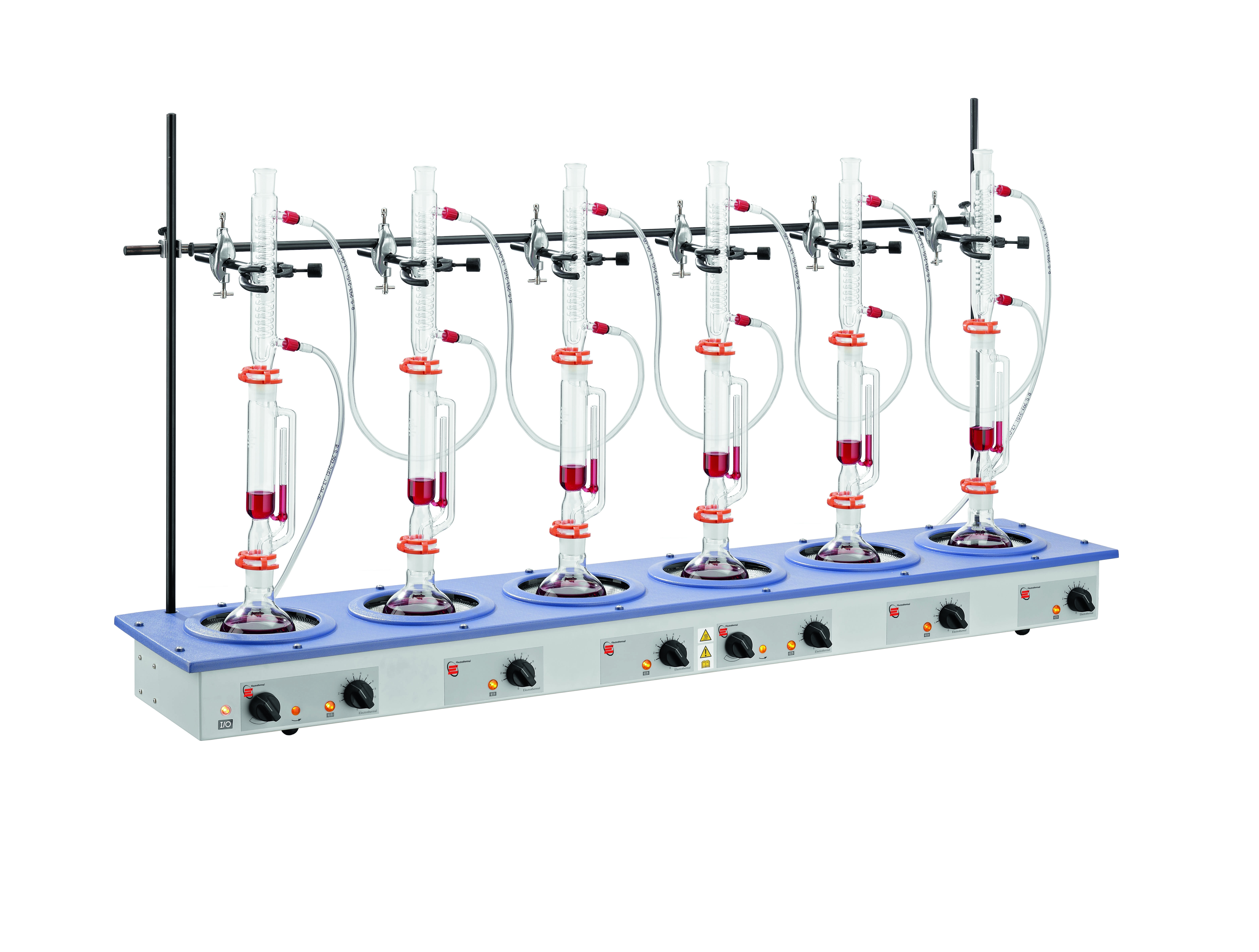

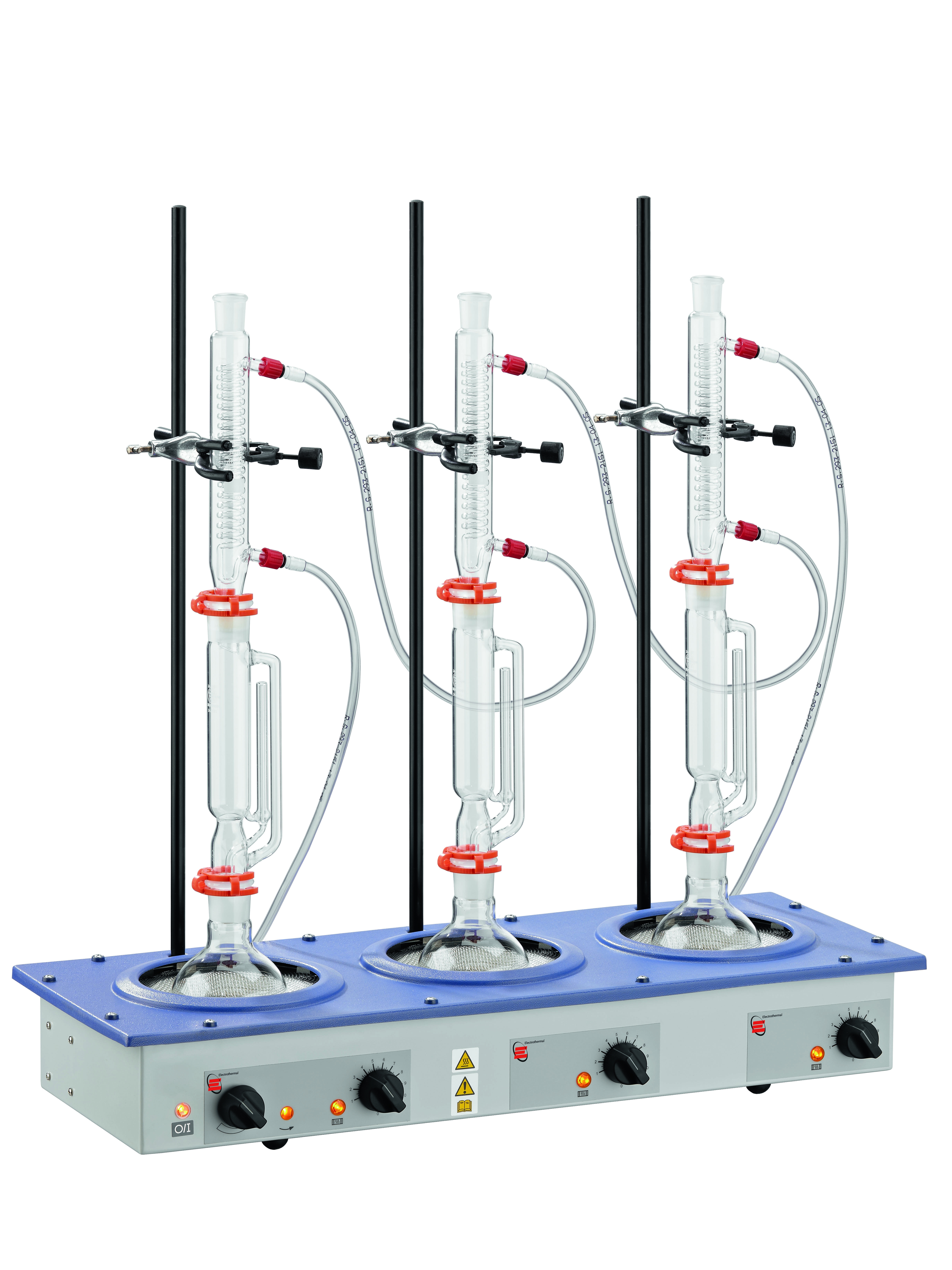

The Electrothermal Electromantle Extraction Heater with three and six recesses has a built-in electronic controller and offers a choice of heater only or heater/stirrer combination.

Vented case’s unique air flow ensures the case remains “coolto- the-touch.”

Heater and Heater/Stirrer Models

  Individual built-in solid state electronic controls enable easy regulation of heater, while removing sparking associated with mechanical switching
  Yhree 12.7mm(0.5in) diameter support rods are included
  Top cover is polypropylene and external surfaces are powder coated and resistant to most chemical solutions
  Coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer and support, while removing sparking associated with mechanical switching
  Heater cartridge is easy to replace
  Earth (ground) screen encloses the heater for added safety
  Pilot lights indicate when power is on and supplied to heaters and supplied to stirrers

Heater/Stirrer Models

  Stirrer models include a stirring speed of 50 to 1000rpm
  One stirring control operates each set of three recesses
  Stirring Module allows the solution to be stirred and heated simultaneously

Warranty: One year parts and labour.

Certification: CE.


Data Sheet

High Resolution Photos

ModelFlask CapacityDimensions (d x w x h), mmNo. of RecessesElectrical RequirementsShipping Weight, kg
EMEA30100/CE3 x 100ml270 x 640 x 1103230v 50/ 60Hz, 220W UK and EU plug7
EMEA30100/CEX13 x 100ml270 x 640 x 1103115v 50/ 60Hz, 220W7
EMEA30250/CE3 x 250ml270 x 640 x 1103230v 50/ 60Hz, 490W UK and EU plug7
EMEA30250/CEX13 x 250ml270 x 640 x 1103115v 50/ 60Hz, 490W7
EMEA30500/CE3 x 500ml285 x 755 x 1303230v 50/ 60Hz, 640W UK and EU plug8.4
EMEA30500/CEX13 x 500ml285 x 755 x 1303115v 50/ 60Hz, 640W8.4
EMEA31000/CE3 x 1000ml285 x 755 x 1303230v 50/ 60Hz, 940W UK & EU plug8.4
EMEA31000/CEX13 x 1000ml285 x 755 x 1303115v 50/ 60Hz, 940W8.4


ModelFlask CapacityDimensions (d x w x h), mmNo. of RecessesElectrical RequirementsShipping Weight, kg
EMEA60100/CE6 x 100ml270 x 1210 x 1106230v 50/ 60Hz, 500W UK and EU plug10.1
EMEA60100/CEX16 x 100ml270 x 1210 x 1106115v 50/ 60Hz, 500W10.1
EMEA60250/CE6 x 250ml270 x 1210 x 1106230v 50/ 60Hz, 980W UK and EU plug10.1
EMEA60250/CEX16 x 250ml270 x 1210 x 1106115v 50/ 60Hz, 980W10.1
EMEA60500/CE6 x 500ml285 x 1450 x 1306230v 50/ 60Hz, 1280W UK and EU plug12.5
EMEA60500/CEX16 x 500ml285 x 1450 x 1306115v 50/ 60Hz, 1280W12.5
EMEA61000/CE6 x 1000ml285 x 1450 x 1306230v 50/ 60Hz, 1880W UK and EU plug12.5
EMEA61000/CEX16 x 1000ml285 x 1450 x 1306115v 50/ 60Hz , 1880W12.5


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
