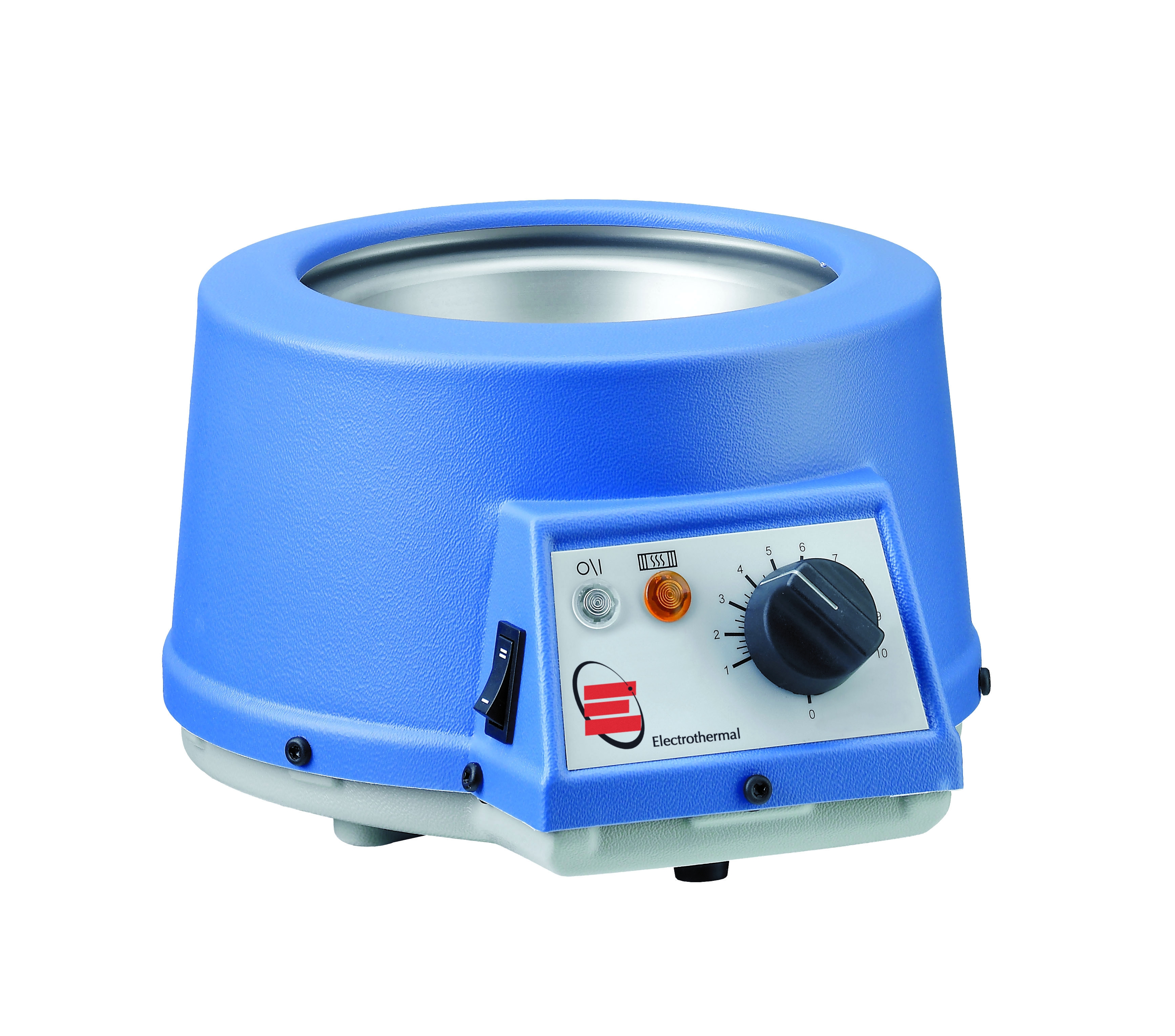

Electrothermal EMX & EMV Spill-Proof and V-Shaped Mantles

Electrothermal Spill-proof Mantle and V-Shaped Mantles fit snugly against pear-shaped or round-bottom flasks.

Accepts a large range of flask and funnel sizes for added flexibility.

Features

  Element temperature 450C (842F)
  Patented air flow through ventilation slots beneath and around the rim of the case ensure a low, cool temperature to the touch
  Coiled heating element, suspended within a thermal insulating cartridge, provides maximum heat transfer and support
  Heating element can be turned on or off
  Bottom outlet accommodates 60o funnels of various diameters
  Chemical-resistant polypropylene housing
  Built-in electronic controller

EMX Models

  Stainless steel liner on all EMX models provide electrical and mechanical protection against spills and ensures easy cleaning

EMV Models

  Stainless steel screen on all EMV models cover the heated elements to protect you from shock hazards due to spills or flask breakage

Includes: One bracket for 1.3cm (0.05in) support rods (5000ml size has 3).

Warranty: one year, parts and labour

Certifications: CE

High Resolution Photos


Data Sheet

Cat. No. Capacity Electrical Requirement
V-shaped
EMV0050/CE 10 to 50ml (0.001 to 0.01gal) 230v 50/60Hz, 60w
EMV0050/CEX1 10 to 50ml (0.001 to 0.01gal) 115v 50/60Hz, 75w
EMV0050/CEX6 10 to 50ml (0.001 to 0.01gal) 230w 50/60Hz, 60w, EU Plug
EMV0250/CE 100 to 250ml (0.02 to 0.06gal) 230v 50/60Hz, 150w
EMV0250/CEX1 100 to 250ml (0.02 to 0.06gal) 115v 50/60Hz, 150w
EMV0250/CEX6 100 to 250ml (0.02 to 0.06gal) 230v 50/60Hz, 150w, EU Plug
EMV1000/CE 500 to 1000ml (0.13 to 0.26gal) 230v 50/60Hz, 300w
EMV1000/CEX1 500 to 1000ml (0.13 to 0.26gal) 115v 50/60Hz, 300w
EMV1000/CEX6 500 to 1000ml (0.13 to 0.26gal) 230v 50/60Hz, 300w, EU Plug
EMV5000/CE 2000 to 5000ml (0.53 to 1.32gal) 230v 50/60Hz, 800w
EMV5000/CEX1 2000 to 5000ml (0.53 to 1.32gal) 115v 50/60Hz, 800w
EMV5000/CEX6 2000 to 5000ml (0.53 to 1.32gal) 230v 50/60Hz, 800w EU Plug

Spill-Proof
EMX1000/SCE 500 to 1000ml (0.13 to 0.26gal) 230v 50/60Hz, 240w
EMX1000/SCEX1 500 to 1000ml (0.13 to 0.26gal) 115v 50/60Hz, 240w
EMX1000/SCEX6 500 to 1000ml (0.13 to 0.26gal) 230v 50/60/Hz, 240w, EU Plug
EMX5000/SCE 2000 to 5000ml (0.53 to 1.32gal) 230v 50/60Hz, 600w
EMX5000/SCEX1 2000 to 5000ml (0.53 to 1.32gal) 115v 50/60Hz, 600w
EMX50001/SCEX6 2000 to 5000ml (0.53 to 1.32gal) 230v 50/60Hz, 600w, EU Plug


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
