HomeLaboratoryMelting Point Apparatus › Electrothermal IA9000 Series Melting Point Apparatus


Electrothermal IA9000 Series Melting Point Apparatus

Digital IA9000 Series consists of an adjustable 8X viewing magnifier arm that folds and a large LCD display.

Its heating chamber is an aluminium heating block, which avoids hazards and mess associated with oil baths.

Performance

  Digital microprocessor with 0.10C resolution provides fast warm up and accurate temperature control
  Operates without need for a mercury thermometer
  Three beeps indicate oven temperature is stable and ready for sample
  Simple push button controls are conveniently located so you can easily record temperatures without looking away from your sample
  Interface with optional PR2000S Printer( Models IA9200, & IA9300 only)
  Units can be calibrated in field or at factory

Safety and convenience

  Adjustable extension arm ensures comfortable viewing and reduces fatigue
  Viewing head rotates for easier viewing and folds flat for compact storage
  Adjustable object lens for sharp focus
  Safety eye piece reduces glare and protects eyes from hot zone
  Integral light and 8X wide angle viewing magnifier enhance sample observation allow all three samples to be viewed

High Resolution Photos


Data Sheet

Cat No. Description Electrical Requirements

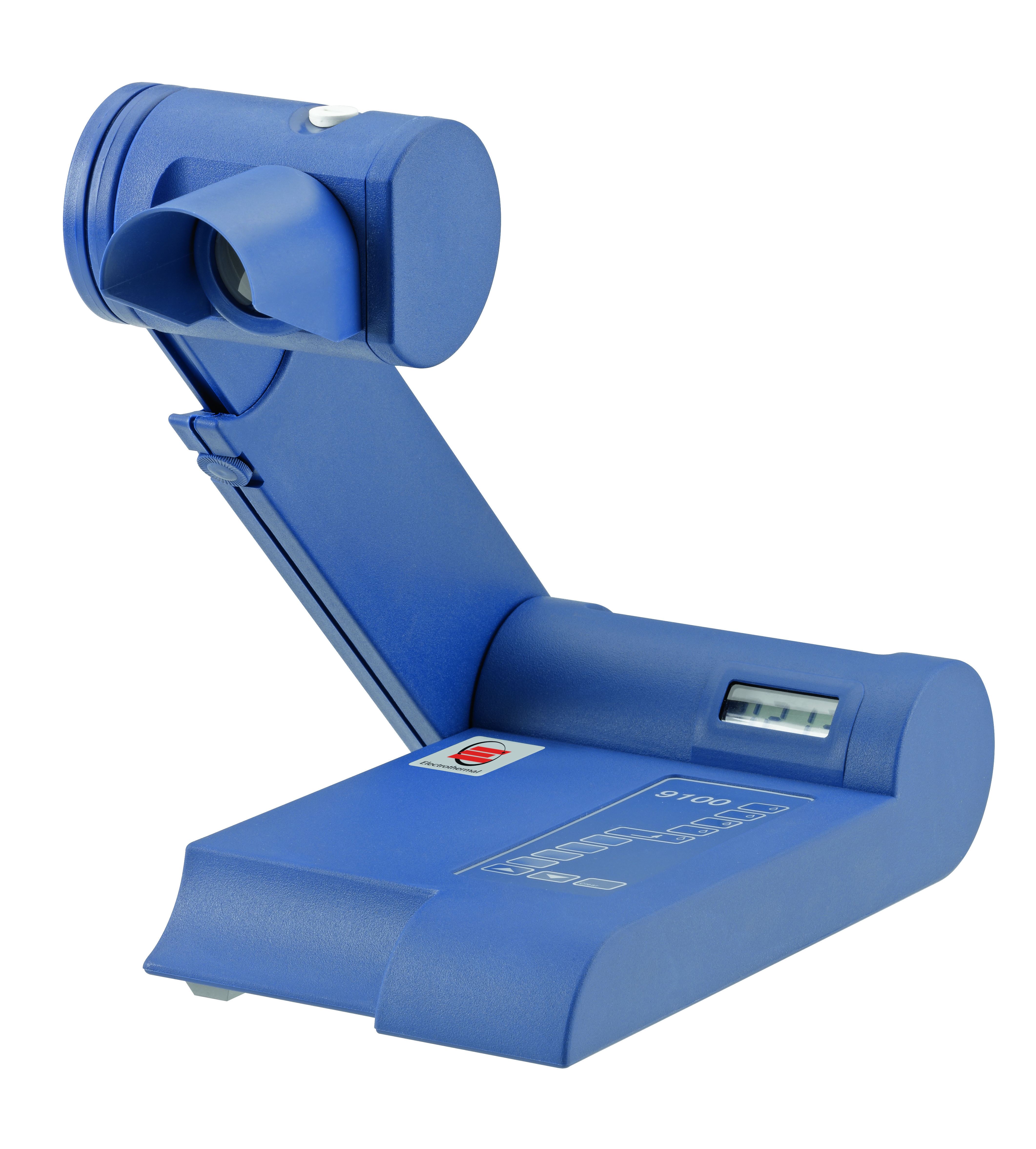

IA9100 Fixed Ramp Rate Model 230v
IA9100X1 Fixed Ramp Rate Model 115v
IA9100X6 Fixed Ramp Rate Model 230v EU Plug
IA9200 Programmable Ramp Rate Model 230v
IA9200X1 Programmable Ramp Rate Model 115v
IA9200X6 Programmable Ramp Rate Model 230v EU Plug

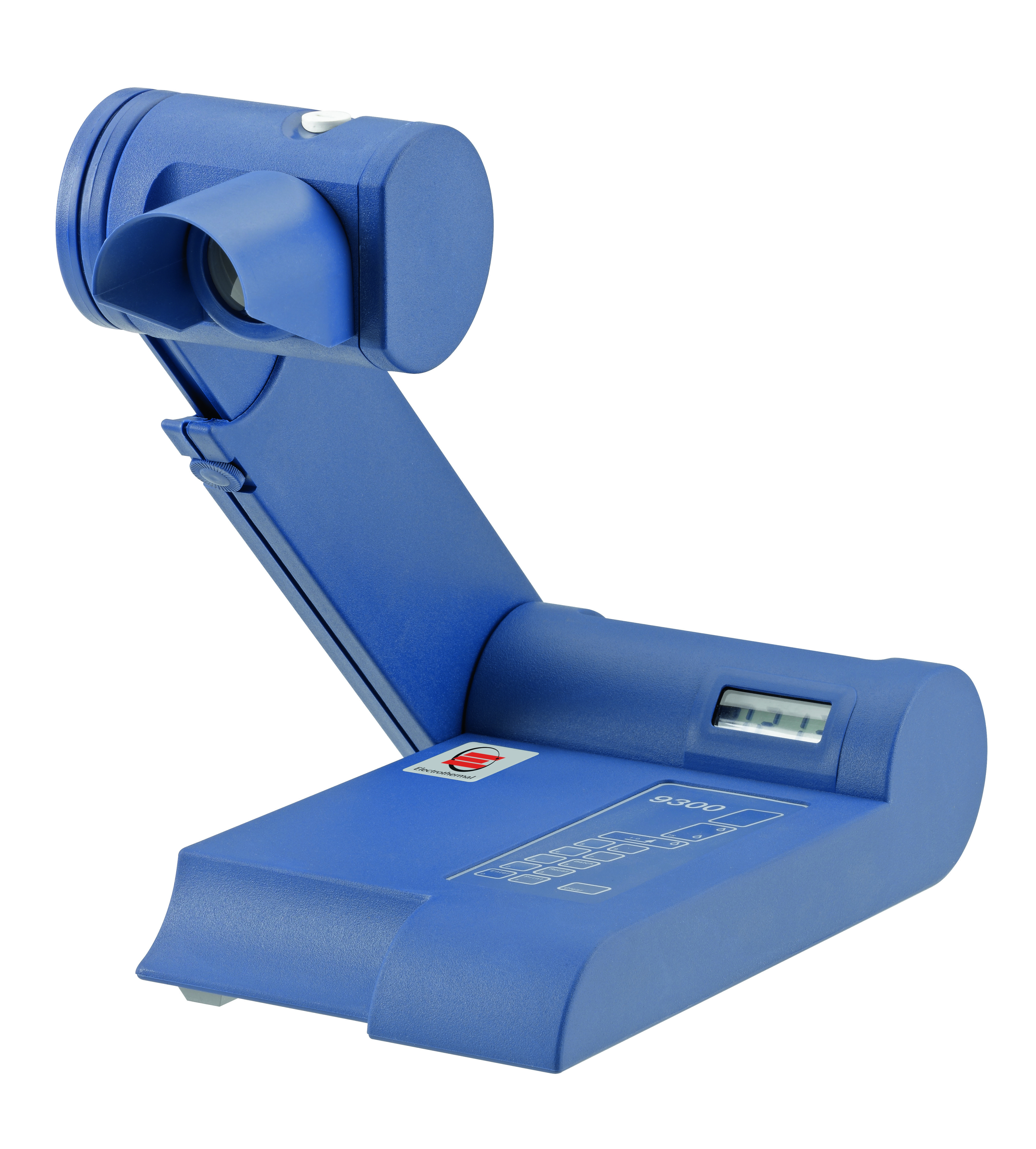

IA9300 Beginning/Ending Recording Model for Pharmacopeia Requirements 230v
IA9300X1 Beginning/Ending Recording Model for Pharmacopeia Requirements 115v
IA9300X6 Beginning/Ending Recording Model for Pharmacopeia Requirements 230v EU Plug


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
