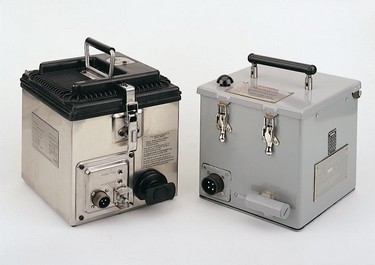

Electrothermal RAK15 Water and Ration Heater

The RAK products are state-of-the-art water/ration heaters for modern mechanised forces around the world. Designed to meet the rigours of the modern day conflict arena it has be thoroughly tested to meet the toughest specifications MIL 461F and is NSF&/47ANSI 4 certified for food heating.

  Heats water and rations in the vehicle while on the move
  Contents remains hot for up to 6 hours after the unit has been switched off
  Boil Dry condition and fail safe mechanisms are designed in
  Connects to vehicles auxiliary power supply, 24 volts DC
  Heating range (LO) 66 to 71°C
  Heating range (HI) 82 to 88°C
  Ramp rate of 56°C in one hour (max) from ambient temperature of 21°C

The water/ration heater heats either one gallon of water or two pints of water plus 5 meals ready to eat (MREs) at the same time. The outer casing remains cool-to-the-touch and it has a very low thermal signature.


Data Sheet

Models in this range include RAK15, RAK30 and RAK110.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
