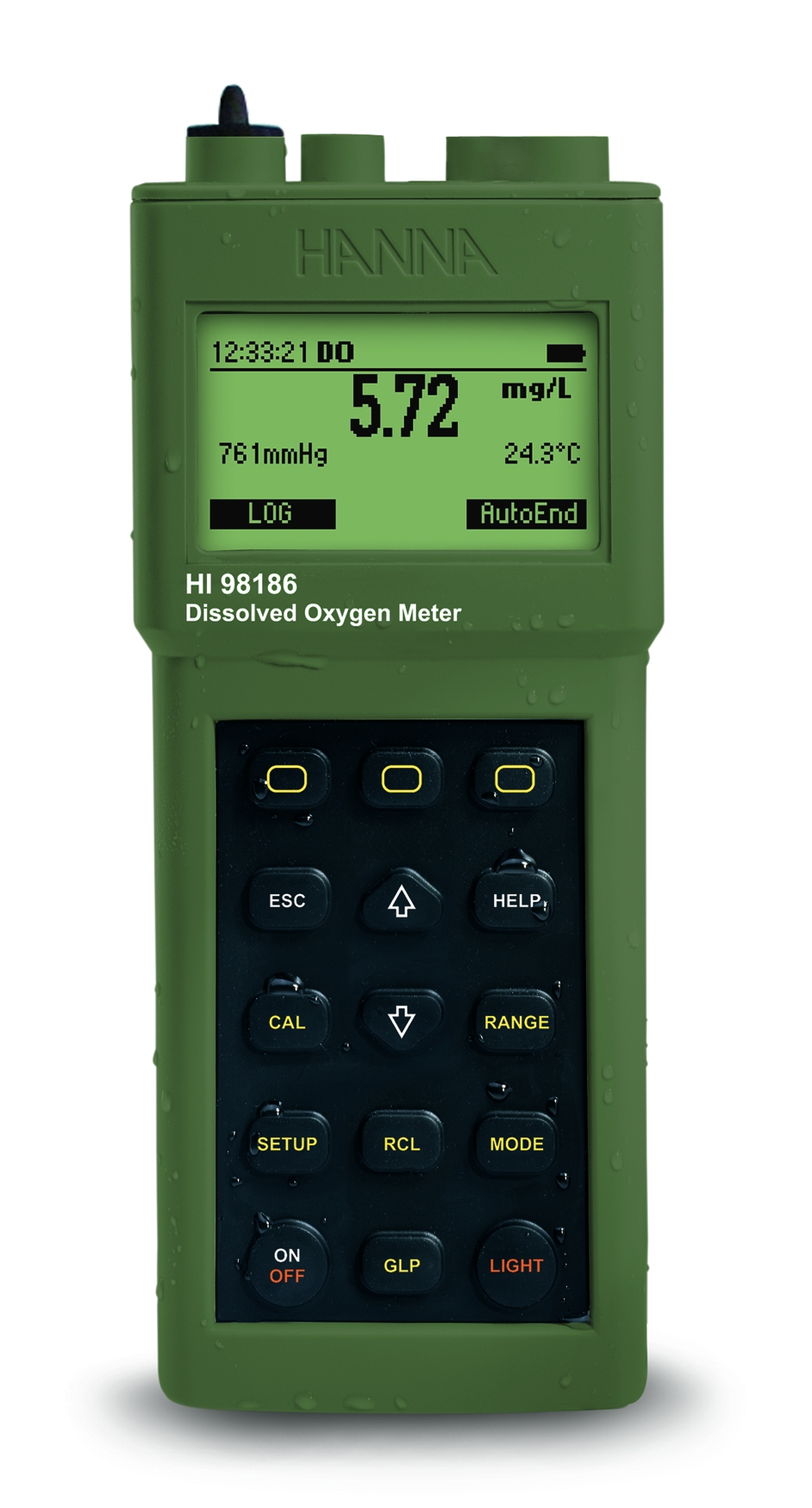

HI-98186 Advanced High Range Dissolved Oxygen and BOD Meter


The Hanna HI 98186 portable dissolved oxygen meter has extended ranges of up to 50 ppm or 600% saturation and can also measure and display biochemical oxygen demand (BOD), oxygen uptake rate (OUR) and specific oxygen uptake rate (SOUR).

This instrument includes barometric pressure measurement and calibration with a user selectable unit (mmHg, atm, mbar, psi, kPa) as well as a 1 or 2 point temperature calibration. Salinity, pressure and temperature compensations can be made thereby enhancing the precision of your readings.

Other features include measurement and methods for BOD (biochemical oxygen demand), OUR (oxygen uptake rate), and SOUR (specific oxygen uptake rate). Log on-demand up to 400 samples. Return to the lab and download all data to your PC with the USB connection and Hanna's HI 92000 software. An 'out of calibration range warning' can be engaged to alert the user in the event that a reading is taken too far from the calibration's periphery. A combination of dedicated and soft keys allows facile, intuitive operation in a choice of languages. Comprehensive GLP data are directly accessible by pressing the GLP key. Access the contextual Help Menu to obtain on-screen information and assistance about each feature at the touch of a button.

Designed for field use, this instrument can be easily operated with one hand and is housed in a rugged carrying case. With an extended battery life of up to 200 hours the user is assured of a long operation time. The inductive charger can either be plugged into a standard 115V socket with the adapter included or a 12 Vdc source, such as a car's 12 V accessory outlet.

The HI 98186 is supplied with HI 76407/4F dissolved oxygen probe with built-in temperature sensor with 4 m cable; (2) spare membranes; electrolyte solution; (4) 1.2V AA, 1300 mAh rechargeable batteries; HI 710042-01 inductive battery charger with power adapter; rugged carrying case and instructions.



Click on the photo for a high-resolution version.


Datasheet
Manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
