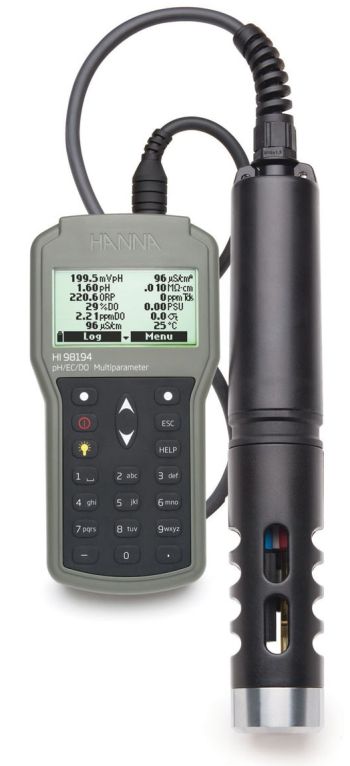

HI-98194 Multiparameter pH/ORP/EC/DO/Pressure/ Temperature Waterproof Meter


The new, waterproof and portable HI98194 meter is a logging parameter that has the ability to monitor 12 different water quality parameters at one time. This includes some key parameters such as pH, ORP, conductivity, dissolved oxygen and temperature. Data is sent from the probe to the meter where it can then be logged. This Hanna device is very easy to use and to setup, it also comes in a heavy-duty case and comes equipped with the required accessories.

Features

  Backlit Graphic LCD Display - The HI98194 features a backlit graphic LCD with on-screen help and the capability to display up to twelve parameters simultaneously. The graphic display allows for the use of virtual keys to provide for an intuitive user interface.

  Waterproof Protection - The meter is enclosed in an IP67 rated waterproof casing and can withstand immersion in water at a depth of 1 m for up to 30 minutes. The probe features an IP68 rating for continuous immersion in water.

  Quick Connect Digital Probe - The HI7698194 probe features a Quick Connect DIN connector that makes a waterproof connection with the meter.

  Color Coded, Field Replaceable Sensors - Sensor replacement is quick and easy with field replaceable, screw type connectors that are color coded for easy sensor port identification.

  Auto-sensor Recognition - The probe and meter automatically recognize the sensors that are connected. Any ports not used on the probe will not have the parameter displayed or be configurable.

  Automatic temperature compensation - Integrated temperature sensor allows for automatic temperature compensation of pH, conductivity, and dissolved oxygen measurements.

  Automatic Barometric Pressure Compensation - The meter features a built-in barometer with user-selectable units for dissolved oxygen pressure compensation.

  Standard or Quick Calibration - Quick Calibration provides a speedy, single point calibration for pH, conductivity, and dissolved oxygen. Standard pH calibration options are available for calibrating up to three points from a selection of five standard buffers and one custom buffer. Conductivity calibration is a single point from six standard selections or one custom standard. Dissolved oxygen calibration is up to two standard points or a single custom point.

  GLP Data - HI98194 includes a GLP feature thatallows users to view calibration data and calibration expiration information at the touch of a key. Calibration data includes date, time, buffers/standards used for calibration, and slope characteristics.

  Data Logging - The HI98194 allows users to store up to 45,000 continuous or log-on-demand samples with logging intervals from one second to three hours.



  Intuitive Keypad - The fitted rubber keypad has dedicated keys for power, backlight, up/down arrows, help and alphanumeric characters. The meter also features two virtual soft keys that navigate the user through the configuration of each parameter, meter setup, and logging of data. The interface is intuitive for any user’s level of experience.

  Dedicated Help Key - Contextual help is always available through a dedicated “HELP” key. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration. The help information displayed is relative to the setting/option being viewed.

  PC Connectivity - Logged data can be transferred to a Window’s compatible PC with the included HI920015 micro USB cable and HI9298194 software.

  Long Battery Life - The display of the meter has a battery icon indicator to show the remaining power. The meter uses four 1.5V AA batteries that provide up to 360 hours of battery life.

  Rugged thermoformed carrying case - The HI98194 meter, probe, and all accessories are supplied in a rugged carrying case designed to provide years of use. The inside compartment of the carrying case is thermoformed to securely hold and protect all of the components.


Datasheet
Manual

Ordering Information


HI 98194 HI 98194 meter, probe with 4 meter (13.1’) cable, with pH/ORP, EC, D.O. sensors.

HI 98194/10 HI 98194 meter, probe with 10 meter (33’) cable, with pH/ORP, EC, D.O. sensors.

HI 98194/20 HI 98194 meter, probe with 20 meter (65.6’) cable, with pH/ORP, EC, D.O. sensors.

HI 98194/40 HI 98194 meter, probe with 40 meter (131.2’) cable, with pH/ORP, EC, D.O. sensors.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
