Honeywell Analytics FSL100 Series Flame Detectors

The Honeywell Analytics FSL100 Series Flame Detectors is the Optoelectronic flame detector for a wide range of Light Industrial fire detection applications.

Key Features

  • UV, UV/IR and IR3 Flame Detectors to cover a wide range of applications
  • Robust, simple to install & set-up; Wide angle and fast speed of response
  • Automatic test and test lamps for simple check and maintenance.
Get a Quote
Honeywell Analytics

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

A range of middle market Optical Flame Detectors joining the HA FSX High End products. Addresses a wide range of fire protection applications both indoors and outdoors. With 3 versions to cover a wide range of flaming fires: Ultraviolet (UV), Ultraviolet/Infrared (UV/IR) and Triple Infrared (IR3).

Detects wide range of Hydrocarbon & Non-Hydrocarbon fires - Detecting a wide range of Hydrocarbon and Non-Hydrocarbon flaming fires means that many application areas can be addressed.

Wide viewing angle - Optical detection of radiant energy in a solid angle Field of View enables coverage of a large risk area. Simple optional mounting bracket allows the FSL100 to be installed and aligned covering the hazard.

Fast response - Far faster than other technologies, by responding to flaming fires in seconds enabling a more rapid response to danger before the fire can escalate.

FM Class1, 2 & 3 Div2 - Can be installed indoors or outdoors and in Hazardous areas typically looking into a Div 1 area from a distance.

FM 3260 performance cert - Certified to FM 3260 for flame Detector performance.

Relay and current output (Fault and Alarm) - Analog stepped output and Alarm/Fault relays for simple connectivity.

Inbuilt Automatic Test and Simple to use Test Lamps - FSL100 maintains continuous internal health monitoring. Test lamps enable simple operational and Field of View testing.

UV (Ultraviolet) Flame Detector
  • FSL100-UV UV flame detector. Suitable for ATEX zone 2/22; FM 3611 Class 1,2&3 Div2 EN54-10 (HIGH sensitivity) certificate. FM3260 approval. Red Housing

  • FSL100-UV-W UV flame detector. Suitable for ATEX zone 2/22; FM 3611 Class 1,2&3 Div2 EN54-10 (HIGH sensitivity) certificate FM3260 approval. White Housing.
UVIR (Ultraviolet & Infrared) Flame Detector

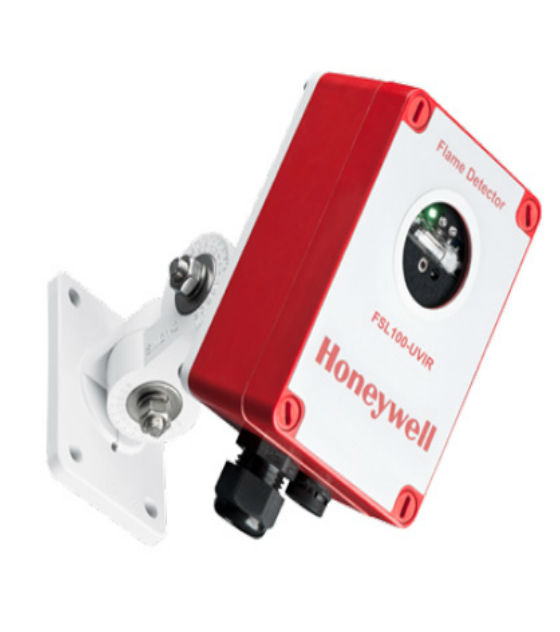

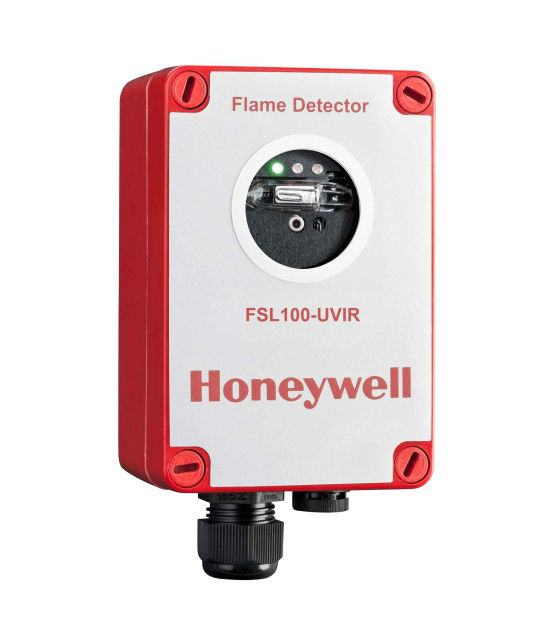

  • FSL100-UVIR UV/IR flame detector. Suitable for ATEX zone 2/22; FM 3611 Class 1,2&3 Div2 EN54-10 (HIGH sensitivity) certificate. FM3260 approval. Red Housing.

  • FSL100-UVIR-W UV/IR flame detector. Suitable for ATEX zone 2/22; FM 3611 Class 1,2&3 Div2 EN54-10 (HIGH sensitivity) certificate FM3260 approval. White Housing.
IR3 (3 Infrared bands) Flame Detector
  • FSL100-IR3 Triple IR flame detector. Suitable for ATEX zone 2/22; FM 3611 Class 1,2&3 Div2 EN54-10 (HIGH sensitivity) certificate. FM3260 approval. Red Housing.

  • FSL100-IR3-W Triple IR flame detector. Suitable for ATEX zone 2/22; FM 3611 Class 1,2&3 Div2 EN54-10 (HIGH sensitivity) certificate. FM3260 approval. White Housing.
Accessories
  • FSL100-SM21 FSL100 Optional swivel mount

  • FSL100-TL FSL100 test lamp, incl. universal charger and carrying case; non EX

  • FSL100-TLX FSL100 test lamp, incl. carrying case; intrinsically safe

  • FSL100-TLBT 12 Vdc battery for FSL-TL test lamp

  • FSL100-TLBU H3 light bulb for FSL-TL test lamp

  • FSL100?TLCH Universal charger kit for FSL-TL test lamp
