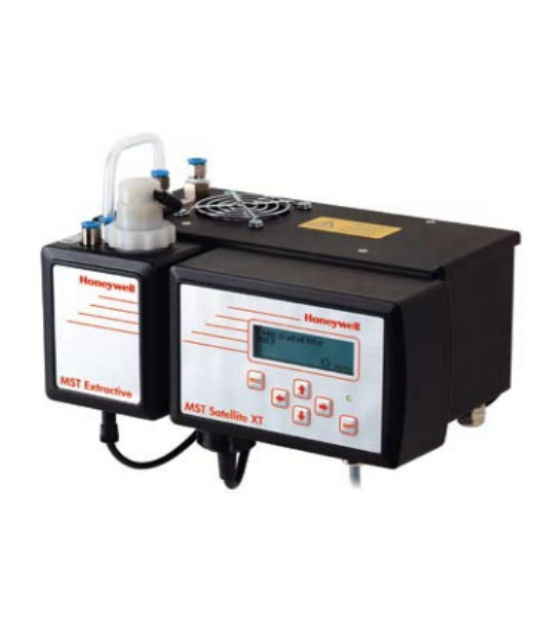

The Honeywell Analytics Satellite XT is a Analog or digital "Point-of-Use" gas detection transmitter to detect toxic, corrosive and combustible gases.

Key Features

  • Fast, reliable, specific gas detection
  • Continuous real-time monitoring
  • Interchangeable intelligent sensor cell

The Satellite XT is the simple solution for all "Point-of-Use" gas detection needs. Based upon the market's smallest and most reliable electrochemical cell technology, the Satellite XT offers flexibility, simplicity and ease of application. The Satellite XT can be purchased in either an analog or digital configuration, allowing it to interface with new or existing facility control technologies.

The digital Satellite XT is built on LonWorks technology. Life safety systems built on a LonWorks network platform allow users to leverage the cost efficiencies of distributed controls, while maintaining the integrity and reliability necessary for code compliant safety applications.

The Satellite XT is an intelligent gas detection transmitter which utilizes a unique electrochemical sensor to detect toxic, corrosive, and combustible gas.

The Satellite XT is a "Point-of-Use" monitor normally located at or near a potential source of gas release. Field accessories allow sampling options for various environments including insitu duct detection and extractive designs for harsh or remote areas. Typical installations for gas detection sampling include gas cabinet exhaust ducting, valve manifold boxes, equipment enclosures and ambient breathing zones.

Each digital Satellite XT transmitter bears a unique address for use on a LonWorks network. This feature allows it to participate in a community of other intelligent LonWorks devices, which when considered together, comprise a life safety system network.

Gas concentration and alarm information are both displayed locally at the Satellite XT, as well as distributed onto the LonWorks network for use by other field devices.

The Satellite XT provides complete programmability of all monitoring variables including gas type, alarm levels, and maintenance status.

Instrument
  • 9602-0200 Satellite XT 4-20mA

  • 9602-0201 Satellite XT 4-20mA UL

  • 9602-0205 Satellite XT 4-20mA/R

  • 9602-0206 Satellite XT 4-20 mA/R UL

  • 9602-0250 Satellite XT 4-20mA/C

  • 9602-0251 Satellite XT 4-20mA/C UL

  • 9602-0255 Satellite XT 4-20mA/C/R

  • 9602-0400 Satellite XT FTT

  • 9602-0401 Satellite XT FTT UL

  • 9602-0405 Satellite XT FTT/R

  • 9602-0406 Satellite XT FTT/R UL

  • 9602-0450 Satellite XT FTT/C

  • 9602-0451 Satellite XT FTT/C UL

  • 9602-0505 Satellite XT R

  • 9612-0200 Satellite 4-20mA, protection class IP65

  • 9612-0205 Satellite 4-20mA/R, protection class IP65

  • 9612-0250 Satellite 4-20mA/C, protection class IP65

  • 9612-0255 Satellite 4-20mA/C/R, protection class IP66

  • 9612-0400 Satellite FTT, protection class IP65

  • 9612-0405 Satellite FTT/R, protection class IP65

  • 9602-020010 Satellite XT 4-20mA

  • 9602-020510 Satellite XT 4-20mA/R

  • 9602-025010 Satellite XT 4-20mA/C

  • 9602-025510 Satellite XT 4-20mA/C/R

  • 9602-040010 Satellite XT FTT

  • 9602-040510 Satellite XT FTT/R

  • 9602-045010 Satellite XT FTT/C

  • 9602-050510 Satellite XT R
Options
  • 20404-0200 MST Extractive Module XT Standard

  • 20404-0300 MST Extractive Module XT Low Flow (SF6, C5F8 only)

  • 20404-0250 MST Extractive Module XT Combustible Gases

  • 20408-0110 MST Pyrolyzer Module XT NF3

  • 20408-0112 MST Pyrolyzer Module XT 1.2-DCE

  • 20408-0114 MST Pyrolyzer Module XT SF6

  • 20408-0116 MST Pyrolyzer Module XT CH3F

  • 20408-0120 MST Pyrolyzer Module XT C5F8

  • 20408-0122 MST Pyrolyzer Module XT C4F6
Sensors
  • 9602-9600 MST Sensor 1,2-DCE 0-1000 ppm (Pyrolyzer only)

  • 9602-9900 MST Sensor Combustible Gas 0-100 % LEL

  • 9602-9902 MST Sensor Combustible Gas 0-100 % LEL (Sat-Ex only)

  • 9602-6000 MST Sensor AsH3 0-1.00 ppm 2El.

  • 9602-6004 MST Sensor AsH3 0-1.00 ppm 3El.

  • 9602-6002 MST Sensor AsH3 0-10.0 ppm

  • 9602-6202 MST Sensor B2H6 0-1.00 ppm

  • 9602-6800 MST Sensor Br2 0-5.00 ppm

  • 9602-9732 MST Sensor C4F6 0-50.0 ppm (Pyrolyzer only)

  • 9602-9730 MST Sensor C5F8 0-20.0 ppm (Pyrolyzer only)

  • 9602-9720 MST Sensor CH3F 0-0.500 %-vol. (Pyrolyzer only)

  • 9602-5300 MST Sensor Cl2 0-5.00 ppm

  • 9602-7410 MST Sensor ClF3 0-1.00 ppm

  • 9602-7400 MST Sensor ClO2 0-1.00 ppm

  • 9602-5400 MST Sensor CO 0-500 ppm

  • 9602-6600 MST Sensor COCl2 0-1.00 ppm

  • 9602-8000 MST Sensor ETO 0-20.0 ppm

  • 9602-6401 MST Sensor F2 0-30 ppm

  • 9602-6400 MST Sensor F2 0-5.00 ppm

  • 9602-6902 MST Sensor GeH4 0-5.0 ppm

  • 9602-5100 MST Sensor H2 0-1.000 %-vol.

  • 9602-5101 MST Sensor H2 0-4.00 %-vol.

  • 9602-5200 MST Sensor H2S 0-100 ppm

  • 9602-5201 MST Sensor H2S 0-30.0 ppm

  • 9602-5601 MST Sensor H2Se 0-1.00 ppm

  • 9602-7000 MST Sensor HBr 0-30.0 ppm

  • 9602-5800 MST Sensor HCl 0-30.0 ppm

  • 9602-5700 MST Sensor HCN 0-30.0 ppm

  • 9602-6500 MST Sensor HF 0-10.0 ppm

  • 9602-6715 MST Sensor HMDS 0-0.500 %-vol.

  • 9602-6714 MST Sensor HMDS 0-500 ppm

  • 9602-7600 MST Sensor N2H4 0-1.00 ppm

  • 9602-9700 MST Sensor NF3 0-50.0 ppm (Pyrolyzer only)

  • 9602-6704 MST Sensor NH3 0-100 ppm Version SE

  • 9602-6705 MST Sensor NH3 0-1000 ppm

  • 9602-7200 MST Sensor NO 0-250 ppm

  • 9602-7300 MST Sensor NO2 0-25.0 ppm

  • 9602-5500 MST Sensor O2 0-25.0 %-vol.

  • 9602-7100 MST Sensor O3 0-1.00 ppm

  • 9602-7101 MST Sensor O3 0-1.00 ppm Exhaust Monitoring

  • 9602-6100 MST Sensor PH3 0-1.00 ppm 2El.

  • 9602-6102 MST Sensor PH3 0-1.00 ppm 3El.

  • 9602-9710 MST Sensor SF6 0-0.500 %-vol. (Pyrolyzer only)

  • 9602-6301 MST Sensor SiH4 0-50.0 ppm

  • 9602-5900 MST Sensor SO2 0-25.0 ppm

  • 9602-7500 MST Sensor TEOS 0-100 ppm

  • 9602-7510 MST Sensor TMB 0-500 ppm

  • 9602-7800 MST Sensor TMP 0-30.0 ppm

Spares and Accessories
  • 9602.0014.10.00 Option Extractive Module XT Adapter Kit

  • 9602.0050.10.01 Mounting Rail standard, DIN rail 90 x 35 x 7.5 mm

  • 9602.0050.10.03 Mounting Rail standard, DIN rail 180 x 35 x 7.5 mm

  • 9602.0051.10.02 Mounting plate L-shaped with DIN rail

  • 9602.0090.00.01 Sensor Extension 2m Standard

  • 9602.0091.00.01 Sensor Extension 3m

  • 9602.0092.00.01 Sensor Extension 1m

  • 9602.0093.00.01 Sensor Extension 2m Combustible

  • 9602.0094.00.01 Sensor Extension 3m Combustible

  • 9902-4000 Saddle 4''

  • 9902-4010 Saddle 6''

  • 9902-4020 Saddle 8''

  • 9902-4030 Saddle 10''

  • 9902-4040 Saddle 12''

  • 9902-4100 Saddle 1.5''

  • 9902-4110 Saddle 2''

  • 9902-4120 Saddle 2.5''

  • 9902-4130 Saddle 3''

  • 9902-4200 Saddle flat

  • 9602.0095.40.00 Calibration Cap for Satellite

  • 9602.0097.10.00 Metal Sensor Adapter for Sensor Extension complete

  • 9602.0098.10.00 Adapter Sensor Extension complete

  • 9602.0099.10.00 Adapter Sensor Extension C complete

  • 9902.0008.40.00 1 1/4" to M40 adapter

  • 02000-A-1635 Weatherproof cap for use with toxic detector including remote gassing nozzle (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)

  • 02000-A-1640 Weatherproof cap for use with combustible detector including remote gassing nozzle (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)

  • 02000-A-1642 Collecting cone for use with flammable detector (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)

  • 02000-A-1645 Flow Housing Assembly (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)

  • Note: Adapter 9902.0008.40.00 must be ordered, when using 02000-A-1635/1640/1642/1645 with Satellite XT Sensors.

  • 9608.0039.10.00 Sensor Extension PU/EU Std.

  • 9608.0040.10.00 Sensor Extension PU/EU Combustible

  • 9604.0090.00.00 Flashback Arrestor

  • 9003.0040.10.00 Heater Element compl.

  • 1991-0136 Inlet Tubing, FEP Teflon 100' 1/4 x 1/8

  • 1991-0137 Exhaust Tubing, Poly 100' 1/4" OD
