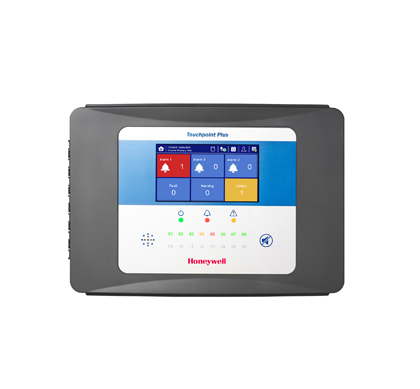

Honeywell Analytics Touchpoint Plus Controller


The Honeywell Touchpoint Plus has a uniquely developed user interface, which allows the operator to control their gas detection device safely, whilst knowing that their site and staff are protected and productivity can continue as normal.

The Touchpoint Plus works across multiple industries and allows you to customize your system so that it matches your application requirements.

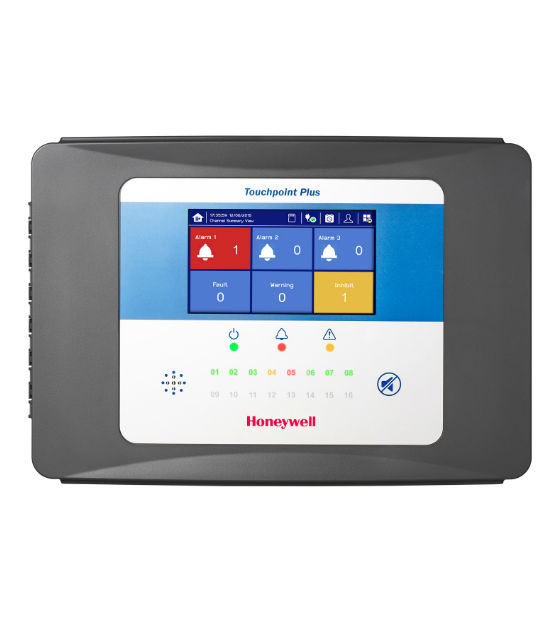

Large touchscreen LCD

The Honeywell Touchpoint Plus is designed for ease of use. The user can operate and manage their gas detection device efficiently by using the simple touchscreen system. The Honeywell device simplifies operation, reducing the need for unnecessary training and costs. An easy to navigate menu system provides both real-time data and also historical data which can be downloaded and help identify developing threats.

At a glance system visibility

The Honeywell Touchpoint Plus comes equipped with full colour traffic light style status indicators, making it easy for the user to know immediately when something is wrong and allowing them to make a time critical decision based on just one quick look at the device.

Unique industrial design

The Touchpoint Plus is made of an extremely strong and durable polymer plastic which is both dust and water proof. This Honeywell device can be directly mounted on the wall or used with an easily attachable mounting plate and is designed to withstand the toughest conditions. Installation time and cost are reduced with the uniquely tiered terminal, leaving plenty of space for wiring and the cable entries which are pre-drilled and ready for use.

Honeywell Analytics' full system solution

The device provides a suitable safety solution for gas detection systems on a small scale across a huge range of industries. The Touchpoint Plus is the heart of your gas detection unit, working with the industry leading Honeywell gas detectors and providing clear visual and audible alarms to create a simple yet reliable safety solution.


Data Sheet
Specifications
Technical Handbook
Quick Start Guide

Part Numbers

TPPLBAWA2NNNNNN Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mA inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWV2NNNNNN Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mV inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWA4NNNNNN Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWV4NNNNNN Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mV inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWD4NNNNNN Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mA and 2x mV inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWA8NNNNNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWV8NNNNNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWD8NNNNNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWA8DNBNNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, and with battery backup.

TPPLBAWV8DNBNNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, and with battery backup.

TPPLBAWA8DNNNRN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, with Modbus TCP and Web monitoring

TPPLBAWD8SNBRNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, 12 programmable relays, with battery backup and with Modbus RTU.

TPPLBAWA8D8NNNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, and with 8x repreated mA outputs.

TPPLBAWV8D8NNNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, and with 8x repreated mA outputs.

TPPLBAWD8D8NNNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, 24 programmable relays, and with 8x repreated mA outputs.

TPPLBAWA8D8BNNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, 8x repreated mA outputs, and with battery backup.

TPPLBAWV8D8BNNN Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, 8x repreated mA outputs, and with battery backup.

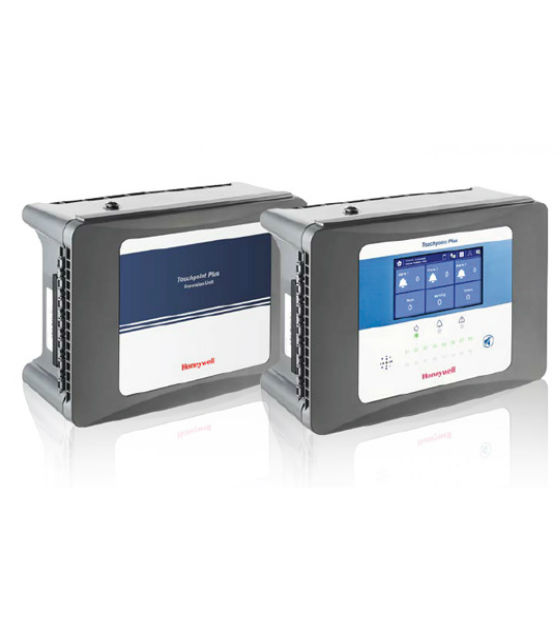

TPPLEAWA8SNNNNN Touchpoint Plus expansion unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, and with 12 programmable relays.

Accessories

TPPLOWMB Wall Mounting Bracket
TPPLOMGND Metal grounding for cable gland
TPPLOGLD Cable glands (13 pcs.)
TPPLOGLDA Cable glands adaptor for M20 (13 pcs.)
TPPLOSDC SD Card

Spare Parts

TPPLSDPM UI PCB Module
TPPLSMPM Main PCB Module
TPPLSLTSM LCD + Touch Screen Module
TPPLSBPM Back Plane Module
TPPLSSAM SMPS Assembly Module(150W,110/220VAC)
TPPLSIBB Backup battery pack
TPPLSMAAI2 2x mA Input Module
TPPLSMAAI4 4x mA Input Module
TPPLSMAAI8 8x mA Input Module
TPPLSMAVI2 2x mV Input Module
TPPLSMAVI4 4x mV Input Module
TPPLSMAVI8 8x mV Input Module
TPPLSMACI4 2x mA + 2x mV Dual Input Module
TPPLSMACI8 4x mA + 4x mV Dual Input Module
TPPLSMAROC 12x Relays
TPPLSMAAO4 4x mA Output Module
TPPLORTU RS485 Modbus RTU interface board

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
