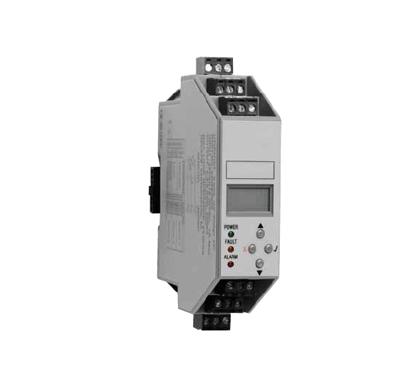

The Honeywell Analytics Unipoint Controller is a simple DIN rail mounted controller offering integrators a flexible and low cost solution to incorporate flammable, toxic or Oxygen gas detection into their control systems.

Key Features

  • Fully user programmable scale, units and calibration
  • Relays configurable as energised, de-energised, latching or non-latching, alarm relay on/off delay
  • Compatible with a wide range of gas detectors
Get a Quote
Honeywell Analytics

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Unipoint can be easily installed into any plastic or metal enclosure for use indoor or outdoors and even in potentially explosive atmospheres. With the addition of one of the Honeywell Analytic's range of flammable, toxic or Oxygen detectors, systems may be configured to monitor gases in a wide range of applications from car parks and boiler houses to analyser shelters or crane cabs in offshore facilities.

Two versions of Unipoint are available; one for mV bridge, catalytic bead type, flammable gas detector and the other for any 2 or 3 wire 4-20mA type gas detector. Each Unipoint is easily installed onto the DIN rail via a special socket (provided) that also interconnects power to adjacent units. With removable terminal connectors, individual Unipoint controllers can be easily changed without disturbing other devices.

By clipping together multiple Unipoints small to medium sized monitoring solutions can be realised. Each unit includes built-in audiovisual alarms, three programmable alarm relays and a fault relay. Gas concentration and system status is displayed on the backlit LCD and each controller is fully user programmable via an intuitive, push button operated menu system. Configuration menus can be password protected to prevent unauthorised access.

In addition remote inputs allow accept, reset and inhibit of alarms without the need to open the enclosure that the Unipoint is mounted in. Unipoint's uncomplicated design makes it ideal for applications where a simple method of integrating gas detectors into a 3rd party control system is required or as part of a small standalone gas detection solution.

All Honeywell Analytics gas detectors and third party detectors may be used with Unipoint subject to overall power requirements.

Typical Applications

• Small and medium integrated systems
• Custom control cabinets and panels
• Unmanned equipment rooms
• Boiler houses
• HVAC systems
• Analyser houses
• Car parks
• Crane cabs
• Laboratories

User Friendly

• Ultra-clear backlit display
• System status codes
• Built-in audiovisual alarms
• Intuitive menu system
• Simple pushbutton operation
• Remote accept, reset and inhibit inputs

Easy to Install

• TS35 ("top hat") DIN rail mounting
• Removable terminal connectors
• Easy access to all terminals
• Additional units clip together

Comprehensive Operation

• 3 wire mV bridge, 2 and 3-wire 4-20mA inputs
• DC operation
• 3 x alarm relays
• 1 x system fault relay
• Field inhibit input (mA versions)
Instrument
  • 2306B2000 Unipoint controller (mV input version)

  • 2306B1000 Unipoint controller (mA input version)
Accessories
  • ZDINPSUX1 DIN rail mounted PSU. Input: 85-265Vac, 50/60Hz. Output: 24Vdc, 1A CSA, UL/UR, CE approved
Spares
  • 2306B3010 Unipoint terminal block (x2)

  • 2306B3020 Unipoint DIN rail socket

  • 2306B3030 Unipoint power connector
