Jenway PCLM3 Chloride Meter


This product is now obsolete and no longer available.

  Clinical and industrial versions
  Three measurement ranges
  Large, clear LED display
  Simple to operate
  Fast, reliable results
  Low maintenance

The PCLM3 is designed as a dual purpose chloride analyser for clinical and inductrial applications. The unit has three measurement ranges; two are for use in clinical determinations and require 20ul or 100ul samples, and the third range is for industrial determinations and requires a 500ul sample.

The system operates on the proven coulometric principle, providing a quick and easy method to multiple measurements. Automatic indication is given when the reagent requires replacing or the electrodes need cleaning.

The PCLM3 will determine concentrations in biological samples such as serum, plasma, urine, sweat and CSF. It will also determine concentrations in industrial samples with low ionic strength, neutral pH and free of silver halides, other silver reactive components (other than chloride), low solid matter and low levels of dissolved solids.

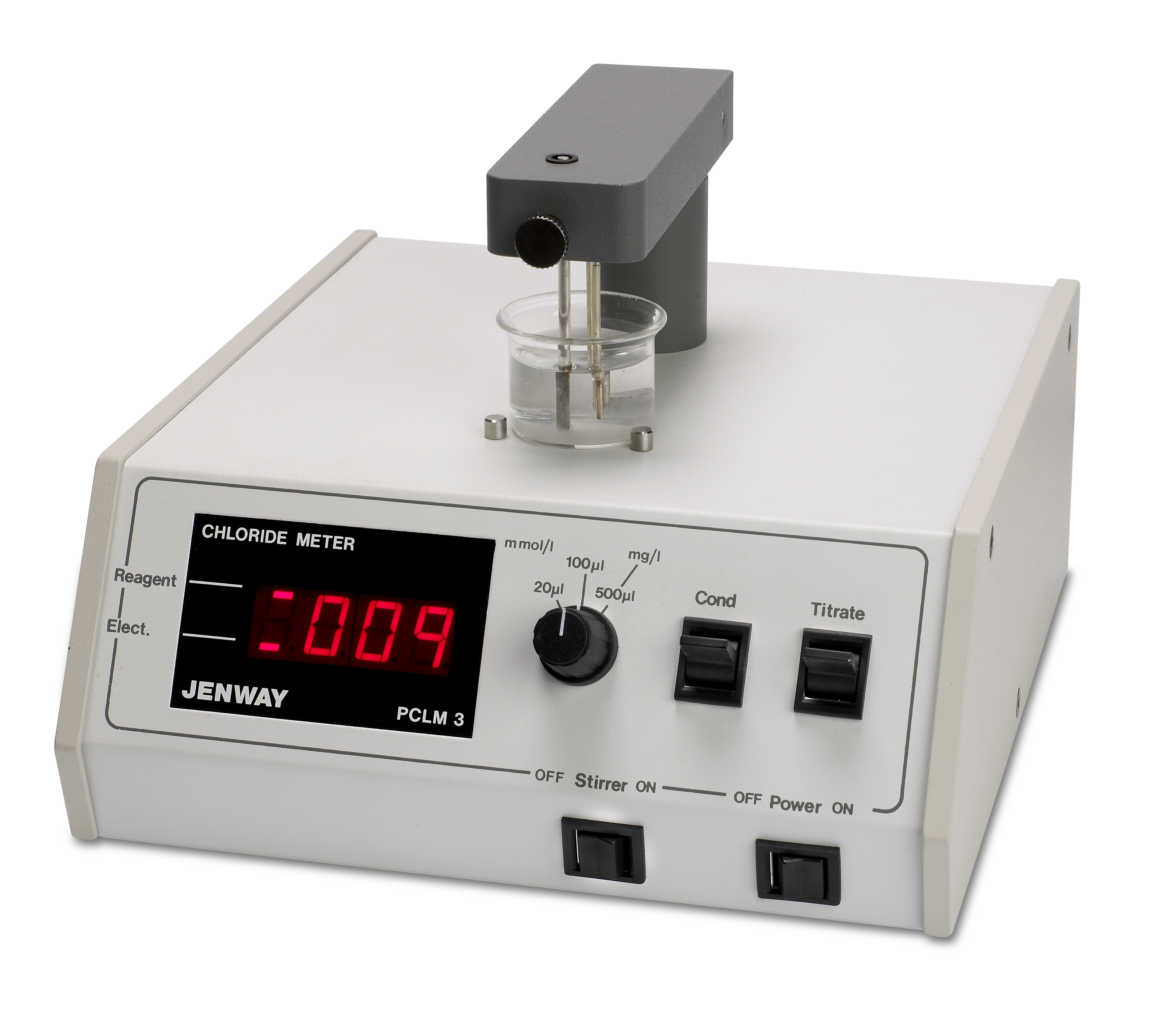

For a larger view, please click on the photo.


Data Sheet
Manual

Ordering Information

504 043 - Model PCLM3 Chloride meter for Medical use, supplied with mains lead, buffer, gelatin, standard solution (025 013), 3 silver electrodes, 2 silver anodes, electrode polish, glass beaker, stirrers, tweezers and operating instructions. For use on 230V/50Hz

504 055 - Model PCLM3 Chloride meter for Medical use, supplied with US line cord, buffer, gelatin, standard solution (025 013), 3 silver electrodes, 2 silver anodes, electrode polish, glass beaker, stirrers, tweezers and operating instructions. For use on 110V/60Hz

504 044 - Model PCLM3 Chloride meter for Industrial use, supplied with mains lead, buffer, gelatin, standard solution (025 014), 3 silver electrodes, 2 silver anodes, electrode polish, glass beaker, stirrers, tweezers and operating instructions. For use on 230V/50Hz

504 057 - Model PCLM3 Chloride meter for Industrial use, supplied with mains lead, buffer, gelatin, standard solution (025 014), 3 silver electrodes, 2 silver anodes, electrode polish, glass beaker, stirrers, tweezers and operating instructions. For use on 110V/60Hz


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
