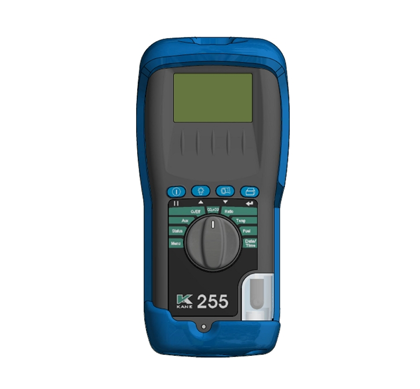

The Kane 255 Combustion Analyser measures carbon dioxide (CO2), carbon monoxide (CO) and flue temperature. It also calculates oxygen (O2), CO/CO2, ratio, losses, combustion efficiency
(Nett, Gross or Condensing) and excess air.
A useful feature for when a CO Alarm is triggered, is that the Kane 255 Combustion Analyserís CO sensor checks CO
levels in ambient air. Reading in ppm or
mg/m3, the CO reading can be referenced to the oxygen.
The Kane 255 is supplied with a flue probe with integral
temperature sensor and also has a protective rubber cover with integral magnet for
The large display shows two readings at a time. An optional infrared printer is also available for which all data can be printed on. The printed data can be 'live' data, 'frozen
data' or stored data. Twenty sets of tests can be stored. Two lines of sixteen
characters can be added to the header of printouts.
The Kane 255 Combustion Analyser is controlled using just four buttons and a
Function Buttons x 4
Battery Charging Indicator
Temp & Pressure Connections
Flue Gas Inlet
