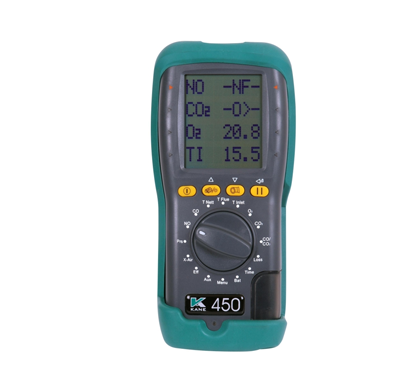

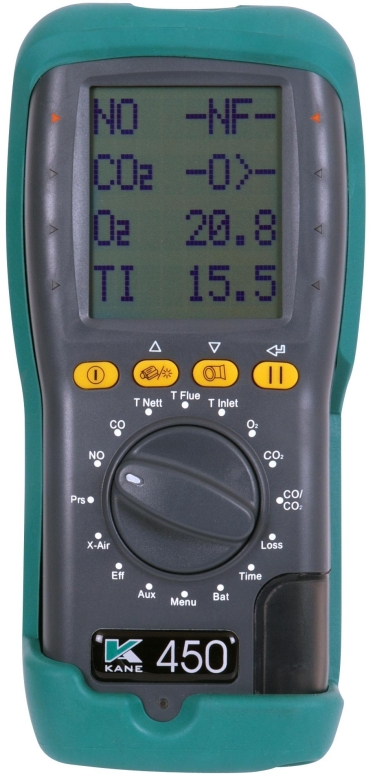

Kane 450 Boiler Analyser


The KANE450 has all the features of a "top of the range" combustion analyser and is controlled by an "easy to use" rotary switch similar to the popular KANE250. Any four parameters can be viewed on the large backlit display. To change a parameter simply select the new one on the dial and press the enter button!

It performs all combustion, pressure, temperatures and CO tests necessary to commission and service condensing and high efficiency boilers. A gas leak detector wand option is also available. Live tests, stored tests or full reports can be printed using an infra-red printer or sent to a laptop or PDA via a Bluetooth option.

An outstanding feature of the KANE450 is the high accuracy and stability of its pressure readings. Difficult tasks like measuring flue draught or setting the differential pressure of air/fuel ratio valves can be performed with confidence. At low pressures it displays to 0.001 mbar and is accurate to +/-0.005 mbar - significantly better than any standard electronic manometer! The excellent stability of readings is particularly important when the analyser performs an automatic "tightness test" sequence.

Battery life is typically 12 hours when fitted with either alkaline or rechargeable NiMH batteries. A 12v in vehicle charger option is available.

Features

  Four line backlit display controlled by rotary switch
  Protective rubber sleeve with integral magnet for "hands free" use
  O2, CO, CO2, CO/CO2 ratio, temperature and efficiency readings
  Multi-fuel (natural gas, propane, butane, LPG, 28/35 sec oils)
  Hold, store and auto-store readings
  Reports include combustion test, tightness test, CO build-up and differential temperature
  Infra-red output to optional printer
  Torch light and backlit display
  Designed to meet BS7967

Optional Extras

  Gas leak detector
  0-4,000 ppm CO sensor with H2 compensation - standard in UK
  0-1,000 ppm or 0-100 ppm NO sensor
  A range of Type K thermocouple probes
  2 psi +/- 160 mbar pressure sensor
  Bluetooth data transfer
  KMIRP infra-red thermal paper printer
  KANE ImPrint infra-red plain paper printer
  NiMH rechargeable batteries
  220v fast charger
  12v in-vehicle charger




Data Sheet
Manual

Kane is now known as Kane International Ltd.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
