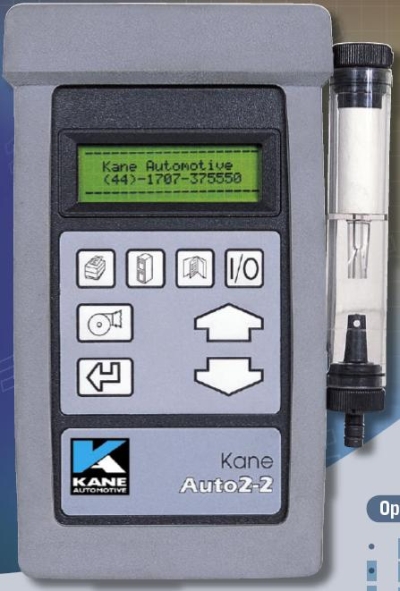

Kane Auto 2-2 Emission Analyser

When time is money, Kane offers the Auto 2-2, a truly portable exhaust gas analyser that sets new standards of convenience and ease of use. It weighs just 1.1 kg, fits comfortably in the hand and can run for 4 hours on its internal rechargeable battery. Take the analyser to the car, not the other way round!

The infra-red sensing system has been designed by our engineering team and is unique to our products.

The four-line display can be backlit. Measurements are shown in real time. Data logging, PC connection or printing via an infra-red printer are all at your fingertips.

With accuracy to OIML Class 2, the Auto 2-2 is suitable for regulated testing, where specified, roadside inspection or engine fault diagnosis and tuning.

The programmed re-calibration procedure makes service easy and reduces maintenance costs.

An automatic leak test can be conducted on every power up. Integral flow checking provides warning of probe blockages.

Take the stress out of measuring gas and make it easy with Kane. After all it is all in your hand!


  Measures Carbon Monoxide and Hydrocarbons (CO and HC)
  Hand held and fully portable - the palmtop of gas analysis
  OIML Class 2 accuracy
  Less than 3 minutes to warm-up, even less to learn how to operate
  Data logging facility
  Long life rechargeable battery, 12v adapter cable and mains adapter
  Complete with protective rubber sleeve, water trap and filter, carry case, battery charger, 12v adapter cable, exhaust probe, spare filters, rpm and oil temperature measurement and multi-lingual manual

Optional Extras

  Infra-red printer
  PC Software
  Oil temperature probe
  RPM clamp

Data Sheet
User Manual

Kane is now known as Kane International Ltd.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
