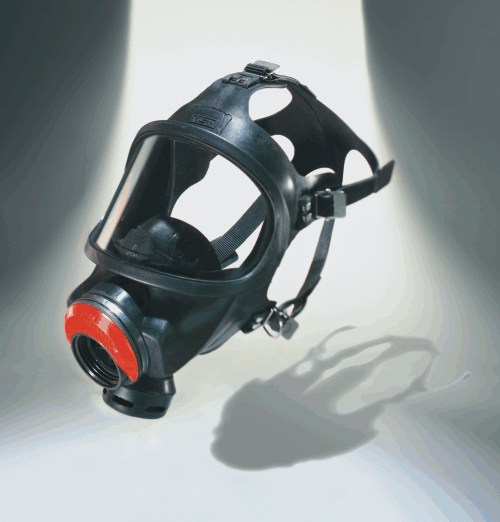

MSA 3S Full Face Mask


The MSA 3S full face mask, the most successful mask design in the world with over 5 millions units sold, has been upgraded. It offers even more user comfort and value, without changing the 3S Classic style! A softer face seal, enlarged harness attachment areas, a deeper chin cup combined with the proven classic design, the MSA 3S improves its efficiency whilst remaining one of the users favourite full face masks.

[1. The Face Blank] is made of a special rubber compound, softer and more comfortable than ever. It is not affected by creams or lotions. The wide sealing frame and a deeper chin stop assure a snug, comfortable fit and a tight seal. The 3S face blank is also available in yellow silicone [these versions are not affected by the upgrade], which does not irritate the skin and is particularly resistant to ageing. Some versions of the MSA 3S are also available in small size.

[2. The Lens] moulded from impact resistant plastic [polycarbonate], is securely sandwiched between a groove in the face blank with a 2-part plastic lens ring. The large field of vision is another safety feature of the mask. Some lenses are also available in silicate coated glass [V] or Triplex glass [Vg].

[3. The Connector] is clamped into the face blank. It contains the threaded connection or the plug connection, the inhalation valve and the speech diaphragm. The speech diaphragm permits excellent communication.

[4. The Exhalation Valve] is located in the lowest point of the face mask. Its large cross section results in a low exhalation resistance. Valve disc and valve cover are easily replaceable.

[5. The Harness] enables quick donning and removal of the face mask without prior adjustment. A pressure-free fit is achieved also in combination with a protective helmet. With the carrying strap, the 3S can be carried in front of the chest, ready for use. Now, with the enlarged tabs of the f ace blank, the MSA 3S harness is even easier to don.

[6. The Inner Mask] provides an optimal air flow and keeps the lens free from fogging. It reduces the dead space effectively. The rolled edge cares for a soft and comfortable contact with the face.


Approvals & Standards

  EN 136 class 3

Hazards

  Chemical Splash
  Fire
  Nuisance Odor
  Particles & Dust
  Smoke
  Toxic Atmosphere (Non-IDLH)

Applications

  Asbestos Abatement
  Chemical
  Fire Fighting
  Foundries & Metal Production
  Government
  Hazardous Materials
  Mining
  Nuclear Industry
  Oil & Gas
  Paper & Pulp
  Power Plants & Electricity
  Waste & Water Treatment
  Welding

Part Numbers

  D2055000 3S
  D2055779 3S small
  D2055718 3S Silicone
  D2055767 3S-EZ


Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
