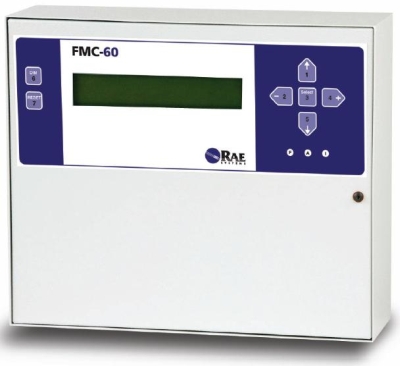

RAE Systems FMC-60


Multi channel controller


The FMC-60 has been designed to operate in the full range of environments from commercial premises through to heavy industrial applications which may require hazardous area sensing.

The FMC-60 system operates on a 4 core (addressable) or 2/3 core (direct) cable network and has the capacity to monitor up to 64 addressable and 16 direct sensors of various gas types.

Key Features

  Up to 64 addressable sensors
  1-16 direct 4~20mA sensors - 2/3 wire
  Either or both types of sensors
  Single 4 core sensor network (addressable)
  Parameter set up via pc or front panel
  On screen text description of sensor locations
  3 alarm levels
  Event - data logging - internal 99 event
  Low cost installation
  Repeater panel - option
  64 Additional relays - option
  Continuous data logging via pc - option
  Addressable relay board - option
  One man calibration utilising peak readings
  Automatic safety check diagnostics/system surveillance
  Combi Plus, up to 128 addressable sensors per panel



Operation

Each gas sensor continuously monitors the atmosphere, reporting any hazardous conditions to the control unit, for display by the alpha numeric screen indicating the reporting sensor, gas type, concentration and alarm status.

Alarm levels that are exceeded will automatically activate a variety of signal outputs including analogue/digital data and user selectable relays.


Data Sheet
Manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
