RAE Systems MiniRAE 3000

RAE Systems MiniRAE 3000

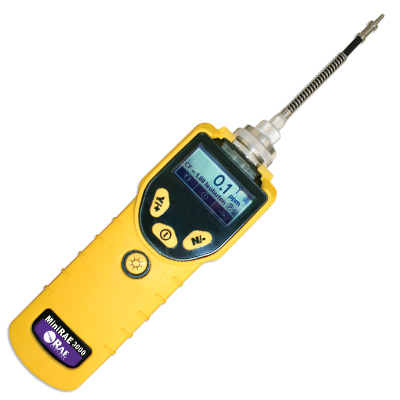

The MiniRAE 3000 is the most advanced handheld volatile organic compound (VOC) monitor on the market. Its photoionization detector's (PID) extended range of 0 to 15,000 ppm makes it an ideal instrument for applications from industrial hygiene to leak detection and HazMat.

MiniRAE 3000 PGM-7320 Key Features:

  • Proven PID technology. The patented sensor provides the following unique features 3-second response time, extended range up to 15,000 ppm with improved linearity and humidity compensation with integral humidity and temperature sensors
  • Real-time wireless data transmission with built-in RF modem or Bluetooth
  • Designed for simple service. Easy access to lamp and sensor in seconds without tools
  • Big graphic display for easy overview of gas type, Correction Factor and concentration
  • Field-interchangeable battery pack replaced in seconds without tools
  • Integrated flashlight for better view in dark conditions
  • User-friendly screens, including dataplot chart view
  • Integrated RAE Systems Correction Factors list for more than 200 compounds to measure more chemicals than any other PID
  • Multi-language support with 12 languages encoded
  • Rugged housing withstands use in harsh environments. IP67 waterproof design for easy cleaning and decontamination in water and strong protective removable rubber boot
Get a Quote
RAE Systems

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The RF modem allows real-time data transmissions with a base controller located up to 500 feet away from the MiniRAE 3000 (or two miles with optional RAELink3 portable modem). A personal computer can be used as the base station for a MiniRAE 3000 system. The standard ProRAE Remote software is capable of monitoring the input of up to 64 remotely located monitors, including MiniRAE 3000, AreaRAE, etc.

  •  View real-time sensor data and alarm status at headquarters or command center
  • Automatic lamp type recognition
  • Duty-cycling™ lamp and sensor autocleaning technology
  • Tough, flexible inlet Flexi-Probe™
  • 3 large keys operable with 3 layers of gloves
  • Strong, built-in sample pump draws up to 100 feet (30m) horizontally or vertically
  • Loud, 95dB audible alarm
  • Bright red flashing visual alarm
  • Interchangeable drop-In lithium-ion and alkaline battery packs
  • Charging cradle doubles as an external battery charger
  • Compatible with AutoRAE™ calibration station
  • ProRAE Remote software simultaneously controls and displays readings for up to 64 remote detectors
  • License-free, ISM band RF transmission with communication range up to 500 feet (2 miles with optional RAELink3 modem)
  • Optional RAELink3 modem provides GPS capability to track and display readings from remote detectors and provide up to 2 miles long-distance transmission
  • Datalogging with up to 6 months of data at one-minute intervals
  • 3-year 10.6eV lamp warranty
