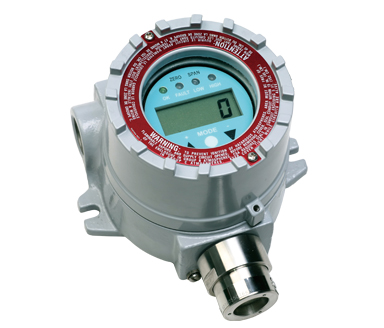

RAE Systems RAEGuard LEL


Fixed Combustible Gas Monitor, 4-20 mA transmitter


The RAEGuard LEL is a permanently mounted (fixed) catalytic bead combustible gas transmitter that operates from 9 to 36 VDC power source and provides a 4-20mA analog output in the range of 0-100%LEL combustible gas.

The microprocessor based circuit is housed in an explosion-proof enclosure, the RAEGuard LEL is equipped with a local digital display of the gas concentration and function keys for performing calibration.

The RAEGuard LEL is operated with a standard 4-20mA controller or as a stand-alone sensor module.

Key Features

  Highly poison-resistant catalytic bead combustible gas LEL sensor
  4-20mA analog output of 0-100%LEL combustible gas including methane, acetylene, propane or other combustible gases
  Explosion-proof enclosure for hazardous environment application
  Magnetic key interface eliminates need to open explosion-proof housing when making calibration or other minor adjustments
  Operation at 9 to 36 VDC
  Dry contact output (<30V, 2A)



Applications

  Refineries
  Oil production
  Chemical plants
  Industrial safety
  Shipyard and maritime
  Power plants
  Steel mills


Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
