Scott Safety 7400 Plus Controller



  Centralised Graphic Display and Alarm Controller
  Seamless Upgrade for Current Loop and Direct Catalytic Bead Detectors
  MODBUS Interfacing and Output Relay Options for Any Environment
  Compatibility with Scott Safety's Full Array of Gas Detection Transmitters and Detectors
  Hazardous Location Approval for Class I, Division 2 Applications

THE SCOTT SAFETY 7400 PLUS AND 7400 PLUS CONTROLLERS are designed to provide simultaneous display and alarm functions for up to four monitored variables. A graphic LCD displays monitored data as bar graphs and engineering units. Three adjustable alarm levels are provided per channel. Relay outputs allow control of beacons, horns and other alarm events.

The controllers are easy to configure and are user friendly. Measurement ranges in engineering units, adjustable alarm set-points, optional serial interfaces and many other features offer flexibility to meet most demanding applications.

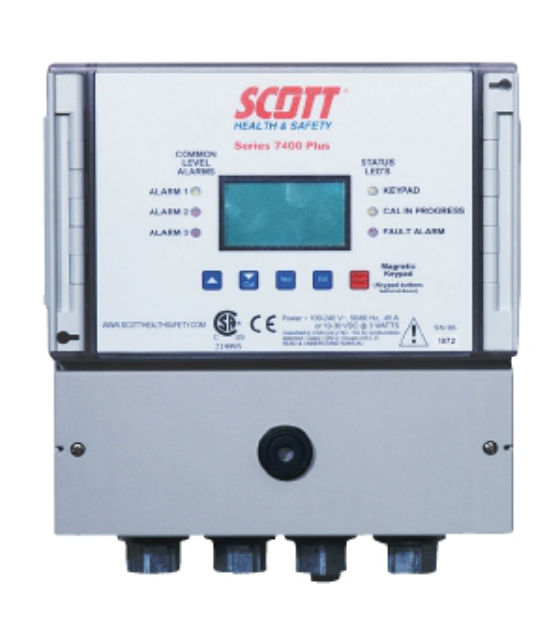

7400 Plus Controller

The controllers utilise NEMA 4X rated enclosures and are CSA certified to CSA C22.2 No. 152 for combustible detection and Class I, Division 2, Groups A, B, C and D hazardous locations. An optional RS-485 MODBUS® slave port allows up to 128 controllers to be multidropped onto a single data highway for interrogation by another MODBUS master.

DOWNLOADS


Datasheet

Ordering Information


Complete NEMA 4 7400 Plus Controller

093-0463 NEMA 4X 4 Channel Base Unit
093-0455 4 Channel Direct Cat Bead Input* and Discrete Relays(8)
093-0456 4 Channel Direct Cat Bead Input *
093-0457 4 Channel 4-20ma Input and Discrete Relays(8)
093-0458 4 Channel 4-20ma Input
093-0618 7400 Plus - 4 Channel, NEMA 4X, Direct Catbead Input Board, CSA approved
093-0619 7400 Plus - 4 Channel, NEMA 4X, 4-20 mA Input Board, CSA approved

Note: RS 485 output optional

Complete NEMA 7 7400 Plus Controller

093-0464 NEMA 7 4 Channel Base Unit
093-0459 4 Channel Direct Cat Bead Input* and Discrete Relays(6)
093-0460 4 Channel Direct Cat Bead Input*
093-0461 4 Channel 4-20ma Input and Discrete Relays(6)
093-0462 4 Channel 4-20ma Input

*Jumper option allows for 4-20 ma input

Transmitter power requirements must be <12 watts.

7400 Plus Controller Optional Parts

093-0435 Discrete Alarm Relay Board (6, 5A Form C Relays)
093-0438 RS-232 / RS-485 MODBUS RTU Addressable Interface
093-0465 QUAD Quad Channel 4-20mA Input
093-0466 QUAD Catbead Sensor Input
093-0467 QUAD Channel 4-20mA Output
093-0518 Red Class 1 Div 2 Strobe Light
093-0439 100dB Piezo Audible Alarm

7400 Plus Controller 24 VDC Power Supplies

093-0468 50 Watt NEMA 4X DIV 2 Power Supply
093-0469 50 Watt NEMA 7 DIV 1 Power Supply
093-0538 CPU/Display PCB



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
