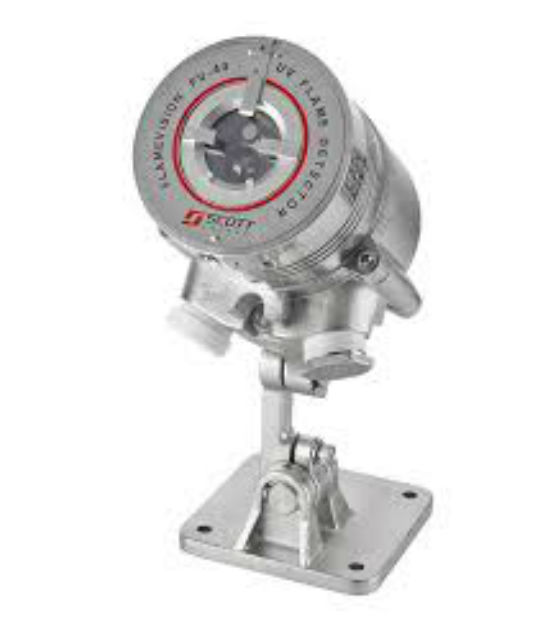

Scott Safety FLAMEVision FV-40 Series Flame Detectors



  Long range and wide field of view reduce the number of units required 316L stainless or aluminum housings for long life and durability
  Fully adjustable 316L stainless steel mounts included for flexible installation
  Fast responses (5 seconds or less) mean quick alerts to hazards
  Low maintenance requirements save time and money
  Easily connect to your existing systems
  User-programmable functions allow for customization to meet individual needs
  Scott reliability and 5-year warranty provide peace of mind

The Scott Safety FLAMEVision FV-40 Series Flame Detectors are a portfolio of smart, flexible flame detection solutions designed to sense multiple types of flame and operate reliably even in the harshest environments. The FV-40 Series meets the needs of multiple industries and environments where the presence of flame poses a hazard

A WIDE RANGE OF DETECTOR TYPES TO BEST SUIT A WIDE RANGE OF APPLICATIONS

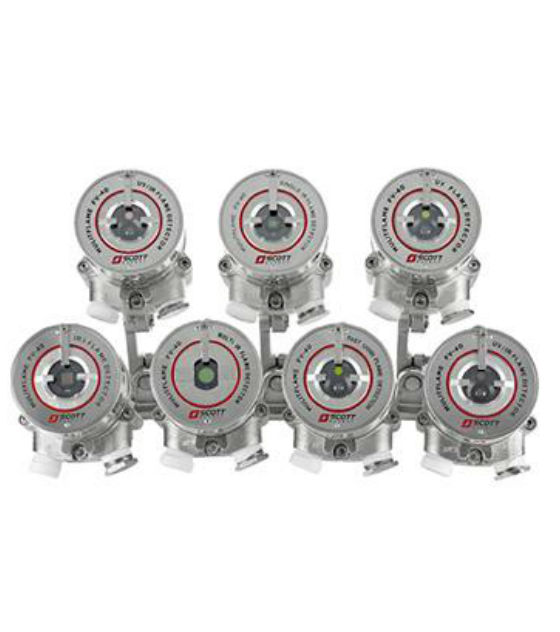

Depending on the application and the types of flames most likely to be encountered in a facility, personnel can choose from a wide range of detector offerings to meet the facility’s detection needs. Detectors include Single IR, Triple IR (IR3), Multi IR, UV, UV/IR2.5µm, UV/IR4.5µm and Ultra-Fast UV/IR detectors. As an additional option, detectors can be ordered with or without built-in test (BIT) capability.

THE LATEST TECHNOLOGY AND INSTALLATION OPTIONS FOR THE BEST DETECTION

The FV-40 Series includes the latest technology for the best detection and resistance to false alarms, while keeping budgets in mind. All units feature heated sensor windows to eliminate condensation and icing, sensitivity selection, multiple regulatory approvals and flexible communication options, including 3-color LED, 0-20mA, HART® Protocols, RS-485 and MODBUS®. Three built-in relays also provide triggering of external systems.

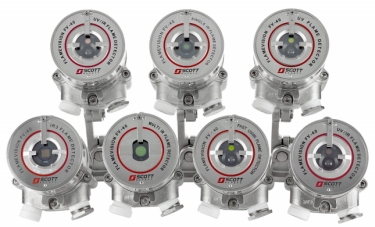

FLAMEVision FV-40 Series Flame Detectors

HANDLE CHALLENGING ENVIRONMENTS WITH EASE

Robustly designed to handle tough work environments, FV-40 Flame Detectors showcase long-life and high-reliability features. An FV-40 can be ordered with aluminum or 316L stainless steel casings/mounts and all circuit boards are epoxy-coated for protection. All units meet MIL-C-810C standards for humidity, salt, fog, vibration, mechanical shock and temperature extremes, while the housings meet IP66, IP67 and NEMA 250 6P water and dust egress standards. The SIL-2 approval per IEC61508 is a final statement in reliability.

RELIABILITY AND QUALITY SERVICE PROTECT THE MOST VALUABLE ASSETS

For over 80 years, Scott Safety has built a strong reputation for innovation and high reliability. These same qualities are evident in the development and success of the Scott Safety line of gas and flame detection.

DOWNLOADS


Datasheet

Ordering Information


Mounting Accessories

093-0543 FV-40 Tilt Mount (Included with each detector, for replacement only)
093-0566 FV-40 Pole Mount 2" dia
093-0567 FV-40 Pole Mount 3" dia
093-0552 FV-40 Weather Protection Assembly (Shields flame detector from the elements (sun, rain snow)
093-0548 FV-40 Air Shield Assembly (Utilize low pressure air to keep lens clean in high dust environments)

Commissioning and Flame Simulation Tools

093-0549 FV-40 Laser (Pointer) Aimer**
380114-1 Triple IR Flame Simulator Kit
380114-2 UV/IR Flame Simulator Kit
380114-3 Single IR Flame Simulator Kit
380114-4 Multi IR Flame Simulator Kit

* ATEX approved for use in hazardous locations

Programming Tool

093-0565 FV-40 PC Programming software and Interface (required for reprogramming and adjusting addresses on modbus systems)



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
