Scott Safety Flite Airline Breathing Apparatus

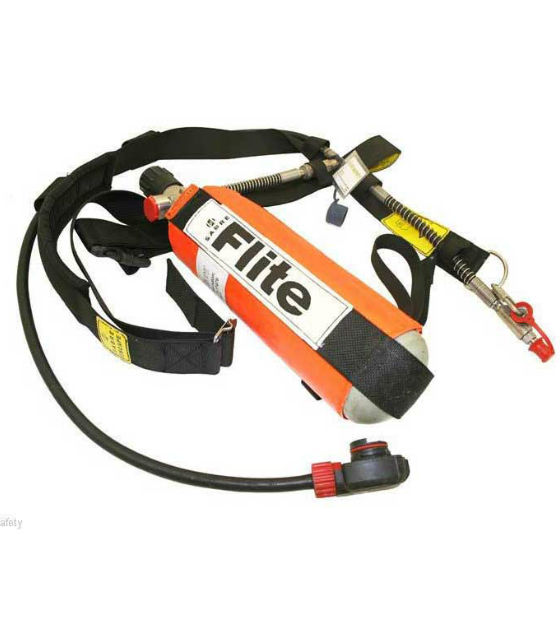

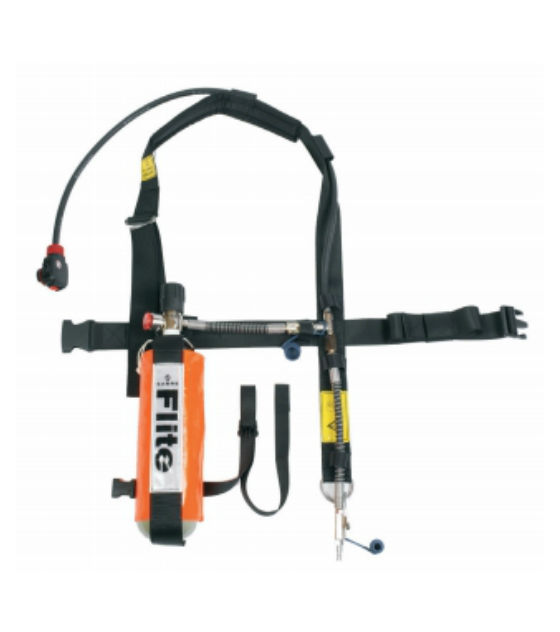

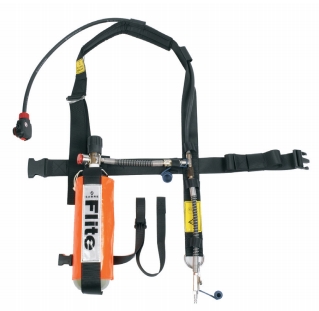

The Sabre FLITE is an open circuit, positive pressure airline breathing apparatus generally comprising; bandolier harness, positive pressure airline apparatus consisting automatic positive pressure demand valve; supply hose and coupling for airline supply hose. An additional coupling allows the connection of an emergency air supply cylinder which provides an independent air supply with a duration of 10 to 15 minutes, dependant on cylinder size. The apparatus can be used with the full range of Sabre positive pressure facemasks as well as the Sprint positive pressure hood when used as an escape only apparatus.

APPLICATIONS

The FLITE is specifically designed as an airline working set and with its optional hip mounted cylinder as an airline escape set, it has many applications but is particularly suited to confined space entry and the oil and gas industry. It is also suitable for providing respiratory protection in any IDLH environment.

AIRLINE CONNECTION

The airline coupling is a male CEN type and is mounted on a swivelled pigtail assembly. It also incorporates a non-return valve so air from an attached cylinder can not escape when the apparatus is detached from the airline supply. Optional Foster, Hansen HK and Staubli type fittings are available.

Flite Airline Breathing Apparatus

MAINTENANCE/CLEANING/SERVICING

N.B. - Cleaning should only be carried out as specified in the user instructions. Maintenance and servicing must only be performed by trained personnel following the procedures in the Service and Maintenance manual. The ACS backplate is designed to be washed in a washing machine, please follow instruction on the care label.

DOWNLOADS


Datasheet

Ordering Information


1047792 FLITE
Airline breathing apparatus comprising Tempest automatic positive pressure demand valve, supply hose and pigtail with CEN coupling, bandolier harness and facility to connect escape cylinder.
Apparatus weight 1.9kg

1047801 FLITE-FOST
Airline breathing apparatus comprising Tempest automatic positive pressure demand valve, supply hose and pigtail with Foster/Hansen Mil spec male coupling, bandolier harness and facility to connect escape cylinder.
Apparatus weight 1.9kg

2001434 FLITE-HANSENHK
Airline breathing apparatus comprising Tempest automatic positive pressure demand valve, supply hose and pigtail with Hansen HK spec male coupling, bandolier harness and facility to connect escape cylinder.
Apparatus weight 1.9kg

2018438 FLITE-STAUBLI
Airline breathing apparatus comprising Tempest automatic positive pressure demand valve, supply hose and pigtail with Staubli spec male coupling, bandolier harness and facility to connect escape cylinder.
Apparatus weight 1.9kg

FLITE CYLINDERS

1045945 CYL-FLITE-10 Full
2006648 CYL-FLITE-10 Empty
1045954 CYL-FLITE-15 Full
2006650 CYL-FLITE-15 Empty
1045969 CYL-FLITE-SL Full
2006651 CYL-FLITE-SL Empty

ADDITIONAL EQUIPMENT

1024175 038.243.99 Spare cylinder pouch for CYL-FLITE-10 & CYL-FLITE-SL.
1024173 038.243.96 Spare cylinder pouch for CYL-FLITE-15.
2010722 2010722 Flite fast fill adaptor
1034988 084.213.00 User instruction manual.
1034745 084.059.01 Breathing apparatus log book - Industrial version.
1035996 089.386.00 Testkit and toolkit.
1035997 089.386.01 FLITE Testkit only.
1034008 074.293.00 Toolkit only.
2004229 018.008.99 Charging adaptor handwheel and liner to suit 207 bar EN144-2 cylinder valves. 1/4 BSP male thread
1017527 010.125.00 Injection moulded storage/carrying case. Shock proof and water resistant. Dimensions: 510 x 430 x 210mm



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
