3M Scott Safety ModulairMax Large Capacity Airline Trolley System

The 3M Scott Safety ModulairMax is a high capacity airline trolley system, approved to supply air with lengths of airline hose upto 105 metres.

Key Features

  • Provides air for upto 4 simultanious users
  • Suitable for 2 x 45 litre cylinders or 2 x 50 litre cylinders
  • Fitted with 4 man pneumatics and a hose reel
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

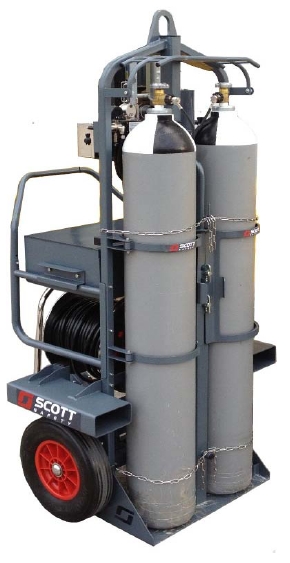

Built to be compatiable with 2 x 45 litre cylinders giving 24,500 litres of air or 2 x 50 litre cylinders giving 27,000 litres of air, the system is capable of suppling in excess of 10 man hours of breathing air.

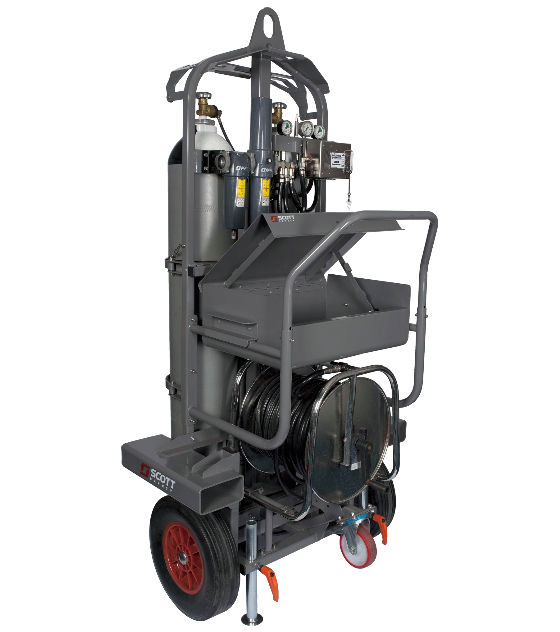

The standard unit is fitted with 4 man pneumatics and a hose reel, telescopic support struts, 2 position cylinder valve guard, 3rd wheel for support whilst moving the trolley and a lifting eye allowing the unit to be hoisted by a crane

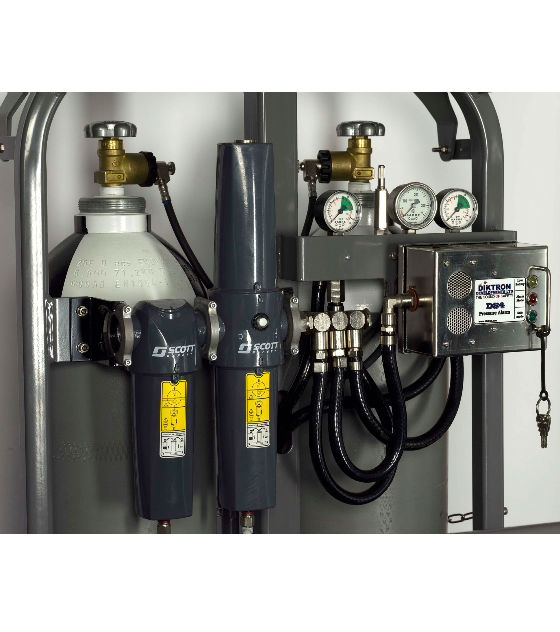

Options include AFU for filtering an external air supply, a DS4 electronic low air alarm to signal if that external air supply is failing and forklift brackets to enable easily loading of the unit.

A lockable storage box is also available that will take tools or an airline BA set and can be easily fitted to the unit.

REDUCING VALVE

First stage pressure reducing valve featuring non-adjustable, spring-loaded piston mechanism and outlet supply protected by pressure relief valve. Valve body and cap machined from nickel-plated brass with stainless steel spring and hose retainer U-clips.

PRESSURE INDICATOR & WARNING WHISTLE

Bourdon tube type dial indicator
Heat and Impact resistant polycarbonate lens
Safety blow-out vent in rear of gauge
Accuracy:- +/- 10 bar between 40-300 bar

HOSES

Stainless steel swivel hose fittings

CYLINDER FRAME UNITS
  • 2026831 MM ModulairMax Trolley unit for 2x50 litre cylinders, supplied with 4 man pneumatics, hose reel and lifting eye. High pressure pneumatic system with 55 bar whistle, 200/300 bar cylinder connectors and CEN outlet couplings for up to 4 man use.

  • 2026830 MM-AFU ModulairMax Trolley unit for 2x50 litre cylinders, supplied with 4 man pneumatics, hose reel and lifting eye. High pressure pneumatic system with 55 bar whistle, 200/300 bar cylinder connectors and CEN outlet couplings for up to 4 man use. Fitted with 4 man airline filter unit for external air supply.

  • 2026829 MM-AFU-DS4 ModulairMax Trolley unit for 2x50 litre cylinders, supplied with 4 man pneumatics, hose reel and lifting eye. High pressure pneumatic system with 55 bar whistle, 200/300 bar cylinder connectors and CEN outlet couplings for up to 4 man use. Fitted with 4 man airline filter unit and electronic DS4 low pressure warning system for external air supply.

  • 2026828 MM-FL ModulairMax Trolley unit for 2x50 litre cylinders, supplied with 4 man pneumatics, hose reel and lifting eye. High pressure pneumatic system with 55 bar whistle, 200/300 bar cylinder connectors and CEN outlet couplings for up to 4 man use. Brackets installed on frame to allow lifting via a forklift truck

  • 2026827 MM-AFU-FL ModulairMax Trolley unit for 2x50 litre cylinders, supplied with 4 man pneumatics, hose reel and lifting eye. High pressure pneumatic system with 55 bar whistle, 200/300 bar cylinder connectors and CEN outlet couplings for up to 4 man use. Fitted with 4 man airline filter unit for external air supply. Brackets installed on frame to allow lifting via a forklift truck

  • 2026534 MM-AFU-DS4-FL ModulairMax Trolley unit for 2x50 litre cylinders, supplied with 4 man pneumatics, hose reel and lifting eye. High pressure pneumatic system with 55 bar whistle, 200/300 bar cylinder connectors and CEN outlet couplings for up to 4 man use. Fitted with 4 man airline filter unit and electronic DS4 low pressure warning system for external air supply. Brackets installed on frame to allow lifting via a forklift truck

ADDITIONAL EQUIPMENT
  • 2026591 Tool Box Lockable storage box that can be attached to the above trolleys without the use of tools

  • 2027158 CYL-50L-EMPTY 50 litre 300 bar cylinder providing 13500 litres of free air (only supplied empty)
