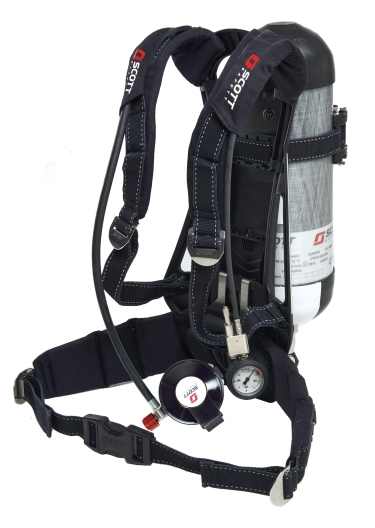

Scott Safety ProPak-F-EZ-FLO Self Contained Breathing Apparatus



The Scott Safety ProPak-F-EZ-FLO is a Type 2 open circuit, self-contained, compressed air breathing apparatus. It consists of a back plate, padded carrying harness and pneumatic system, containing a cylinder connector, reducer, pressure gauge, whistle and demand valve.

The ProPak-F-EZ-FLO can be configured in a number of different ways with various size single cylinders. There are also a range of variants available including Airline (AC), Split Demand Valve Coupling (SDC or Y2C), Quick Connect Option or Duo variants.

The ProPak-F-EZ-FLO is used in conjunction with AV3000HT facemask and a choice of composite or steel cylinders.

APPLICATIONS

The ProPak-F-EZ-FLO is specifically designed as a professional fire fighting SCBA, but is also suitable for providing respiratory protection in any IDLH environment.


Datasheet
ProPak Range


Ordering Information


ProPak-f-EZ-Flo

2031958 PROPAK-f-EZ-Flo (V2) Self contained breathing apparatus for single cylinder use, comprising lightweight rigid backplate with cylinder band and fully adjustable padded body harness. Two stage pneumatic system comprising EZ-Flo positive pressure demand valve with bypass: shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with single high pressure 200/300 bar cylinder connector. Harness fabricated from Kevlar and Pyrogard blend webbing and Proban material and apparatus features lumbar padding. Webbing contains reflective thread. Apparatus is CE Marked to EN137:2006 Type 2 Apparatus supplied less facemask, please order AV3000HT facemask seperately.

2031960 PROPAK-f-EZ-Flo- AC (V2) ProPak-f-EZ-Flo fitted with Airline attachment*
2031961 PROPAK-f-EZ-Flo- SDC (V2) ProPak-f-EZ-Flo fitted with Split demand valve
2031962 PROPAK-f-EZ-Flo- SDC-AC (V2) ProPak-f-EZ-Flo fitted with Split demand valve and Airline attachment*
2027472 PROPAK-f-EZFloY2C (V2) ProPak-f-EZ-Flo fitted with Y-piece (2 CEN socket) in demand valve hose

ProPak-f-EZ-Flo CBRN

2031949 PROPAK-f-EZ-Flo- CBRN (V2) Self contained breathing apparatus for single cylinder use, comprising lightweight rigid backplate with cylinder band and fully adjustable padded body harness. Two stage pneumatic system comprising EZ-Flo positive pressure demand valve with bypass: shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with single high pressure 200/300 bar cylinder connector. Harness fabricated from Kevlar and Pyrogard blend webbing and Proban material and apparatus features lumbar padding. Webbing contains reflective thread. Apparatus is CE Marked to EN137:2006 Type 2 and BS8468-1 Apparatus supplied less facemask, please order AV3000HT facemask seperately.

2031951 PROPAK-f-EZ-Flo- AC-CBRN (V2) ProPak-f-EZ-Flo-CBRN fitted with Airline attachment*
2031952 PROPAK-f-EZ-Flo- SDC-CBRN(V2) ProPak-f-EZ-Flo-CBRN fitted with Split demand valve
2031953 PROPAK-f-EZ-Flo- SDC-AC-CBRN (V2) ProPak-f-EZ-Flo-CBRN fitted with Split demand valve and Airline attachment*
2031956 PROPAK-f-EZ-Flo- Y2C-CBRN (V2) ProPak-f-EZ-Flo-CBRN fitted with Y-piece (2 CEN socket) in demand valve hose

* Please note the airline attachment has both air in and air out functionality so therefore serves as both an RSM and decontamination attachment as well as Airline.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
